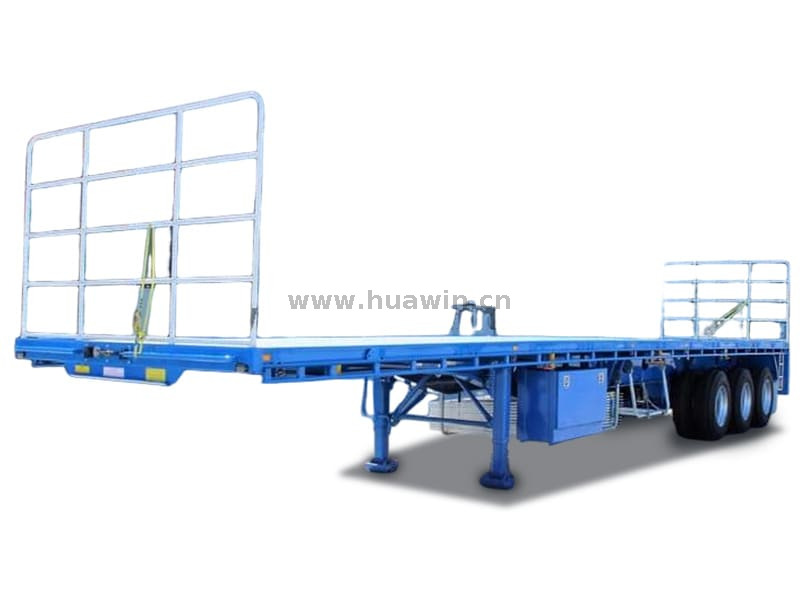

Made in China 3 Axles Flatbed Semi Trailer for Australia

Payload

35,000kg

Tare weight

7200kgs

Trailer dimension

Trailer length 12400mm, trailer deck height subject to final drawing

Main  Frame

Special design I beam for front frame and rear frame

Floor

Steel Sheet 5mm thickness checker floor

Axle

FUWA (KH) 11.5T axle ADR certified, with auto adjustor arm

Suspension

FUWA (KH) Air bag system ADR certified

King Pin

One unit of 2” bolt in kingpin, JOST brand, double kingpin plate

Landing Gear

Two-speed ,manual operation, heavy duty landing gear, JOST brand

Tire

13 units 11R22.5 tire, including 1 unit spare tire, 1 spare tire carrier.

Steel wheel rim 8.25-22.5

ABS

WABCO ABS

Twist locks

12pcs twist locks, suitable for 20ft, 40ft, 45ft container transport

Pneumatic Braking System

One units of WABCO RE 4 relay valve; T30,T30/30 chamber;

reliable local brand 40L air tank;

Electrical  System

One unit of 24V 7 pin ISO socket; LED light, two sets of rear light; With side light, side reflector, and rear reflector. ADR certified.

Painting

Sand blasting before painting; One coat of primer, anti-corrosion;

Two coats of finish painting; Color advised by client.

Accessory

One tool box
