Heavy Duty 4 Axle Lowbed Semi Trailer

Basic Info：

Color：Optional Logo：Can be customized as your request

Origin：China Package：Nude

Factory price with trusted quality


Availability:



Inquire

Model:
ZZ
Brand:
Huawin

Lowbed semi trailer semi trailer heavy duty trailer Machinery Transport SINOTRUK brand self loader

PRODUCT CATEGORY

Product Description

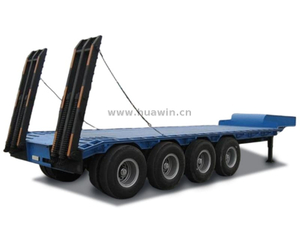

Heavy Duty 4 Axle Lowbed Semi Trailer

4 axle low bed

Specifications:

DIMENSIONS
Tare Weight	13000-16000 kg
Overall Length	12000-18000 mm
Overall Width	3000-4000 mm
Payload	60000-90000 kg
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm.
Axle	2-line 4-axle
Axle	12/13/14/15/16 ton axle available
Suspension	Heavy duty mechanical suspension
Floor	3-6 mm checker plate
King Pin	JOST brand 3.5" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	5.5-15,8.25-22.5, 9.0-22.5, wheel rim 16 pieces
Tire	8.25R15, 295/80R22.5,11R22.5 tire, 16 pieces
Ramp	Mechanical /hydraulic ramp
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

Product Description

WARRANTY

1. Twelve months quality guarantee for three key parts axles, engine and transmission or within
100,000km, which comes first for on road trucks(tractor trucks, cargo trucks, etc. Six months quality guarantee for three key parts axles, engine and transmission or within 50,000km, which comes first for off road trucks(dump trucks, concrete mixer truck, etc).
2. Six months quality guarantee for three key parts axles, beam and landing gear or within
50,000km, which comes first for trailers.
3. Other spare part could be supplied by OEM at cost prices.
4. Regularly callback to know the vehicle's working status
5. The overseas engineers are always ready to deal with unexpected needs.
