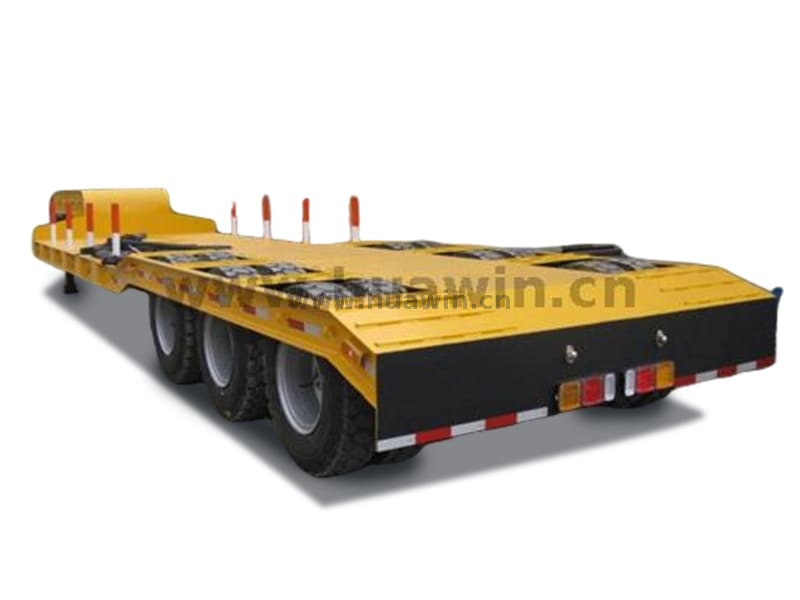

High Quality Sinotruk 60 Ton Lowbed Semi Trailer

Basic Info：

Color：Optional Logo：Can be customized as your request

Origin：China Package：Nude

Factory price with trusted quality


Availability:



Inquire

Model:
ZZ
Brand:
Huawin

Lowbed semi trailer semi trailer Machinery Transport Trailer self loader Sinotruk HOWO Factory price

PRODUCT CATEGORY

Product Description

High Quality Sinotruk 60 Ton Lowbed Semi Trailer

Specifications:

DIMENSIONS
Tare Weight		9000-13000 kg
Overall Length		12000-17000 mm
Overall Width		3000-4000 mm
Payload		40000-60000 kg
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm.
Axle	3 axles
	BPW/FUWA/HJ 12/13/14/15/16 ton axles
Suspension	Heavy duty air/mechanical suspension
Floor	3-6 mm checker plate
King Pin	JOST brand 2" or 3.5" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	5.5-15,8.25-22.5, 9.0-22.5, wheel rim 12 pieces
Tire	8.25R15, 295/80R22.5,11R22.5 tire, 12 pieces
Ramp	Mechanical /hydraulic ramp
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

Product Description

WARRANTY

1. Twelve months quality guarantee for three key parts axles, engine and transmission or within
100,000km, which comes first for on road trucks(tractor trucks, cargo trucks, etc. Six months quality guarantee for three key parts axles, engine and transmission or within 50,000km, which comes first for off road trucks(dump trucks, concrete mixer truck, etc).
2. Six months quality guarantee for three key parts axles, beam and landing gear or within
50,000km, which comes first for trailers.
3. Other spare part could be supplied by OEM at cost prices.
4. Regularly callback to know the vehicle's working status
5. The overseas engineers are always ready to deal with unexpected needs.
