2/3/4 Axles 50/60/80/100 Tons Lowbed Heavy Duty Semi Trailer

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • ZZ
  • Huawin

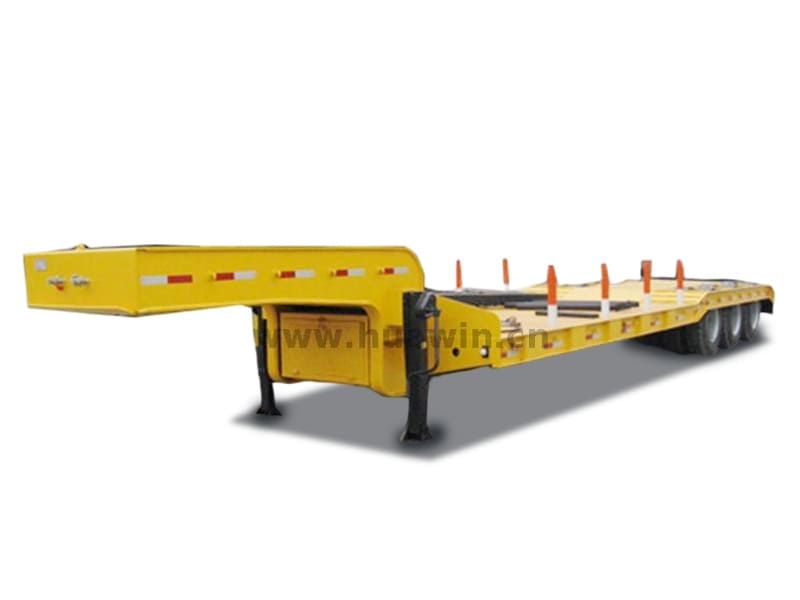

2/3/4 Axles 50/60/80/100 Tons Lowbed Heavy Duty Semi Trailer

IMG_0047

Specifications:

DIMENSIONS
Tare  Weight 11500kg
Overall  Length 11700mm
Overall  Width 2480mm
Payload 50000kg
Work deck length:    8000mm
Work deck Height: 1100mm
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam& Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm.
Axle 3 axles

BPW/ FUWA/HJ/L1 Brand 12 ton
Suspension Heavy duty mechanical slung suspension
Floor 3mm checker plate
Leaf Spring 8 piece Leaf spring
King Pin JOST brand 2" Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 8.25-22.5 wheel rim  13 pieces
Tire 11R22.5 tire with one spare tire , 13 pieces
Ramp Mechanical ramp with spring
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
