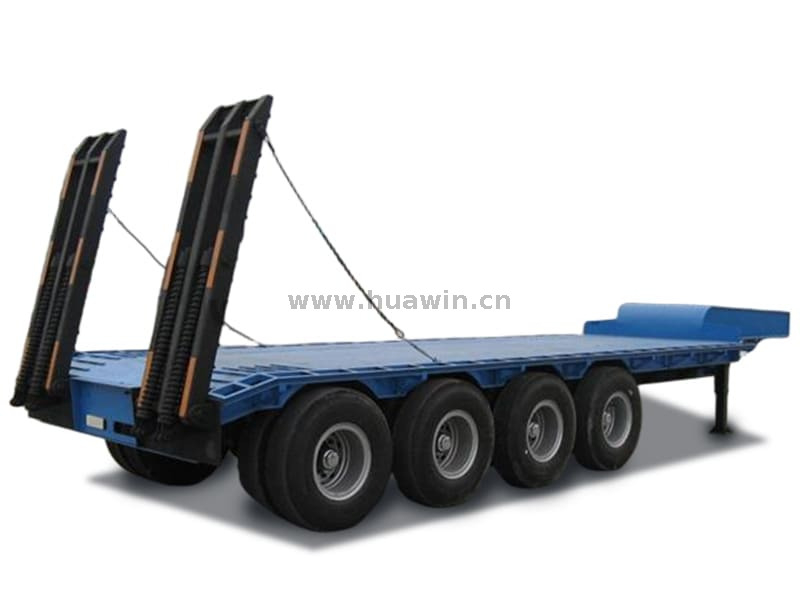

Excavator Carrier 70 Ton 4 Axle Low Bed Trailer

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • ZZ
  • Huawin

Excavator Carrier 70 Ton 4 Axle Low Bed Trailer

4 axle low bed

Specifications:

DIMENSIONS

Tare  Weight

10000-15000 kg

Overall  Length

12000-18000 mm

Overall  Width

3000-4000 mm

Payload

60000-90000 kg

SPECIFICATIONS

I Beam & Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm.

Axle

4 axles

BPW/FUWA/HJ 12/13/14/15/16 ton axles

Suspension

Heavy duty air/mechanical suspension

Floor

3-6 mm checker plate

King Pin

JOST brand 3.5" Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

5.5-15,8.25-22.5, 9.0-22.5, wheel rim  16 pieces

Tire

8.25R15, 295/80R22.5,11R22.5 tire, 16 pieces

Ramp

Mechanical /hydraulic ramp

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
