ZZ1317N3261W
SINOTRUK HOWO

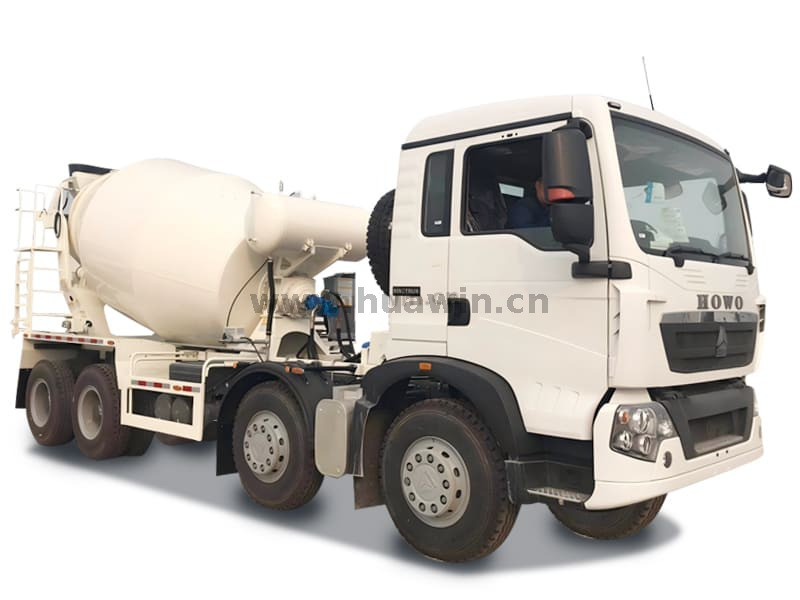

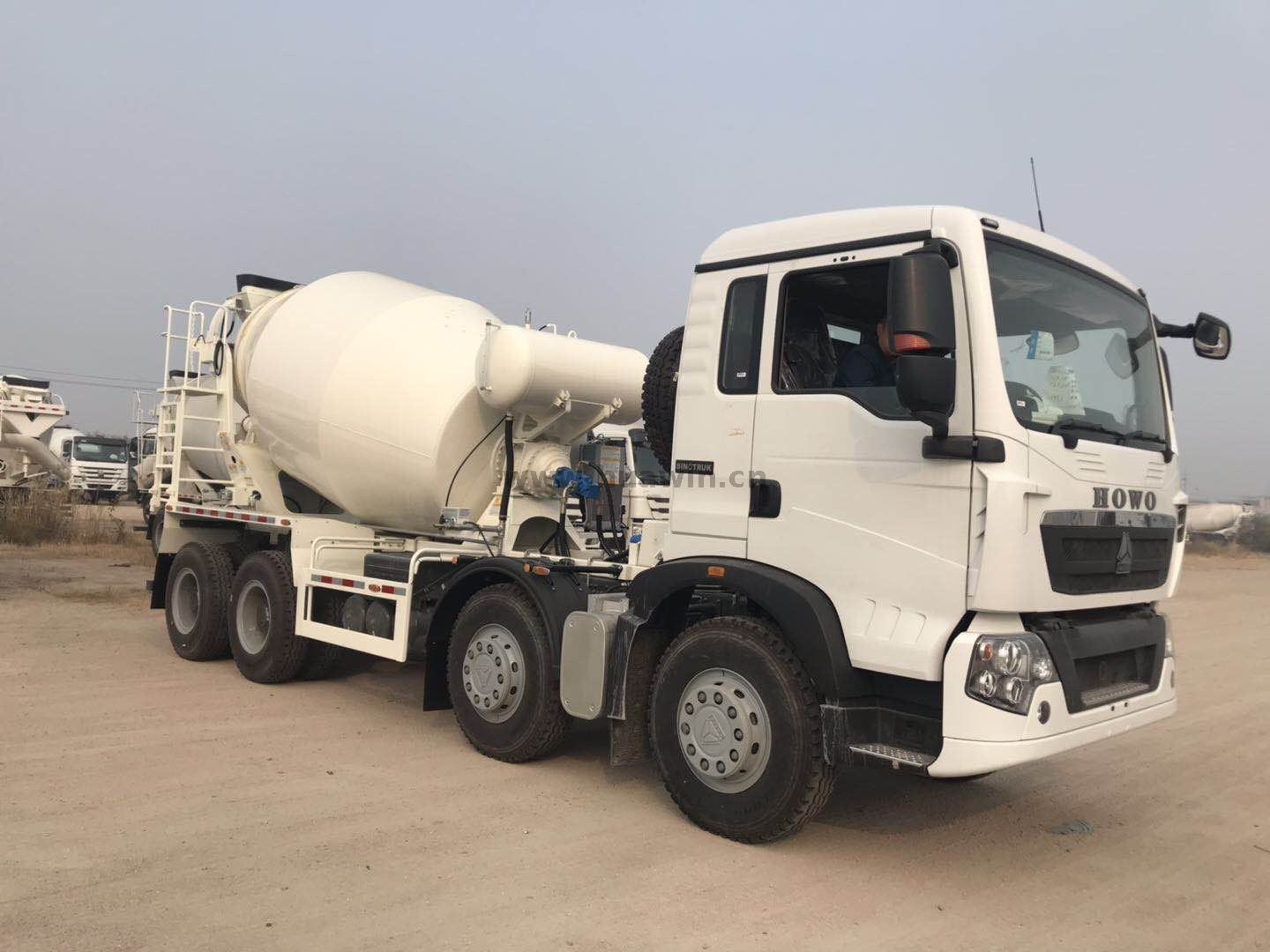

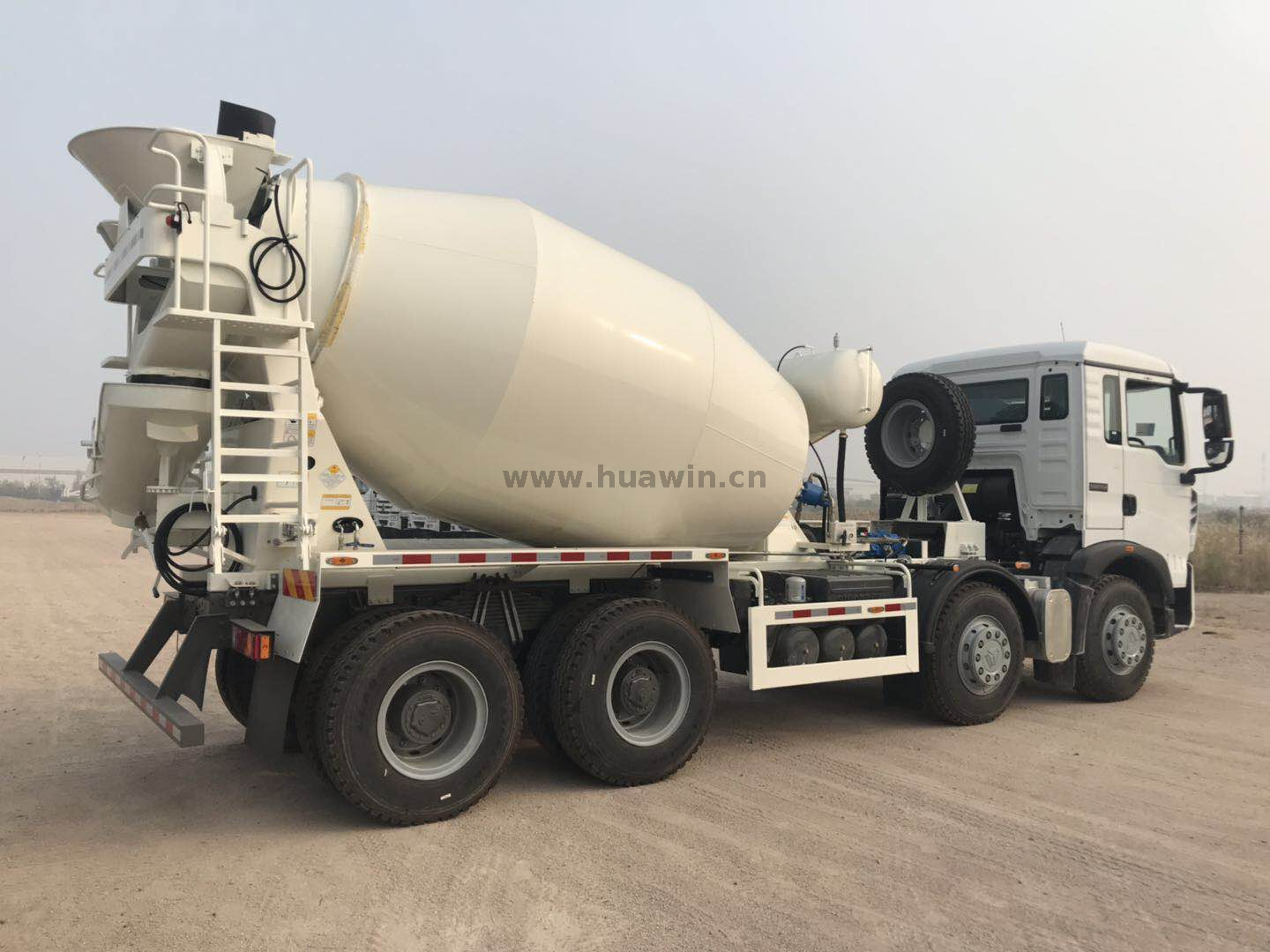

China Sinotruk HOWO Mixer Truck, Concrete Transit Mixer-12CBM
Specifications:
Vehicle Main Dimensions | (L × W × H) mm | 10200×2500×3900 |
Wheelbase (mm) | 1800+3200+1350 | |
Approach/Departure angle (°) | 16/24 | |
Weight in KGS | Tare Weight | 16000 |
Loading Capacity | 34000 | |
Front axles loading capacity | 2×9000 | |
Rear axles loading capacity | 2×16000 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710 , 10 forwards & 2 reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF8118 power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 400 | |
Tire | 13R22.5 tubeless tire, 13 pieces including one spare tire | |
Others | With exhaust valve brake (EVB) and oil-bathing system, with warning light and reverse alert | |
Brakes | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Mixer Body
Thickness | End plate | 6mm high tensile strength steel |
Mixer body | 4mm high strength and abradability steel | |
Mixer body Volume | 12 M3 | |
Hydraulics | Motor, Pump | Italian PMP Brand |
Gear box | Italian PMP Brand | |
