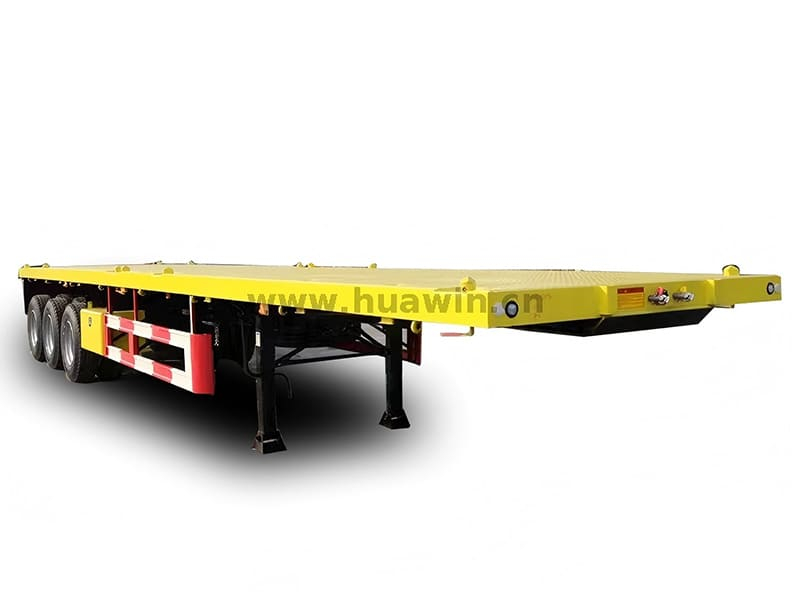

Hot Selling Sinotruk 3 Axles 40FT Flatbed Semi Trailer
Specifications:
DIMENSIONS | ||
Tare Weight | 7700kg | |
Overall Length | 12400mm | |
Overall Width | 2480mm | |
Payload | 45000kg | |
SPECIFICATIONS | ||
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange8 mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
Axle | 3 axles | |
BPW Brand 13 ton | ||
Suspension | air suspension | |
Floor | 3mm checker plate | |
King Pin | JOST brand 2" Bolt-in King Pin | |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces | |
Tire | 12R22.5 tire with one spare tire. 13 pieces | |
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
Spare Tire | One set of spare tire including a carrier | |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Accessories | One standard tool box | |
