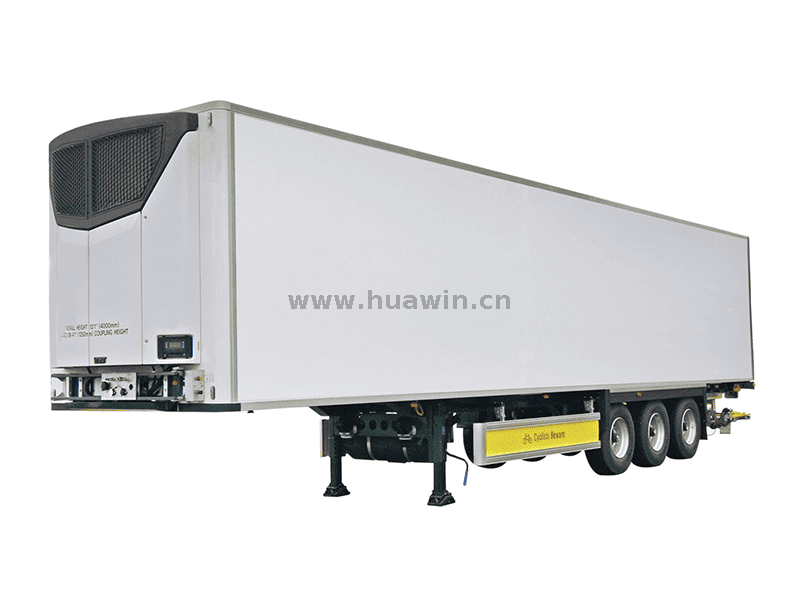

SINOTRUK 3 Axles Refrigerator Container Thermo King Semi Trailer

Refrigerator trailer with independent power pack is a kind of semi-trailer with refrigerating device . Independent refrigeration unit means that the refrigeration unit has an independent power source. The middle layer is made of thermal insulation material, mainly using polyurethane foam material. Use high-strength glue on the four sides to glue the glass steel plate and the polyurethane foam material together to form a closed plate. Good heat preservation performance, beautiful appearance, light overall weight, high strength, no leakage, long service life, reaching the national A-level standard; customers can follow the actual use, the temperature can reach minus 18 degrees to minus 28 degrees,
The refrigerated semi-trailer can improve the comprehensive economic benefits of road transportation due to its large load capacity.


Color:	Please select white/red/green/blue/yellow/silver
Availability:



Inquire

Model:
SGZ
Brand:
SINOTRUK

refrigerator trailer 3 axle refrigerator thermo King container trailer

PRODUCT CATEGORY

Product Description

refrigerated trailer

DIMENSIONS
Tare Weight	9630 kg
Overall Length	12500 mm
Overall Width	2650 mm
Overall height	4000 mm
Payload	30000 kgs
SPECIFICATIONS
I Beam & chassis	Heavy duty and extra durability designed I beam; welded by automatic Submerged-Arc processes.
Axle	3 axles. FUWA brand, 13 ton loading capacity.
Suspension	Mechanical suspension
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Tire	315/80R22.5, including one spare tire in total 13 pieces
Spare Tire	One set of spare tire including a carrier
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Box	Ø Outer Size (lengthwidthheight): 1210024002400mm, Ø High density polyurethane for insulation Ø Thickness of 95mm Ø Without side door Ø With Aluminum rails
Accessories	One standard tool box
Cooling system	Ø America brand Carrier Vector 1550 independent cooling system with backup electric power system. Ø Road Refrigerating capacity: 14995W at 0℃~30℃, 8285W at -20℃~30℃ Ø Backup electrial refrigerating capacity: 13200W at 0℃~30℃, 7360W at -20℃~30℃ Ø Working temperature: - 20℃ ~ +30℃ Ø Compressor: ZF19VE-164, Ø Refrigerating fluid volume: 5kg Ø Air volume: 5700m³/h

Product Description

WARRANTY

1. Twelve months quality guarantee for three key parts axles, engine and transmission or within
100,000km, which comes first for on road trucks(tractor trucks, cargo trucks, etc. Six months quality guarantee for three key parts axles, engine and transmission or within 50,000km, which comes first for off road trucks(dump trucks, concrete mixer truck, etc).
2. Six months quality guarantee for three key parts axles, beam and landing gear or within
50,000km, which comes first for trailers.
3. Other spare part could be supplied by OEM at cost prices.
4. Regularly callback to know the vehicle's working status
5. The overseas engineers are always ready to deal with unexpected needs.
