HWWDT-3
SINOTRUK HOWO

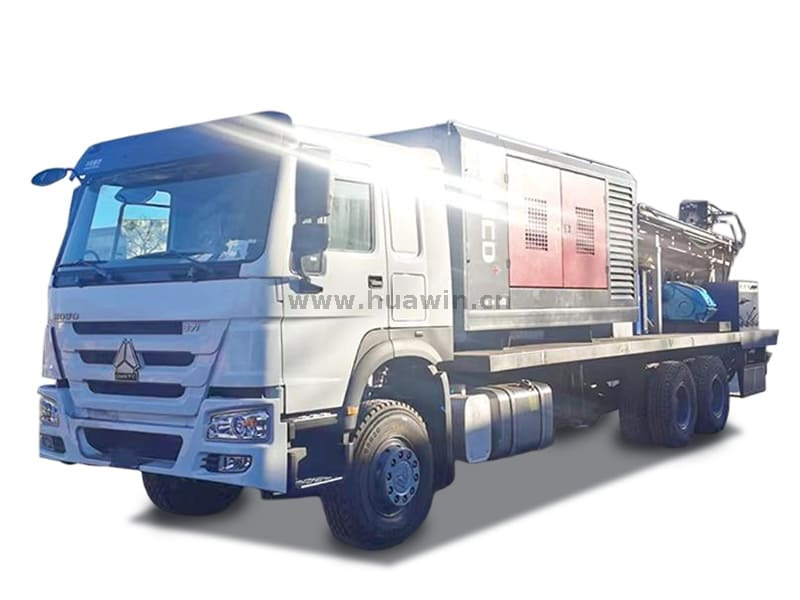

HOWO 6X4 300Meters, 350meters,400meters Well Drilling Machine
Specifications
| Cabin | HOWO 76 cab, with air condition and one bed. 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 12000*2500*3850 |
| Wheel base (mm) | 5800+1400 | |
| Weight in KGS | Tare Weight | 9560 |
| Loading capacity | 30000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 102 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 371 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forward gears & 2 reverse gears | |
| Steering | ZF brand power steering, hydraulic steering with power assistance | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Fuel tank | 400 L | |
| Tire | 12R22.5 tubeless tyre, 11 pieces including one spare | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Drilling system | Drill tower load:30T Operation：Two hydraulic support cylinders Drill tower height：6M Drill dept: 300m, 350m, 400m or as customized | |
