ZZ5207M46-2
SINOTRUK HOWO

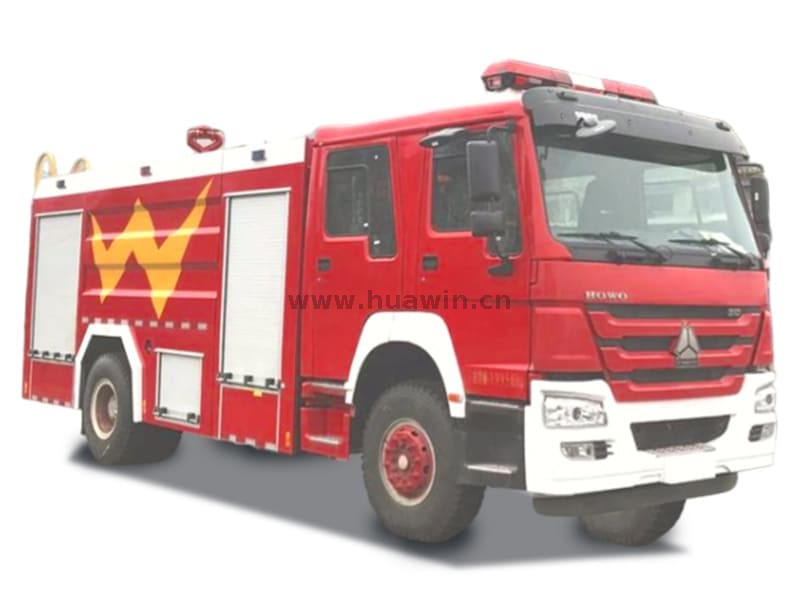

HOWO 4x2 Water Spray Fire Fighting Tank Truck Wiht 6CBM Water And 2CBM Foam
Specifications
| Cabin | Double Cabin with 6 seats, air conditioner, as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8445x2500x3610 |
| Wheel base (mm) | 4600+1350 | |
| Weight in KGS | Tare Weight | 9000 |
| payload | 14000 | |
| Front axles loading capacity(kg) | 7000 | |
| Rear axles loading capacity(kg) | 16000 | |
| Max. driving speed（km/h） | 95 | |
| Engine | Brand | SINOTRUK |
| Model | D10.31-40 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling,high pressure common rail | |
| Horse Power（HP) | 310 | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Tire | 12R22.5, with one spare tire | |
| Specialized part | ||
| Volume | 6000L water tank and 2000 foam tank | |
| Water cannon | Model PL48, 360 º horizontal rotation, maximum 70 º, the maximum depression:-30º, flow:48L / S, pressure 1.0Mpa. | |
| Fire pump | Model：CB10/60 Flow：60L/S Pressure：1.0MPa | |
| Other | 1.6m LED Alarm Lamp, 50W LED Fire Searchlight, ladder at rear part,red and blue strobe light, 100W alarms | |
