HOWO 300 Meters, 400 Meters Well Drilling Truck

Availability:
Quantity:
  • HWWDT-4

  • SINOTRUK HOWO

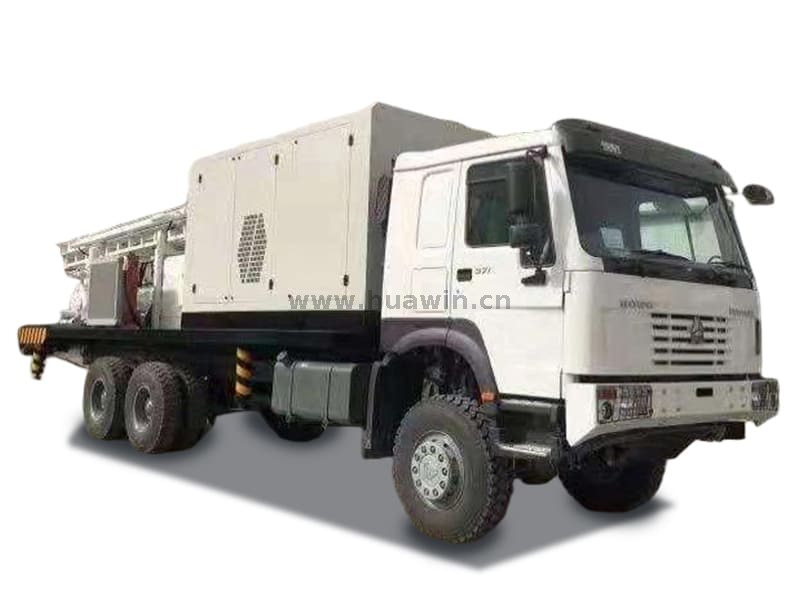

HOWO 300 Meters, 400 Meters Well Drilling Truck

Drilling rig truck - 副本

Specifications

Cabin HOWO 76 cab, with air condition and one bed. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H) mm 12000*2500*3850
Wheel base  (mm) 5800+1400
Weight in KGS Tare Weight 9560
Loading capacity 30000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 102
Engine Brand SINOTRUK
Model WD615.47
Type 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371
Emission standard Euro Ⅱ
Gearbox HW19710, 10 Forward gears & 2 reverse gears
Steering ZF brand power steering, hydraulic steering with power assistance
Clutch Reinforced diaphragm clutch, diameter 430 mm
Fuel tank 400 L
Tire 12R22.5 tubeless tyre, 11 pieces including one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Drilling system Drill tower load:30T
Operation:Two hydraulic support cylinders
Drill tower height:6M
Drill dept: 300m, 350m, 400m or as customized
