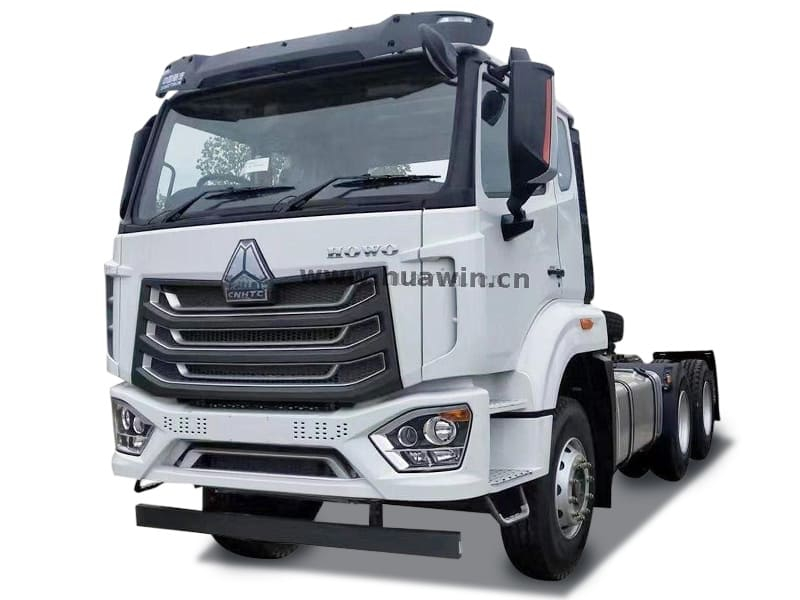

SINOTRUK HOWO N7B NX 6x4 Tractor Truck For Africa

Wheel base (mm)

3225+1350

Wheel track (front/rear) (mm)

2022/1830/1830

Weight in KGS

Tare Weight (kg)

8000

Hauling Capacity (kg)

40000

Front axles

Rated load 7ton, drum brake

Rear axles

Loading capacity 2*13ton, axle type

Max. driving speed（km/h）

102

Engine

Brand

SINOTRUK

Model

WD615.47

Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power（HP)

371/ 2200 rpm

Max torque (N.m)

1500/ 1100-1600 rpm

Engine capacity (cc)

9726

Emission standard

Euro II

10Gearbox

HW19710 manual transmission, 10-fowards: 14.284, 10.623, 7.871, 5.876, 4.375, 3.265, 2.428, 1.799, 1.343, 1.00; 2-reverse: 13.913, 3.18; gear oil capacity: 12 L

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098, power steering, hydraulic steering with power assistance

Fuel tank (L)

400 Liters Aluminum oil tank

Tire

315/80R22.5 tubeless tire 11 pcs including one spare

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Accessories

ABS, Air bag seat for driver, JOST 2” fifth wheel, high steel bumper
