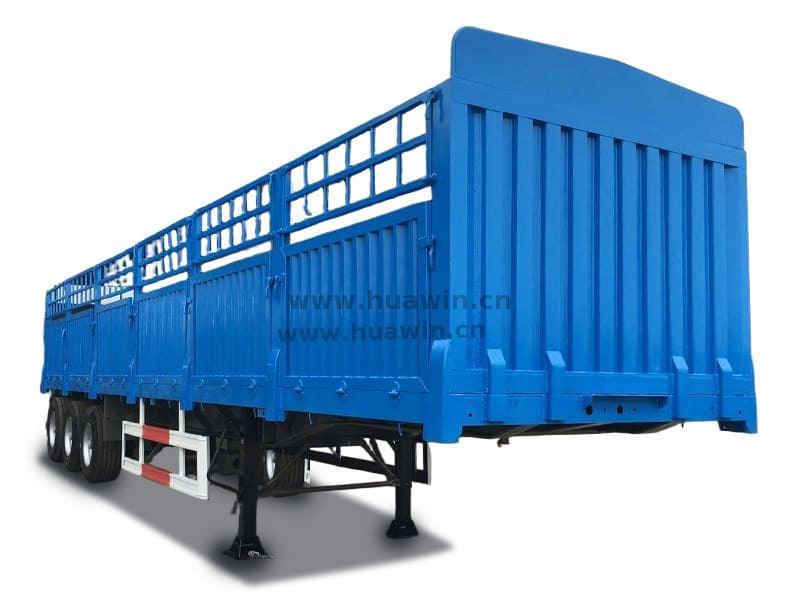

3 Axles Storehouse Semi Trailer

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • ZZ
  • Huawin

3 Axles Storehouse Semi Trailer

3-Axle Storehouse Semi Trailer

Specifications:

Gross Weight

About 40000KG

Kerb Weight

About 7000KG

Loading Capacity

40000KG

Dimensions

13000x2500x3600mm, Exact size depends on the final design

Main Beam

Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B steel

Side Beam

16mm or 18mm channel steel(Material is Q235 steel)

Bottom Platform

2.5mm Steel thickness of diamond plate or 3mm Steel thickness of flat plate

Side Wall

Height:600mm or 800mm ,Stake height:1000-1600mm

Axles

13T/16T, BPW Brand

Tire

12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5

Rim

8.5-20, 8.0-20, 9.0-22.5

Suspension

Mechanical suspension

Spring Leaf

Width 90 mm, Thinckness 13/16mm, 10 Layer

King Pin

JOST brand 2.0 or 3.5 inch bolts type or welding type

Landing Gear

Jost brand, manual operation

Brake Chamber

4 double chamber

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
