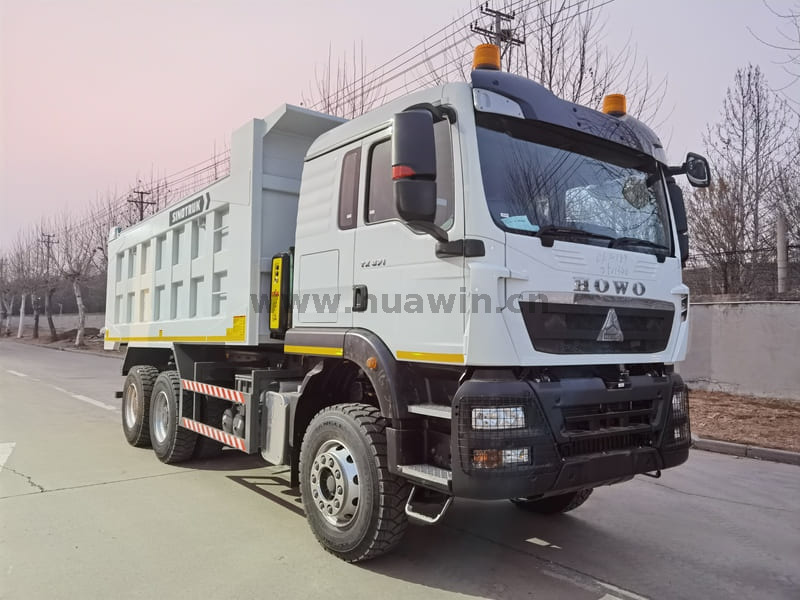

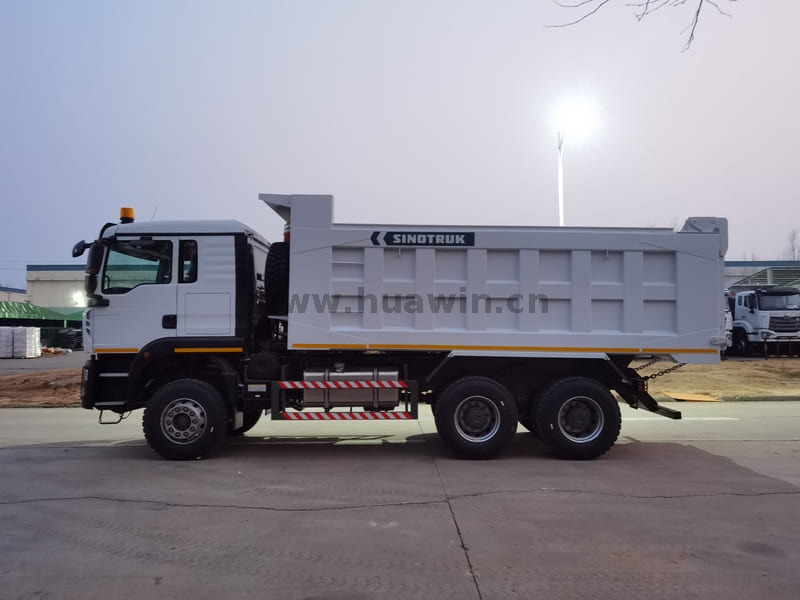

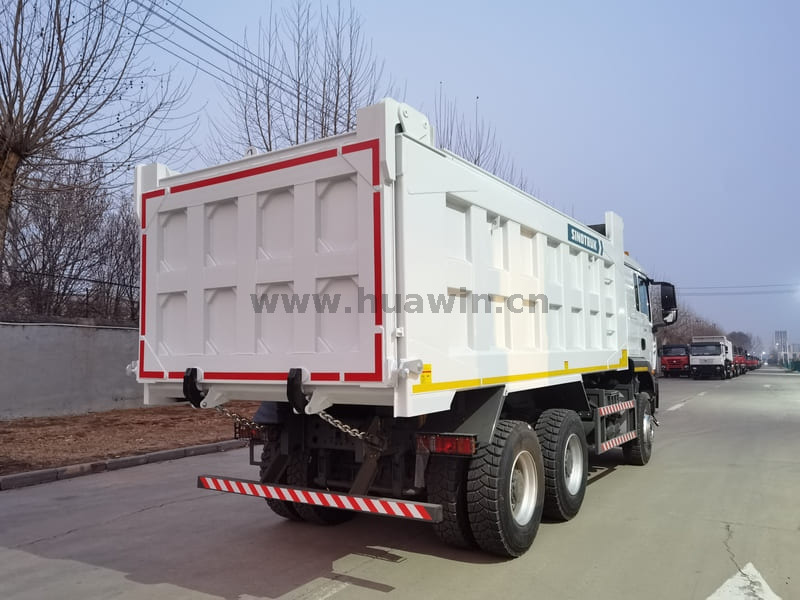

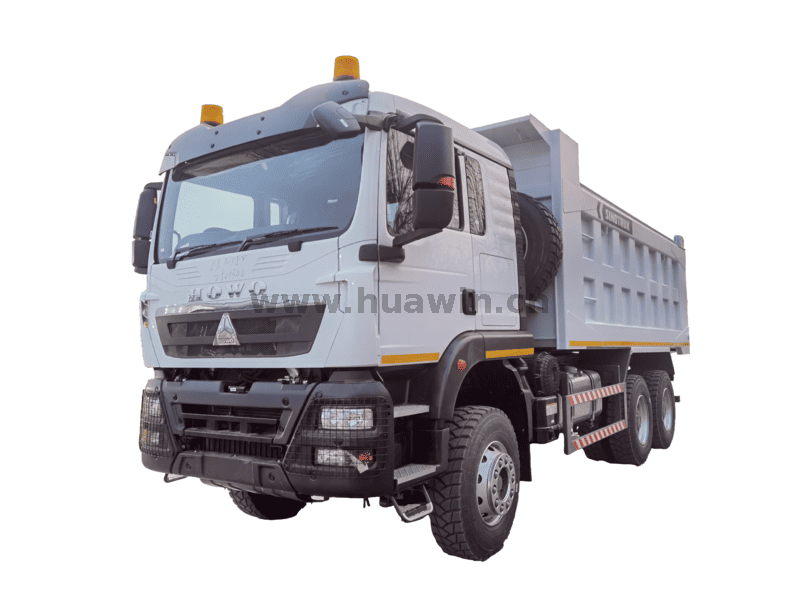

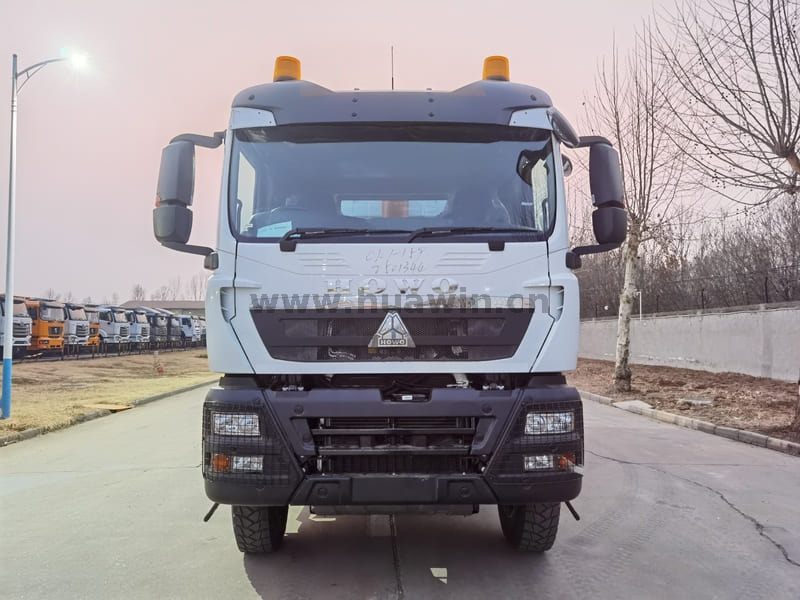

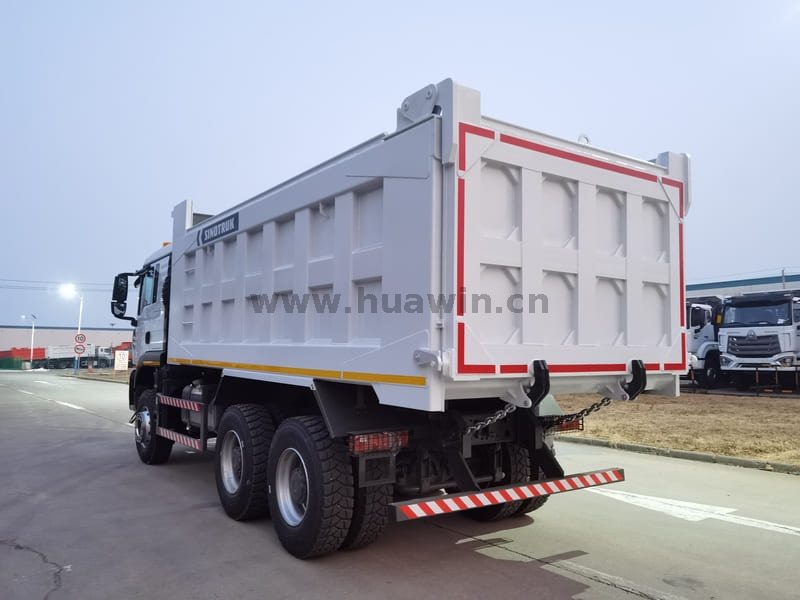

Sinotruk Howo TX Dump Truck 6×4

PRODUCE SHOWCASE:

● China's best  rear loader truck factory

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

Sinotruk Howo TX dump truck is mainly used for short-distance transport of bulk materials such as ore, coal, sand and gravel, etc and used for transporting soil, construction waste, concrete raw materials, etc, in large-scale earthworks, foundation construction, urban infrastructure and other projects.

Basic Configuration	English instrumentation, fire extinguisher, reversing buzzer, front and rear headlamp protectors, metal bumper protection grille (optional bull bar not fitted), anti-theft device for the battery box, and an additional level of Parker coarse filtering
Core Configuration	LWH(mm)	8655*2576*3436
	Drive axle	MCX16ZG Dual Rear Axle (Drum)
	Weight (kg)	17760
	Chassis	Double frame (8+8/300)
	Suspensions	Front and rear reinforced multi-leaf springs (11/12)
	Transmission	HW19710 gearbox + HW50 direct coupled extractor
	Engines	WD615.47 Engine
	Cabs	TX-F cab

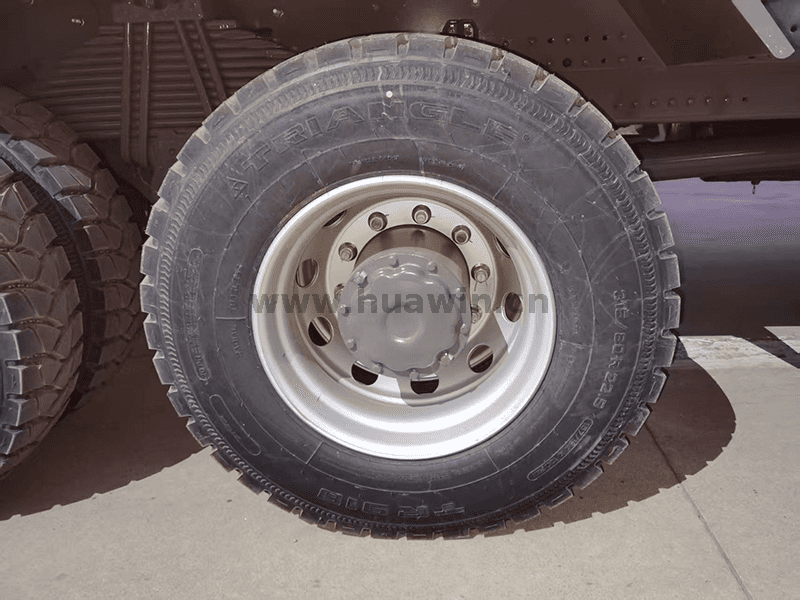

compulsory	Tyres	315/80R22.5 tyre (mining block pattern/20PR)
	Speed ratio	5.451
	Bumper	High Bumper
	ABS Control System	Without ABS
	Steering Wheel	Right-hand drive
selectable	Optional cab overhead light fixture	None
	Engine Options	EVB and 71 degree thermostat
	Cab Option	Classic Edition
	Battery option	165AH Battery
	Fuel tank option	300L Fuel Tank
	Air intake system options	Engineering air intake system (oil filter)
	Exhaust system	Standard exhaust system
	Wheel Option	Front and rear reinforced wheels

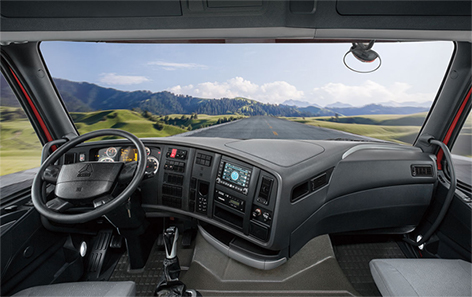

About Cabs:

HOWO TX 6x4 dump truck has a more modern appearance, a wide field of vision, and better driving comfort than the traditional HOWO series.

Multi-function steering wheel: integrated multimedia control, Bluetooth call, cruise control, and other functions, convenient operation.

Airbag shock-absorbing seats: height and angle adjustable, support heating and ventilation functions to reduce driving fatigue;

High-strength cab structure: It meets European crash safety standards and uses high-strength steel to enhance its collision protection.

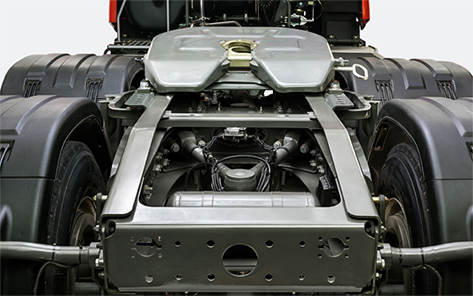

About Sump:

High-strength steel welded closed frame: Using high-strength Q345 or higher grade steel, strong torsion resistance; Closed structure + reinforced plate design, adapting to heavy transport environments such as mines and infrastructures; The frame structure is wide and rigid, enhancing the stability of the whole vehicle.

Suspension system:

Front axle: drum brake + multi-leaf spring suspension (commonly 11 or 12 leaf steel plate springs);

Rear axle: double rear axle drive, 16-tonne heavy-duty axle;
