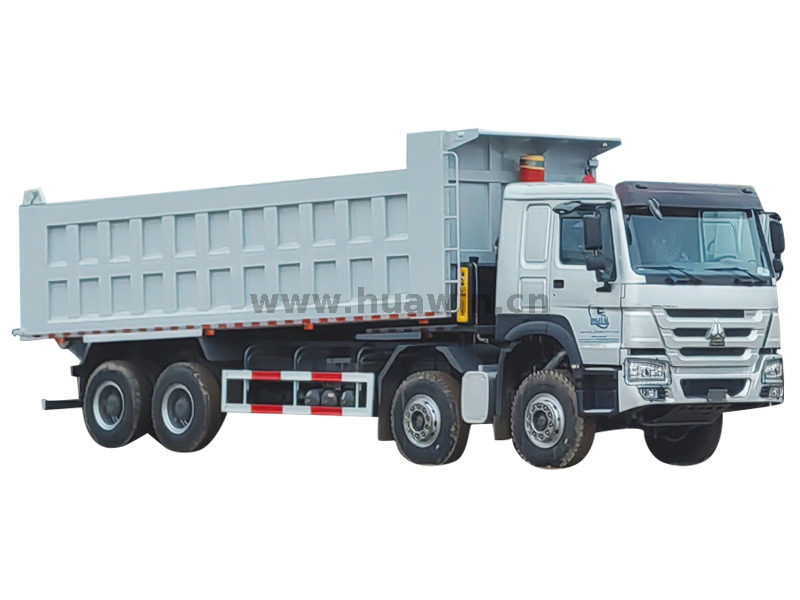

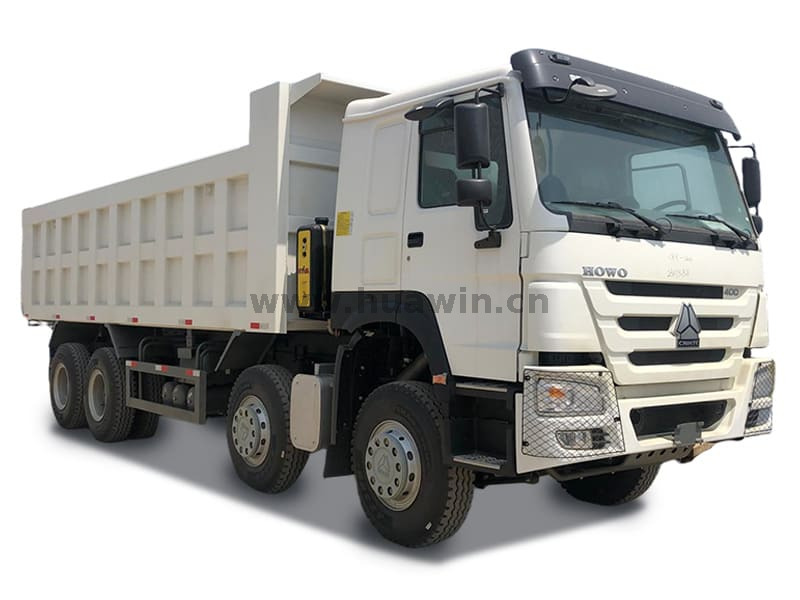

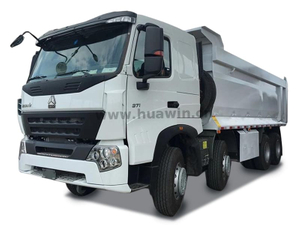

HOWO7 Dump-Truck-8×4 is a high-performance heavy-duty construction truck launched by China National Heavy Duty Truck Group (SINOTRUK), which is widely used in transporting building materials such as sand, concrete, etc., handling heavy materials such as ore and coal, efficiently handling the residue generated by urban construction, adapting to complex road conditions, and guaranteeing the transportation efficiency.
Produce showcases:
● China's best rear loader truck factory
● 30 years of experience on Fecal Suction Truck
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 24 months long guarantee time assurance
|  |
| |
Applications:
HOWO7 Dump-Truck-8×4 such as: highways, railroads, bridges, airports, water conservancy projects, etc., to transport gravel, cement, concrete, construction waste, etc. to meet the high-volume, high-frequency earth moving tasks. It is also used to carry heavy materials such as ore, coal, slag, gravel, etc.; it is especially suitable for mining areas with good ground or short-distance transfer operations.
| Core Configuration | Drive Axles | MCX16ZG Dual Rear Axle(Drum) |
| Frame | Double-layer frame(8+8/300) | |
| Suspension | Front and rear reinforced multi-leaf springs(11/11/12) | |
| Transmission | HW19710 gearbox + HW50 direct coupled extractor | |
| Engine | WP10.380E22 | |
| Cab | HW76 new front cab | |
| Compulsory | Tires | 12.00R20 Tires(Mixed Tread/18PR) |
| Ratios | 5.451 | |
| Bumper | High bumper (all metal) | |
| ABS | Without ABS | |
| Front Axle | VGD95 front axle (drum) | |
| Steering | Bosch steering wheel | |
| Selectable | Air Intake System | Engineered air intake system (oil filter) |
| Air Conditioning Unit | Heating and cooling air conditioning | |
| Protective cover | Metal bumpers (with front and rear light protectors) | |
| Intercooler protection | Intercooler protection | |
| Rear Tow Hook | Optional rear towing hitch | |
| Exhaust system | Standard exhaust system | |
| Reversing buzzer | Optional reverse buzzer | |
| Fuel tank | 300L fuel tank | |
| Underbody start/stop switch | Optional under-vehicle start/stop switch | |
| Driver's seat | Main airbags + secondary lightweight seats | |
| Upper Garment | 7300*2300*1500 rectangular box; bottom plate thickness: 10.0; bottom plate material: manganese plate; lifting mode: front roof; lifting hydraulic cylinder: HAVO 179; side plate thickness: 8.0; side plate material: manganese plate; opening type: standard; cargo compartment width: 2300.0; cargo compartment length: 7300.0; cargo compartment height: 1500.0; | |
