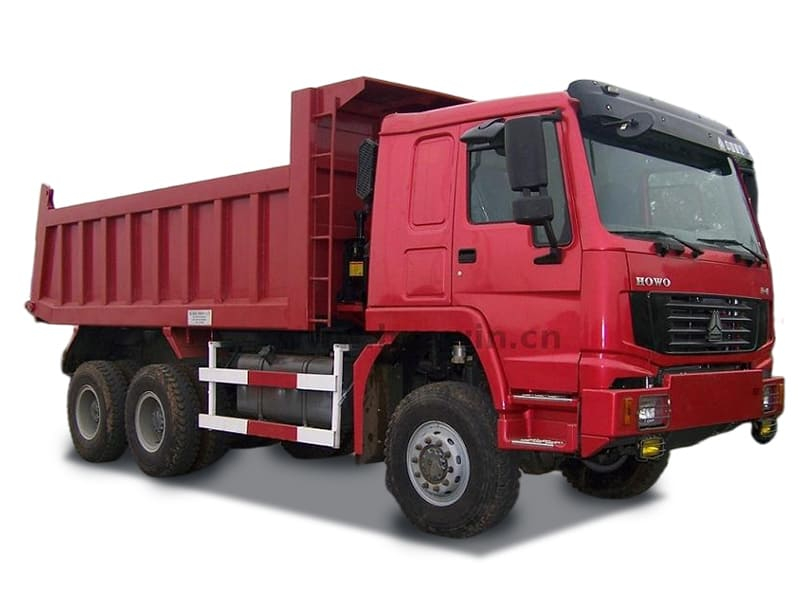

SINOTRUK HOWO 6x6 All-Wheeler-Drive AWD Dump Truck

Chassis  Model

ZZ3257N4357A

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (266HP, 290HP, 336HP are optional)

Transmission

HW15710C, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

STR, 1x7000  KGS

Steering with double T-cross section beam

Rear  Axle

ST16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12.00R20, steel tires with one spare tire.

Fuel Tank

400L

Dump Box

5670x2326x1200mm

Overall  Dimension

9285x2496x3490mm
