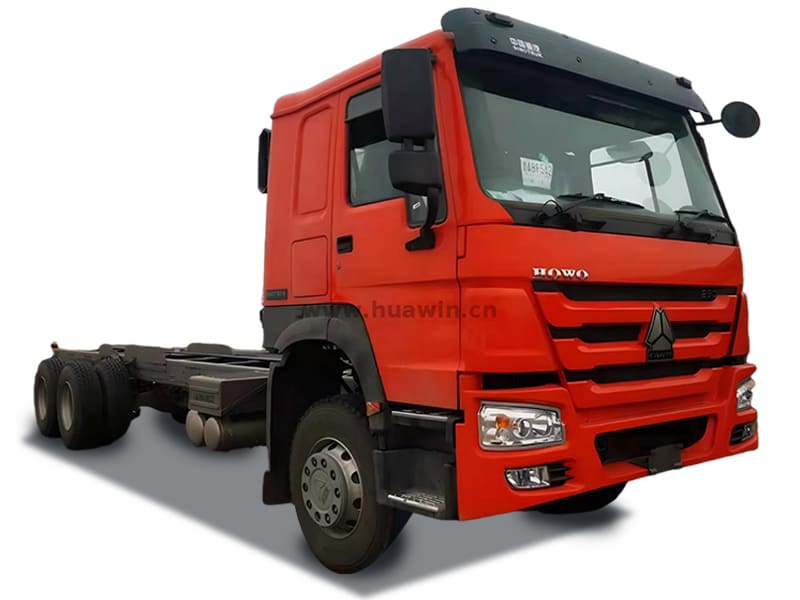

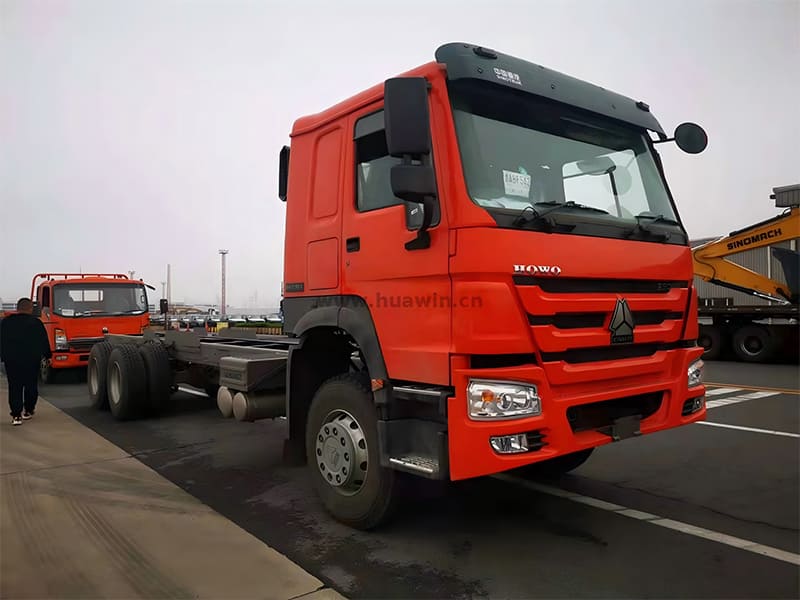

SINOTRUK HOWO 6x4 10 Wheeler Cargo Truck Chassis

SINOTRUCK cargo truck chassis is for customer to build their own truck body, like dump box, fuel tanker, cargo box ect to meet different needs.
Availability:
Quantity:
  • ZZ1257M4647W
  • SINOTRUK HOWO

名称SINOTRUK HOWO 6x4 Cargo Truck Chassis


详情


Specifications

SINOTRUK HOWO 6x4 Cargo Truck Chassis

Chassis  Model

ZZ1257M4647W

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 290HP (336HP, 371HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between  wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Overall  Dimension

9895x2496x3125mm
