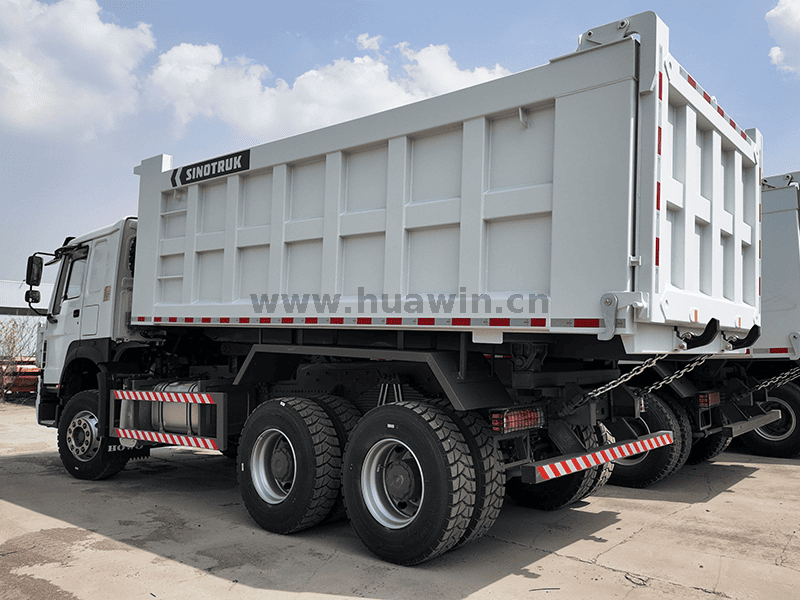

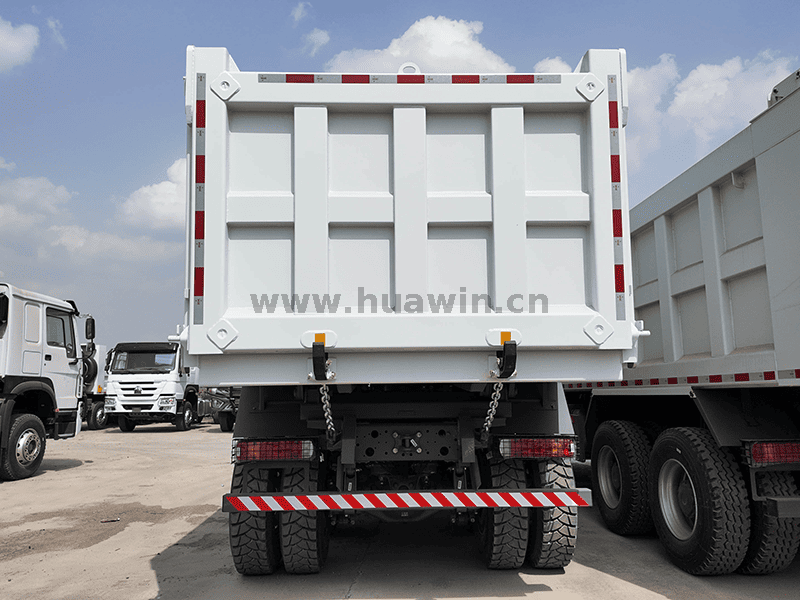

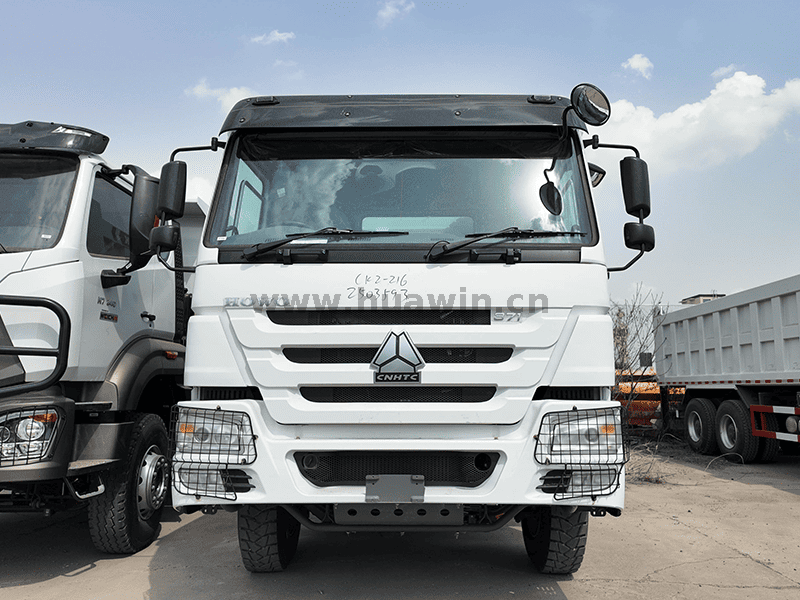

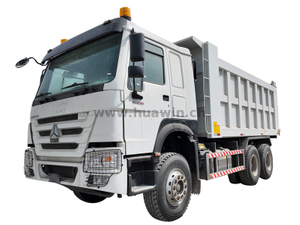

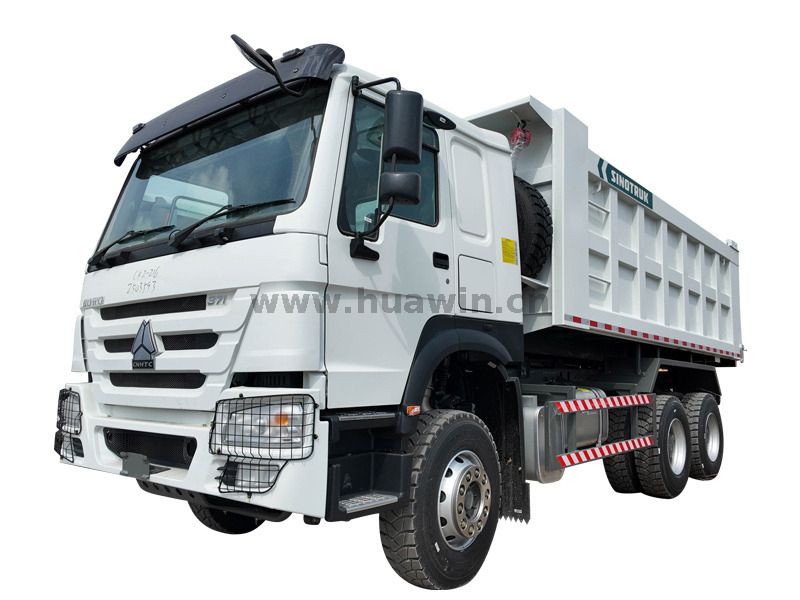

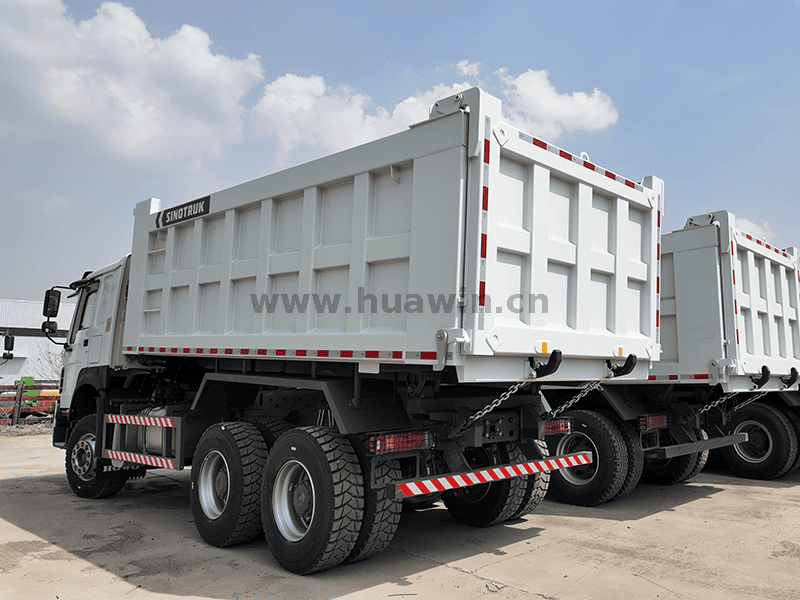

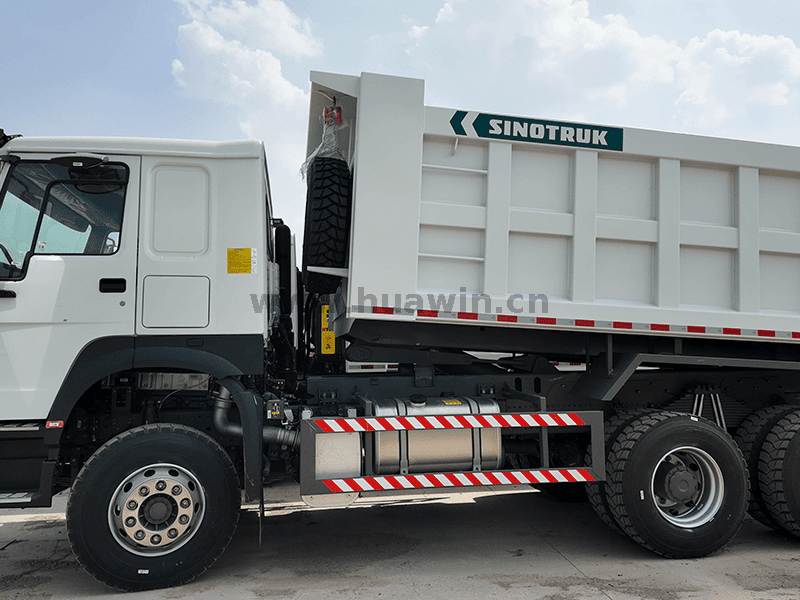

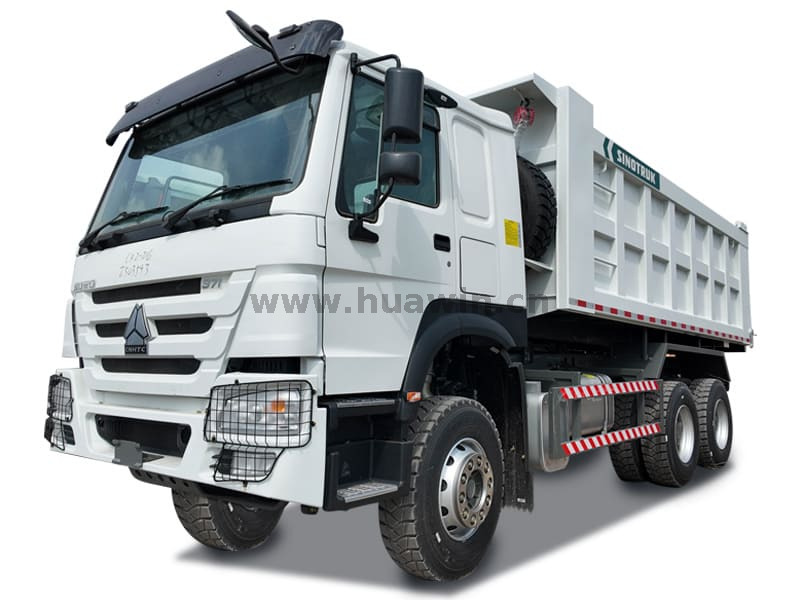

Sinotruk HOWO7 Dump Truck-Mid-Roof-6×4

Sinotruk HOWO7 Dump Truck-Mid-Roof-6×4 is a high-performance heavy-duty construction truck launched by China National Heavy Duty Truck Group (SINOTRUK), which is widely used in transporting building materials such as sand, concrete, etc., handling heavy materials such as ore and coal, efficiently handling the residue generated by urban construction, adapting to complex road conditions, and guaranteeing the transportation efficiency.

Chassis: Double-layer frame(8+8/300)
Transmission: HW19710 gearbox + HW50 direct coupled extractor
Cabs: HW76 new front cab
Engine Type: WP10.380E22
Axle drive: 6X4


Availability:



Inquire

HOWO7 Dump Truck Howo Dump Truck Mid-Roof-6×4 HOWO7 Dump Truck-6×4 Dump Truck-6×4 Sinotruk HOWO7 Dump Truck-Mid-Roof-6×4

PRODUCT CATEGORY

Product Description

Produce showcases:

● China's best rear loader truck factory

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

Sinotruk HOWO7 Dump Truck-Mid-Roof-6×4 is commonly used in construction sites such as gravel, cement, concrete blocks, slag and other building materials transportation; also common in urban infrastructure projects, highway construction, bridge construction and other places. At the same time in the mining transportation such as handling ore, coal, slag and other bulk heavy materials can also meet; adapted to the pit, open-pit mines, crushed stone field and other harsh environments.

Basic Configuration	English Instrumentation
Core Configuration	Drive Axle	MCP16ZG Dual Rear Axle(Drum)
	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW50 direct coupled extractor
	Engine	WP10.380E22
	Cab	HW76 new front cab
Compulsory	Tires	12.00R20 Tires(Mixed Tread/18PR)
	Ratios	5.451
	Bumper	High bumper (all metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle (drum)
	Steering	Bosch steering wheel
Selectable	Air Intake System	Engineered air intake system (oil filter)
	Air Conditioning Unit	Heating and cooling air conditioning
	Headlight guards	Metal bumpers (with front and rear light protectors)
	Reversing buzzer	Optional reverse buzzer
	Fuel tank	300L fuel tank
	Rear Tow Hook	Optional rear towing hitch
	Exhaust system	Standard exhaust system
	Underbody start/stop switch	Optional under-vehicle start/stop switch
	Driver's seat	Primary airbags + secondary lightweight seats
Upper Garment	560023001500 rectangular box; bottom plate thickness: 8.0; bottom plate material: general plate; lifting mode: center top; lifting hydraulic cylinder: Jinan special domestic T type-220; side plate thickness: 6.0; side plate material: general plate; opening type: standard; cargo compartment width: 2300.0; cargo compartment length: 5600.0; cargo compartment height: 1500.0;
