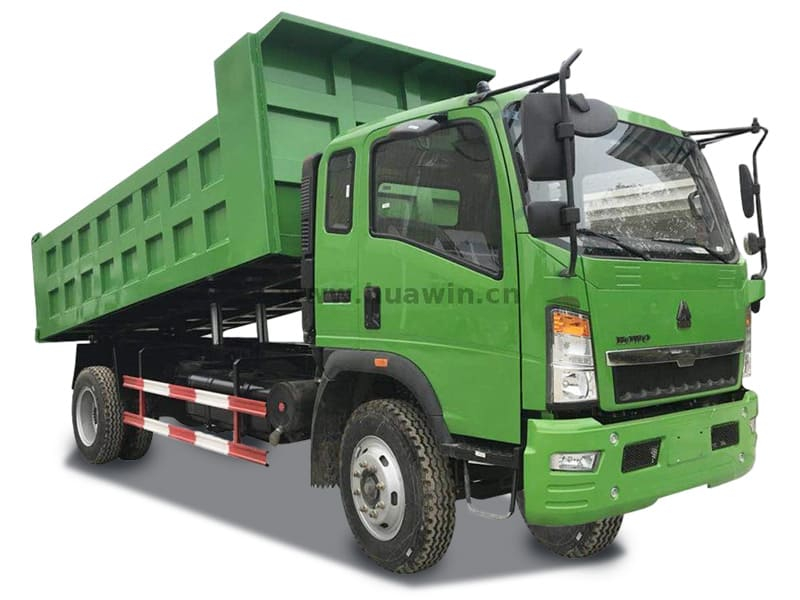

SINOTRUK New HOWO 4X2 10T Dump Truck

Chassis  Model

ZZ1107G421CD

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

2080 Cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: YUNNEI/YUCHAI

Diesel 4-stroke direct injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

4-cylinder in-line with water cooling

Horse power: 154HP (168HP is optional)

Transmission

WLY646, 6 forward gears and 1 reverse gear.

Steering

Hydraulic steering with power assistance

Front  Axle

4000KGS

Rear  Axle

8000KGS

Brake

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Electrics

Operating voltage: 24 V,  negative grounded

Starter: 24 V, 5.4  Kw

Alternator: 3-phase, 28  V, 1500 W

Batteries: 2 x 12 V, 165  Ah

Cigar-lighter, horn,  headlamps, fog lights, brake lights, indicators and reverse  light

Tires

7.50R16 steel tires with one spare tire, in total 7 pieces

Fuel  Tank

120 L

Dump box

4800x2000x600, middle tipping

Overall  Dimension

7400x2450x2650  mm
