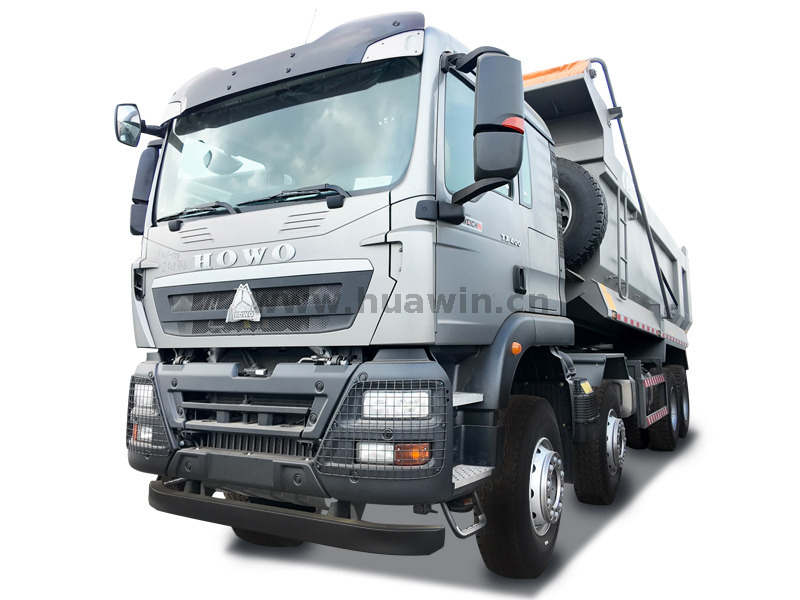

SINOTRUK HOWO TX-8x4 Tarpaulin Dump Truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Applications:

Sinotruk Howo Dump Truck-TX-8x4 is commonly used in mining transportation: transporting heavy materials such as ore, coal, sand and gravel; suitable for open-pit mines, metal mines, coal mines and other operating environments; the strong structural frame and high-power engine support long-time, heavy-duty operation. Construction site Transporting concrete, construction waste, masonry, earth, etc.; suitable for urban infrastructure construction, large-scale construction projects; can enter and exit complex terrain and narrow passageways of construction sites.

Cab：

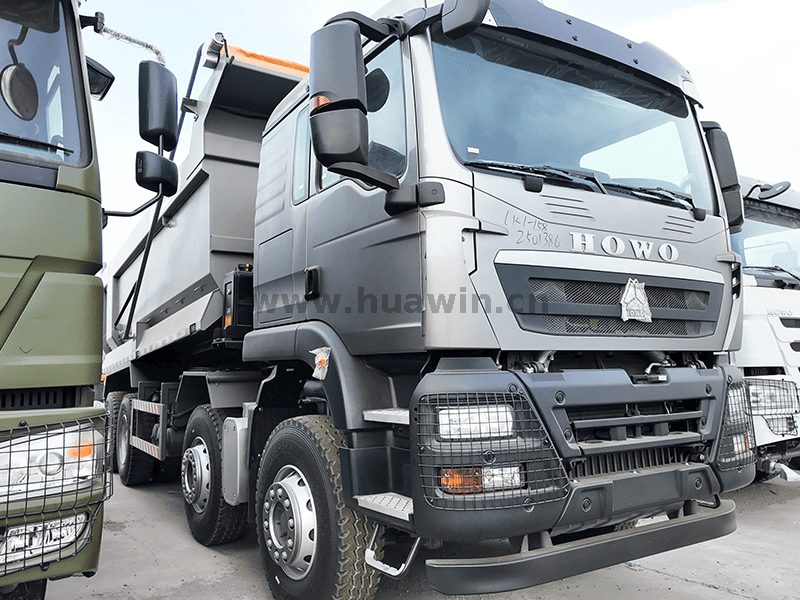

The cab of the Sinotruk Howo Dump Truck-TX-8x4 features a streamlined design with optimized drag coefficient for improved fuel efficiency. The large front windshield provides a wide field of view for enhanced driving safety. The front end features a polygonal grille and “HOWO” lettering for high brand recognition.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk HOWO-TX 8x4 Tarpaulin Dump Truck
Core Configuration	Cabin	TX-F, with one sleeper

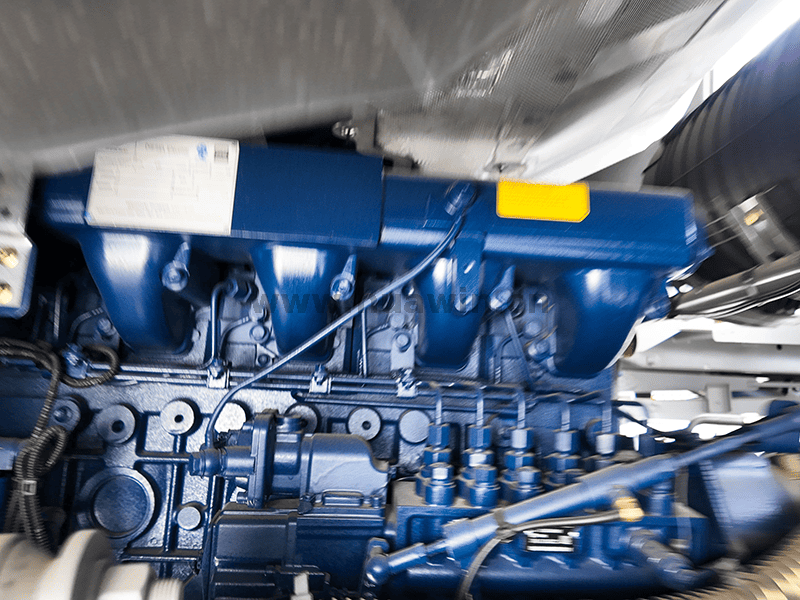

	Engine	WD615.47,  371HP,  EURO II
	Transmission	HW19710 gearbox + HW50 Power Take-off
	Chassis & Frame	TGA MAN chassis, Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(11/12)
	Front axle	2x9000KG drum
	Rear axle	2x16000KG drum
	Tires	315/80R22.5 tires(mixed tread/20PR), 12.00R22.5 tube tire optional
	Bumper	High bumper (all metal)
	Cabin Overhead Lamps	Single police light on cab roof
	Cabin	Classic version
	Battery	165AH battery
	Fuel tank	300L fuel tank with oil bath system

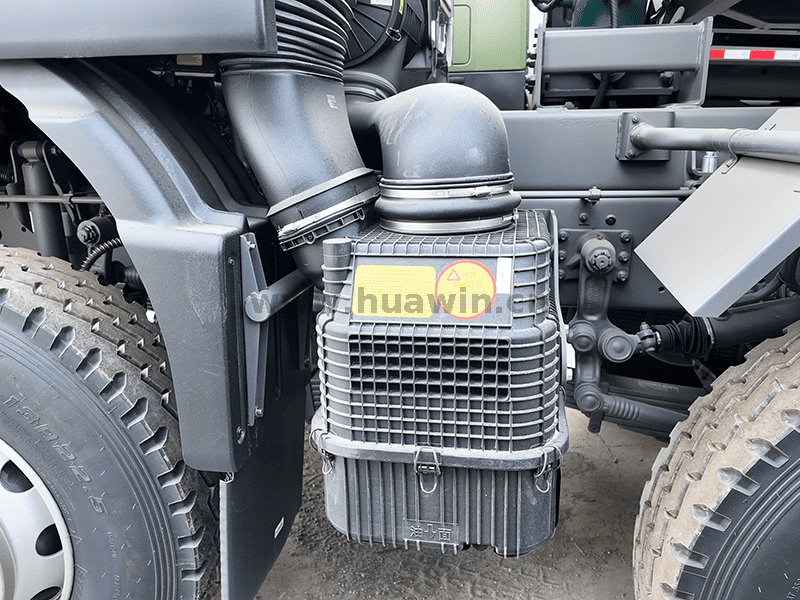

	Intake system	Engineering air intake system
	Exhaust system (oil filter)	Standard exhaust system
	Wheel option	Reinforced wheels

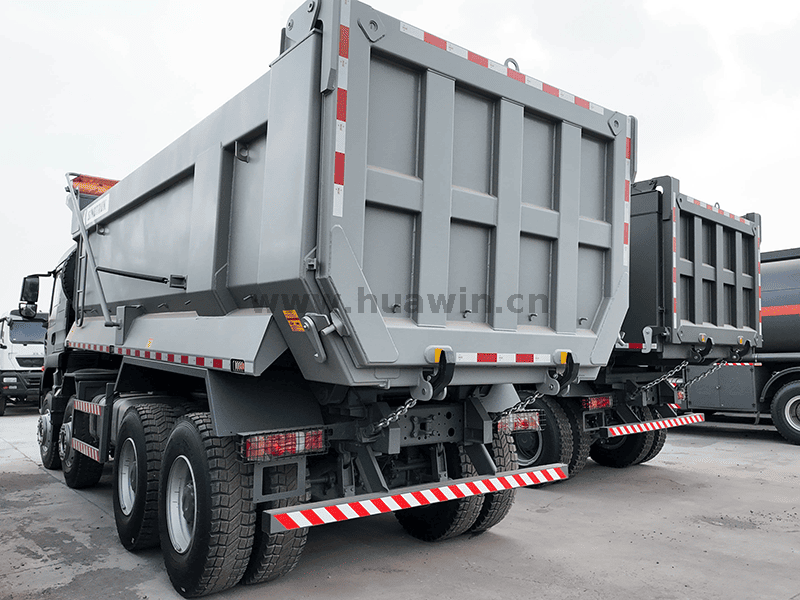

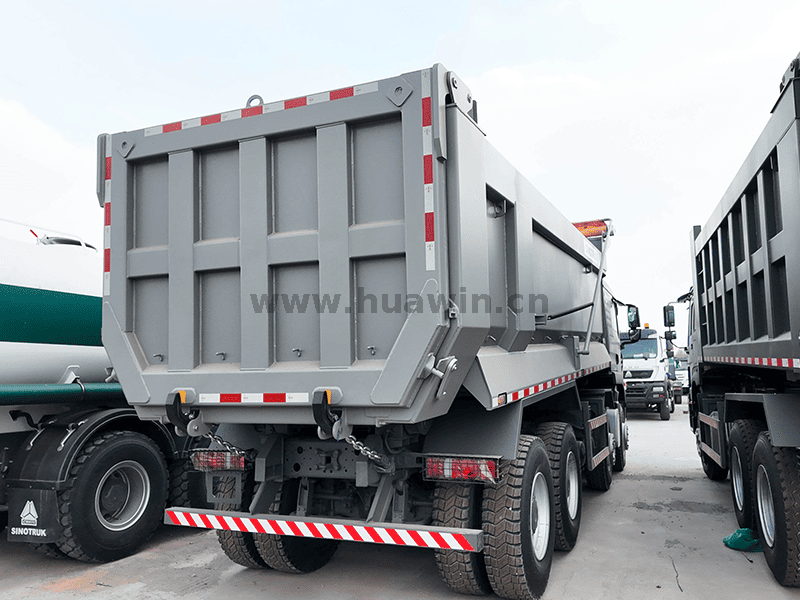

Tipper body	Compartment size: 7200x2300x1500mm, bottom 8mm, side 6mm, general board, strengthened T type, with main fuel tank anti-theft, battery protection, the whole car wax spraying. With automatic tarpaulin system.

Tires：

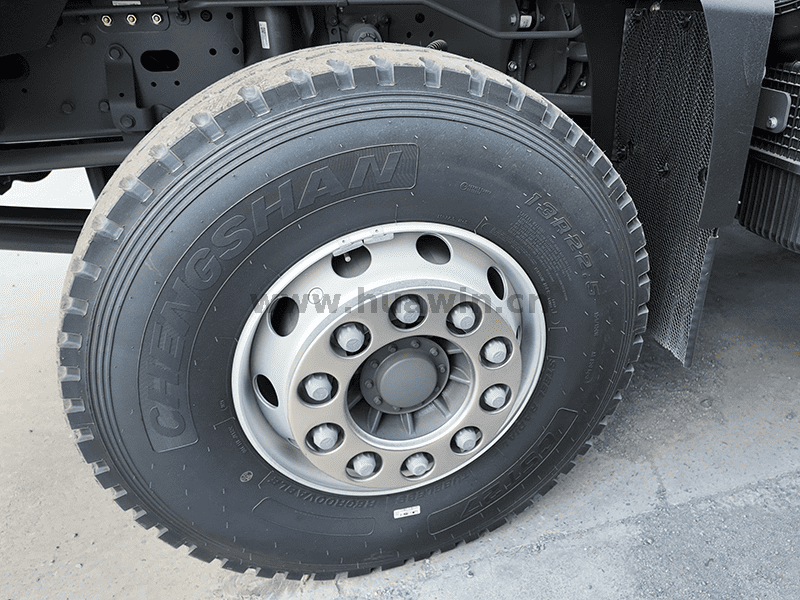

The Sinotruk Howo Dump Truck-TX-8x4 uses 315/80R22.5 tires (mixed tread/18PR). These tires combine lateral and longitudinal tread patterns to balance traction and steering performance. The central tread blocks are widened to enhance stability at high speeds. The open shoulder tread design improves drainage and heat dissipation, enhancing performance on wet and slippery roads.

Features:

Sinotruk HOWO TX 8X4 dump truck can also be equipped with U-shaped cargo box or special-shaped cargo box according to needs, suitable for transporting sand, gravel, slag, coal and other stacking; Additionally, the 8×4 drive configuration features dual rear axles with heavy-duty 16-ton-class drive axles, providing a robust heavy-duty truck chassis.

Highly environmentally friendly, avoiding secondary pollution: A large-capacity sewage collection tank is installed at the lower front of the container, which improves the vehicle's sewage storage capacity and solves the problem of secondary pollution during garbage transportation.

Highly intelligent and user-friendly operating system: Equipped with an electronic control + manual dual control system, it offers flexible operation and can achieve automatic compression and automatic unloading, thereby improving work efficiency,and The control box is located at the rear of the vehicle for easy operation by workers; some models also support remote control.
