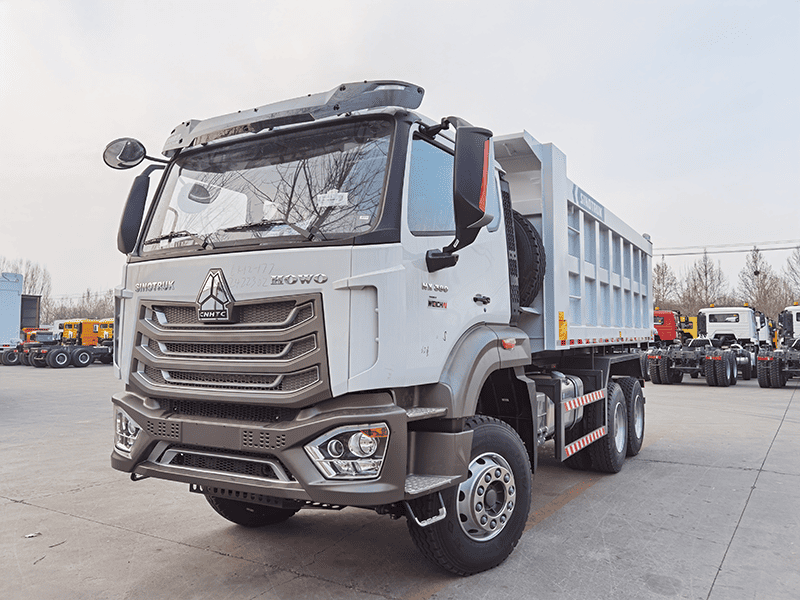

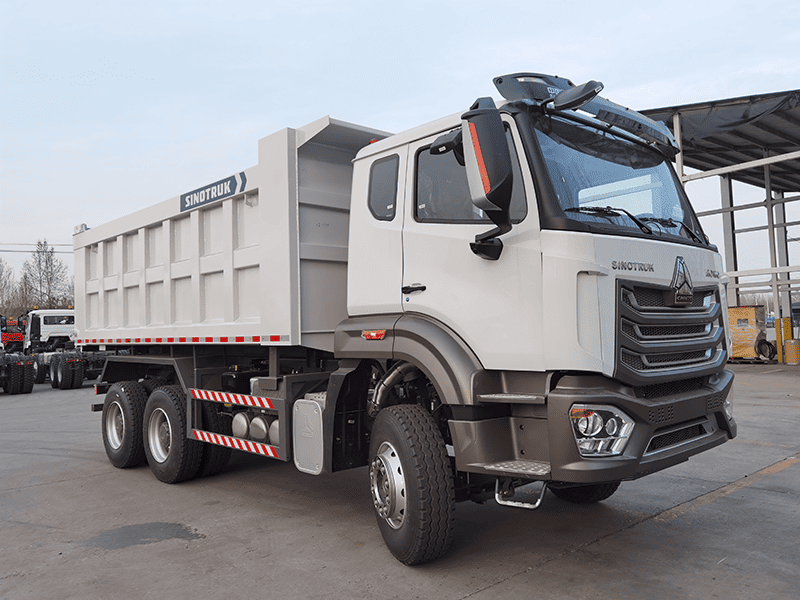

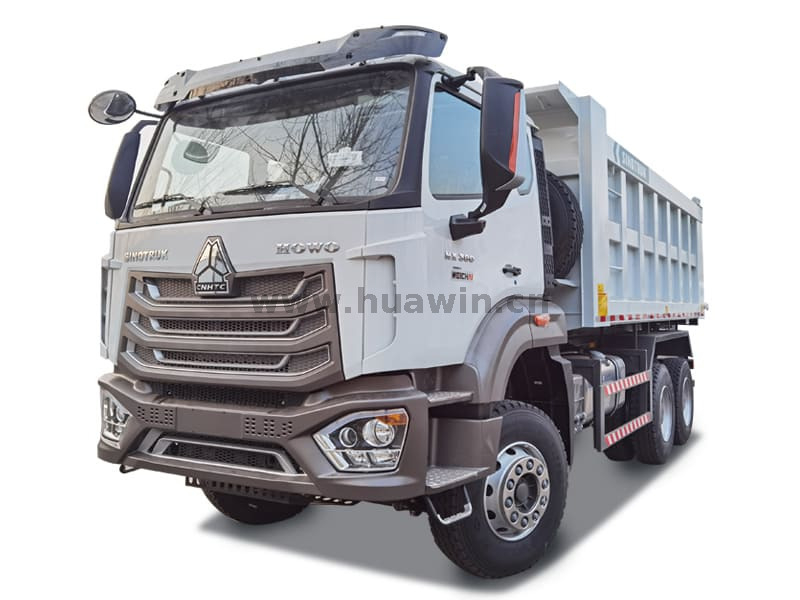

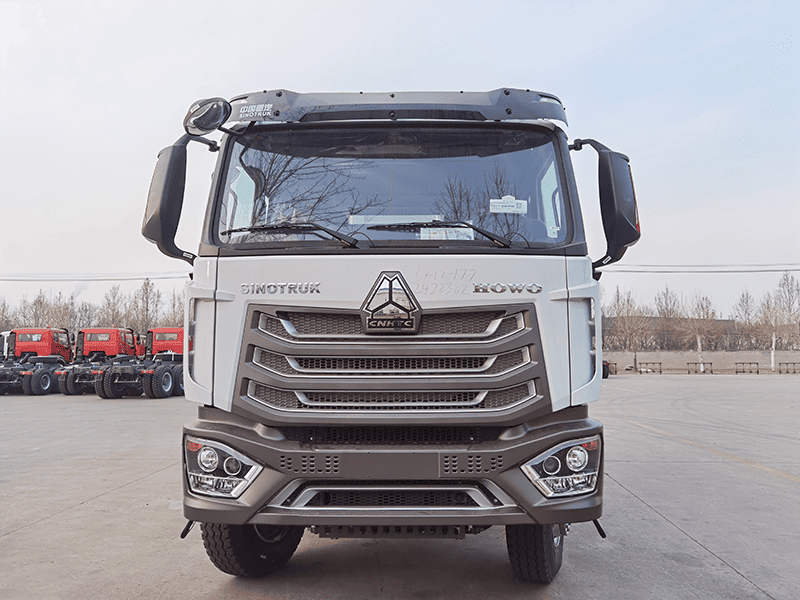

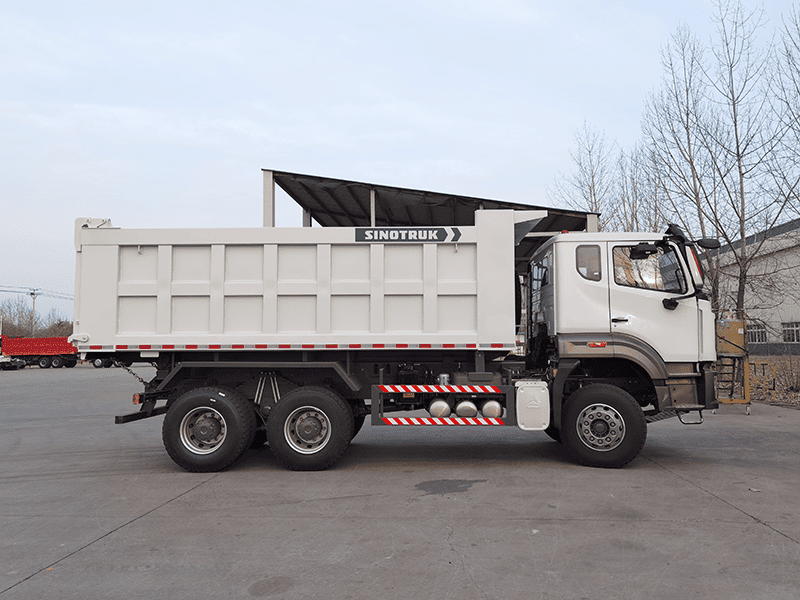

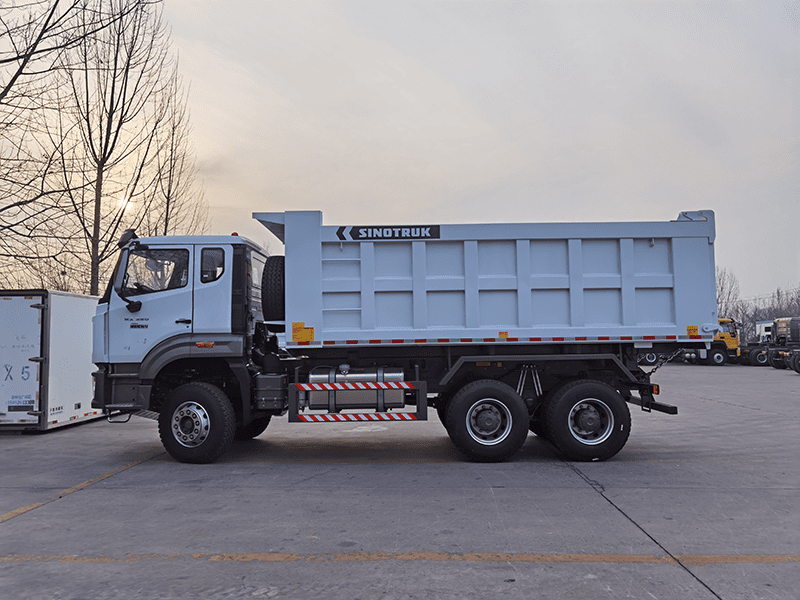

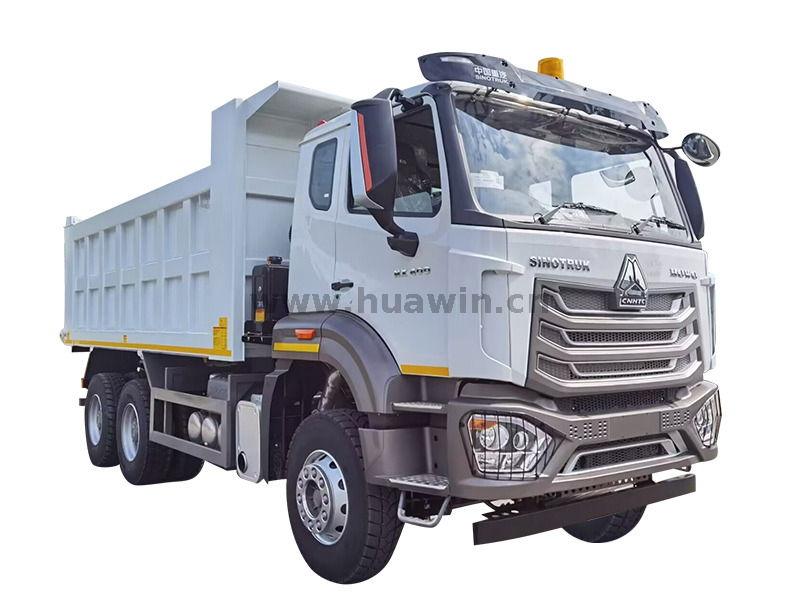

SINOTRUK HOWO NX 6X4 Dump Truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Applications:

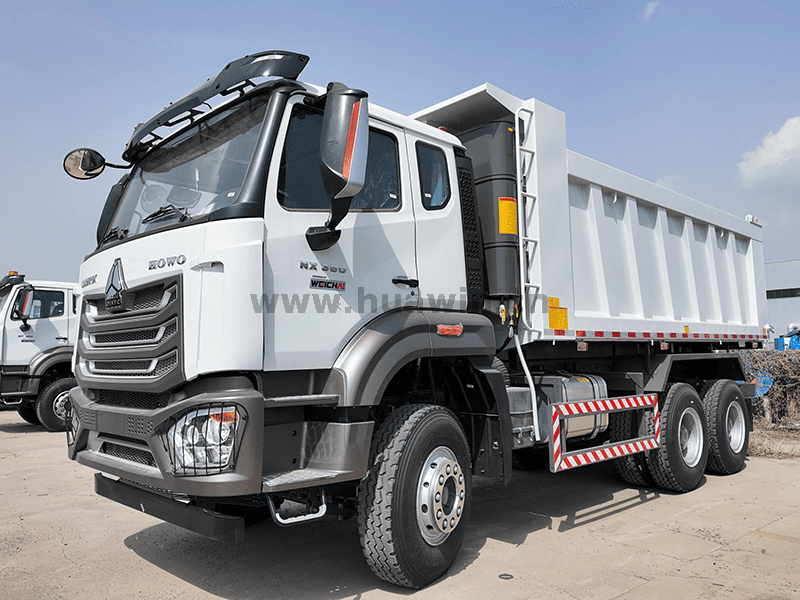

HOWO Dump Truck-NX-380-6×4 is commonly used in open pit mines, quarries and other environments to transport heavy materials such as ore, gravel, sand and gravel, etc. The HOWO NX chassis is strong in torsion resistance and has a sturdy frame, which is adaptable to bumpy, heavy-duty and frequent operations in mining areas.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk Howo NX 6X4 dump truck
Core Configuration	Front Axle	VGD95 (drum brake)
	Drive Axles	MCX16ZG / MCP16ZG, Dual Rear Axle(Drum)
	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW50 direct coupled pickup
	Engine	WP10.380E22
	Cab	HOWO H77L-R

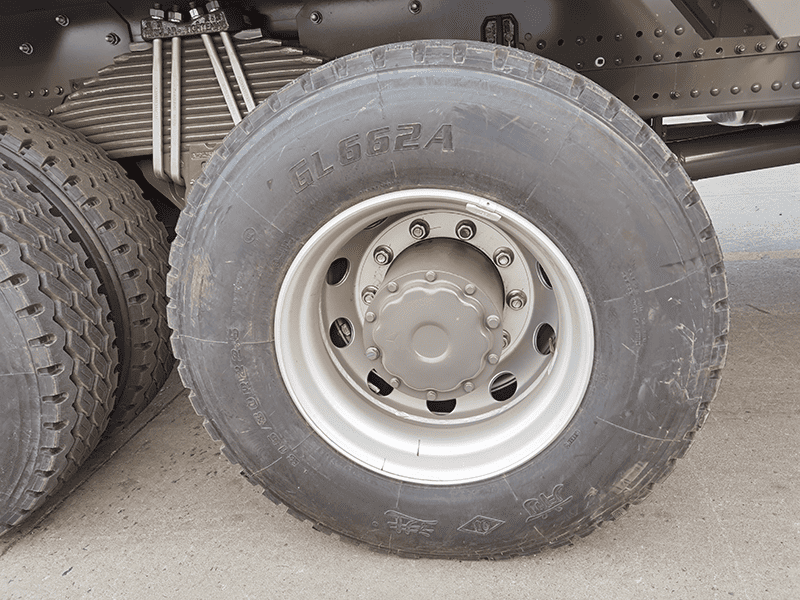

Compulsory	Tires	12.00R20(Ultra-strong steel ring/mixed pattern)
	Ratios	5.451
	Bumper	High Bumper(Full Metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle(drum)
	Steering	Right hand steering wheel
Selectable	Cabin Seats	Primary airbag + secondary easy seat
	Tail light shield	No
	Central Control Panel	MP3
	Fuel Tank	300L Fuel Tank
	Underbody start/stop switch	No
	Rearview mirrors	Manual
	Intake System	Engineering Air Intake System (Oil Filter)
	Exhaust system	Standard
	Front and rear stabilizer bars	Front and rear stabilizer bars
	Front and rear stabilizer bars	EVB
	Cab	Premium Edition

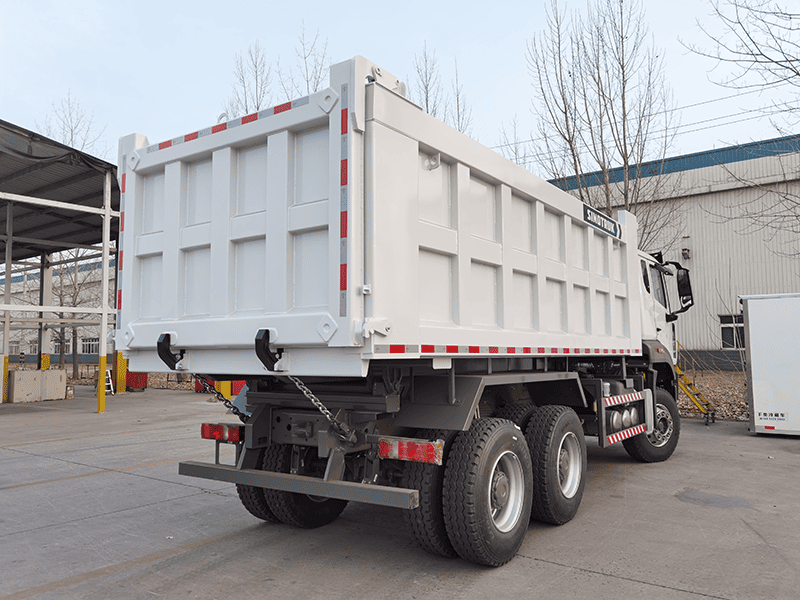

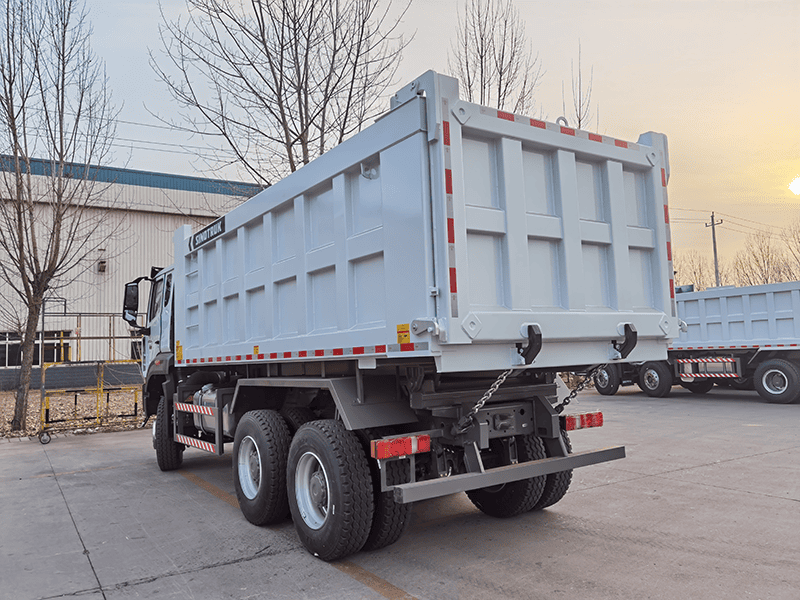

Upper Garment	Compartment size: 5600x2300x1500mm, bottom 8mm, side 6mm, general board, strengthened T type, with main fuel tank anti-theft, battery protection, the whole car wax spraying.

Optional Configurations：

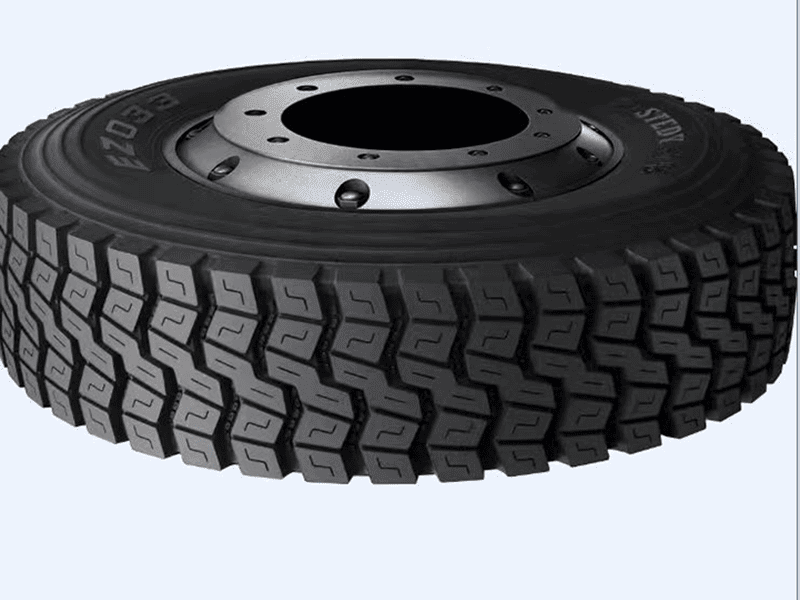

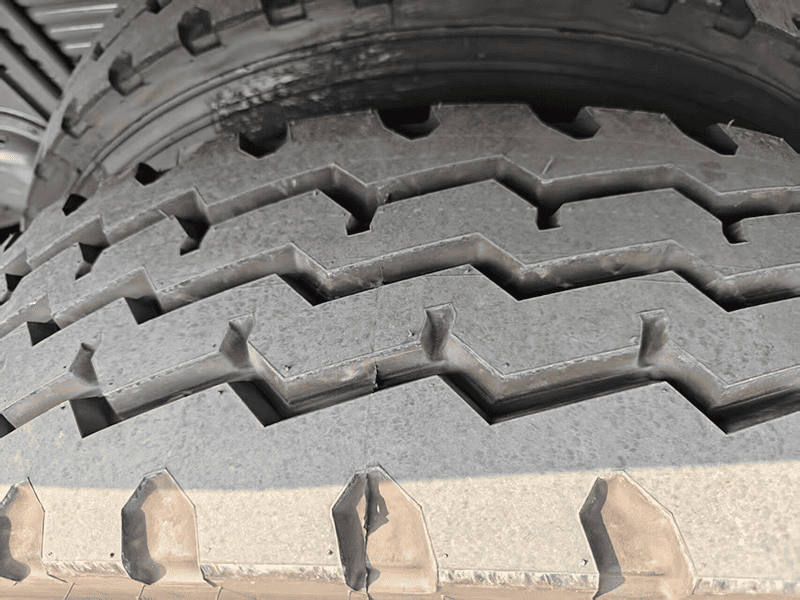

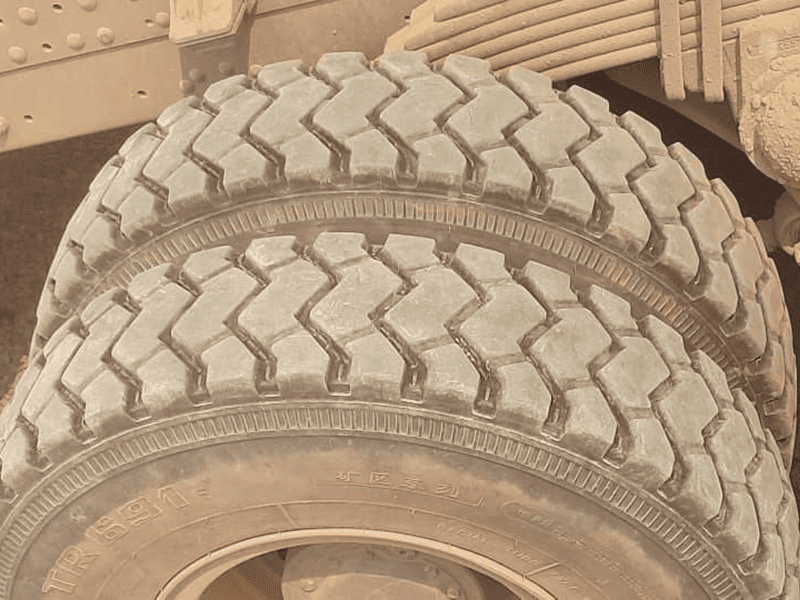

Tires: 12.00R20 radial steel tire and 315/80R22.5 tubeless tire for different areas, normal mixed pattern for construction site use, mining pattern and block pattern for mining area use.

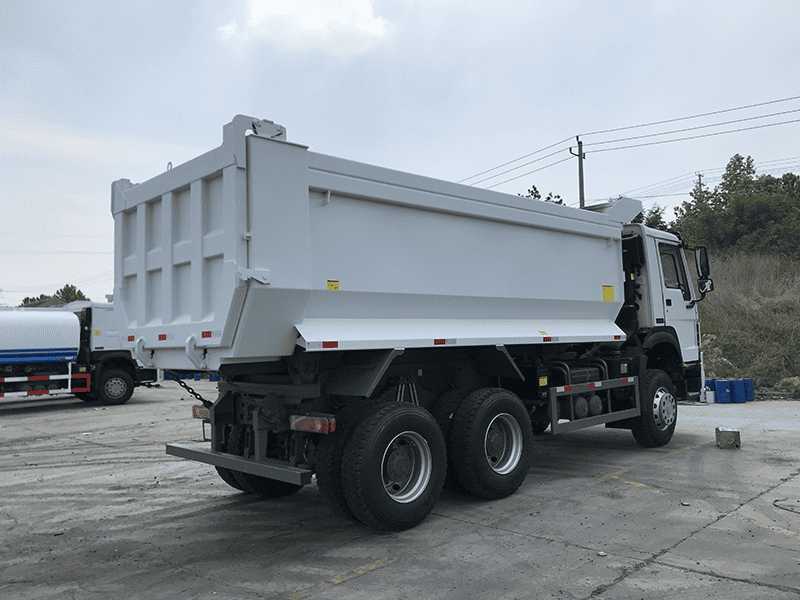

Material Of Dump Box:

a: Carbon steel Q235 and manganese steel Q345: Low cost, high reliability, and strong plasticity; widely used in many vehicle models, mainly for making rectangular buckets.

b: High-strength steel T700: Higher strength than carbon steel and manganese steel; allows for reduced plate thickness at the same hardness, thus reducing vehicle weight; mainly used for making U-shaped buckets.

c: Wear-resistant steel plate: Primarily used in mining areas; stronger than high-strength steel plate, but more expensive.

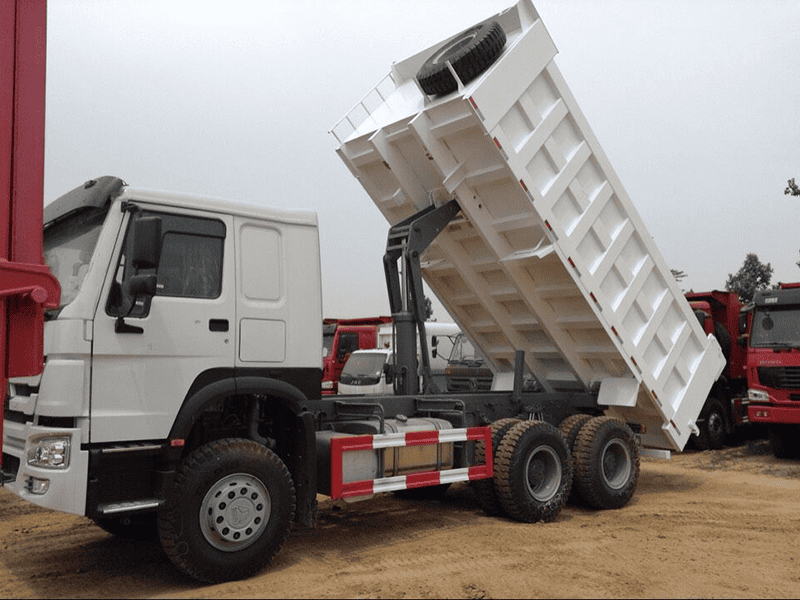

Type of lifting: front lift and middle lift:

a: front lift: it's more strong and could lift more heavy cargoes

b: middle lift: lifting system is more efficient, it takes less time to lift the dump box.
