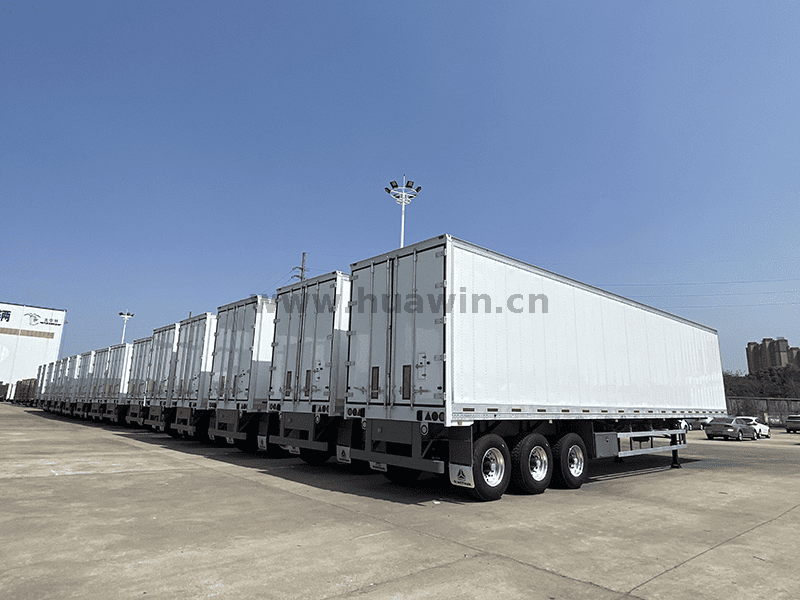

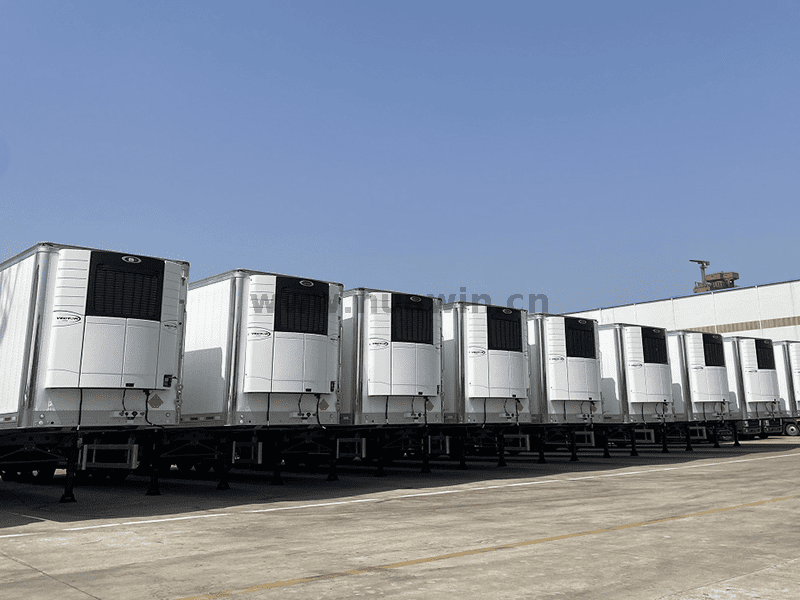

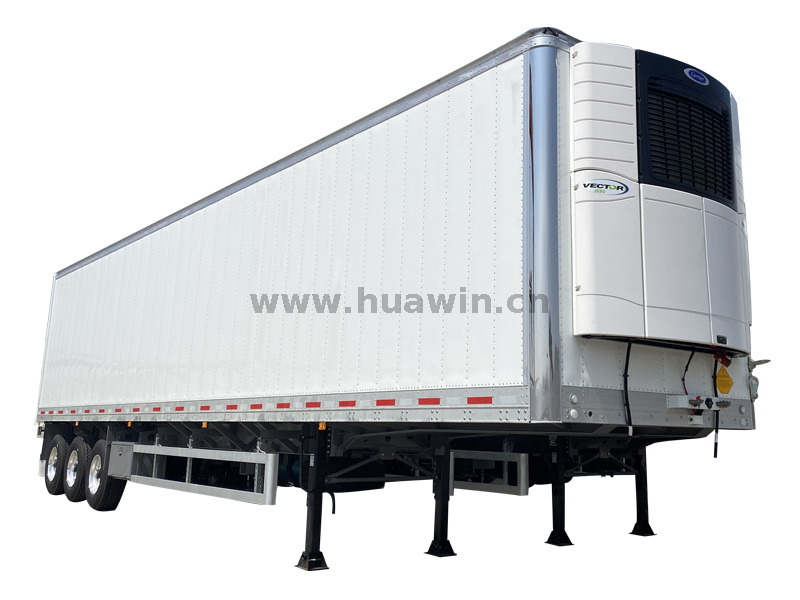

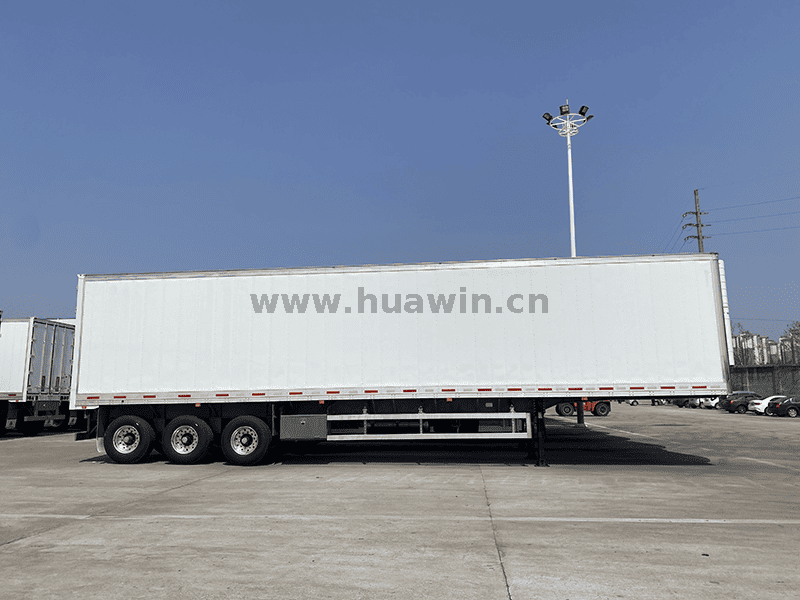

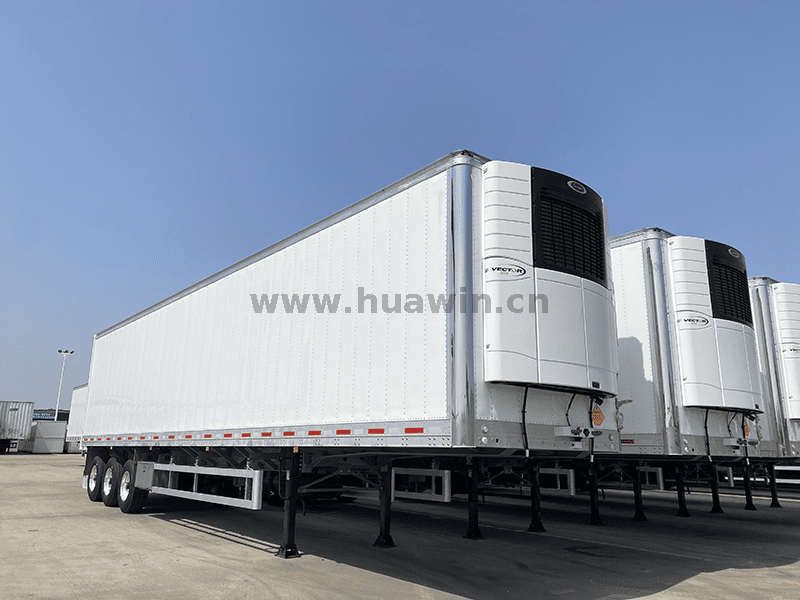

Refrigerated Semi-Trailer

Produce showcases:

● China's best  rear loader truck factory

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

The Refrigerated semi-trailer is commonly used for fresh food transportation: fruits, vegetables, meat, poultry, dairy products, eggs, etc. The Refrigerated semi-trailer is also used for the transportation of foodstuffs. Transportation of pharmaceuticals: vaccines, plasma, insulin, biological products, etc.; Transportation of chemical and industrial raw materials: some temperature-sensitive chemicals, resins, inks, glues, etc.

Configuration	Deadweight	8,800 (+/- 5%)
	Front wall	101.6mm
	Roof	100mm
	Floor	63.5 mm
	Longitudinal beams	Submerged arc welding beam reinforcement, sub beam reinforcement
	Box insulation	BASF polyurethane foam
	Side panels	76.2 mm
	Tires	type: 385/65R22.5
	Aluminum Rims	Type: 11.75-22.5
	Axles	12T*3 sets
	Suspension	Triple Axis BPW Air Suspension
	Outriggers	jost e100 jost e100
	Traction Pins	2 JOST ,exchangeable JOST
	Brake System	Pneumatic Brake, Dual Chambers, Wilburco Brake Valve
	Cold engine	carrier Vector 1550 with power backup
	Operating temperature	Temperatures down to -18°C
	Electrical system	24V, LED lamps
	Paint	Frame, primer + top coat, polyurethane paint
	Spare tire carrier	2 sets per vehicle
	Toolboxes	1 piece
Others	No warranty for cold engine,Heavy Duty Truck logo on the tail,without phone,without any CIMC logo,LED light with metal anti-theft lampshade,rear door hinge and bolt mounting reinforcement,cold engine fuel tank mounting bracket reinforcement,fuel tank cover with lock
