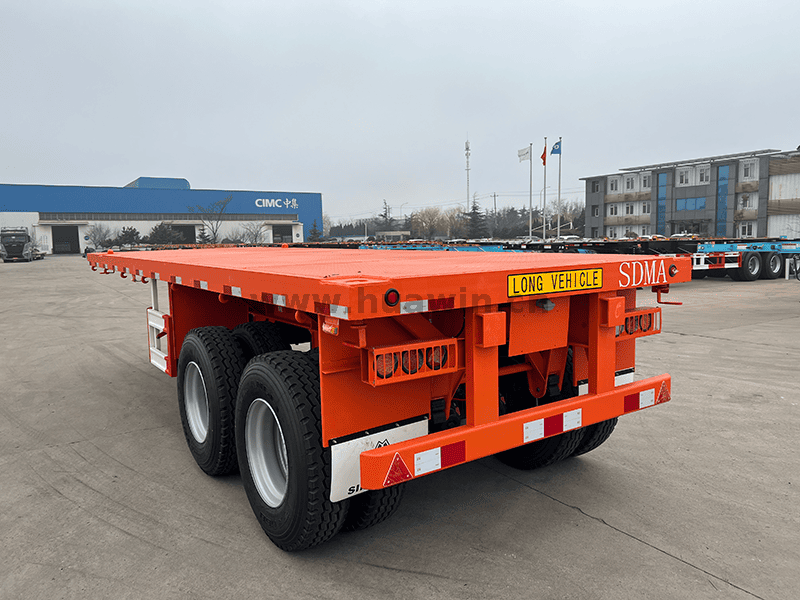

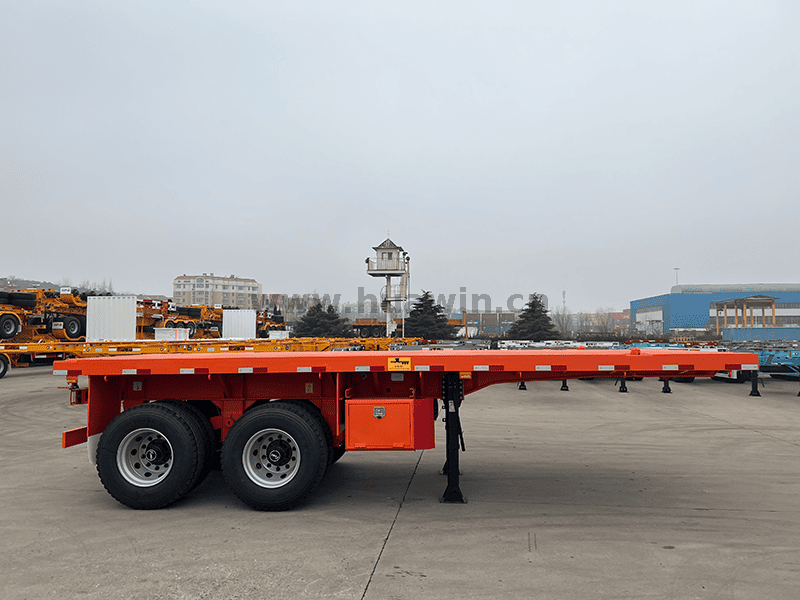

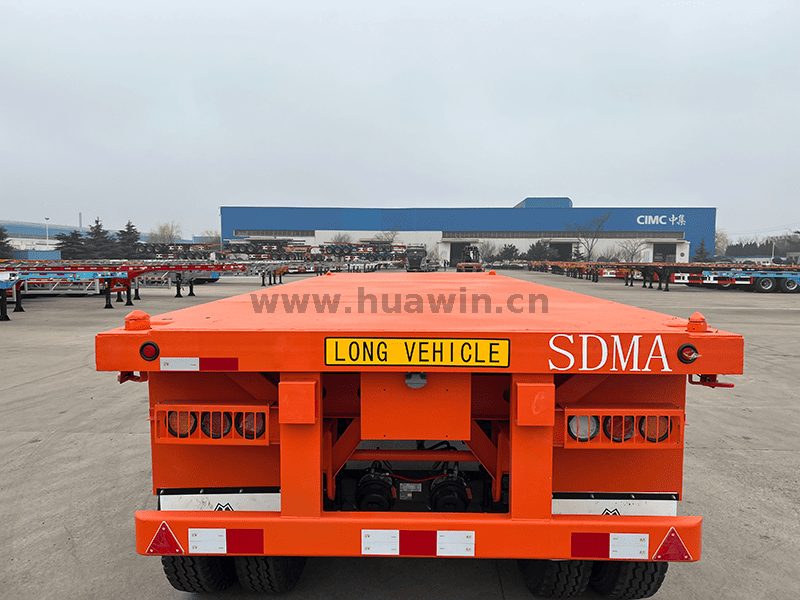

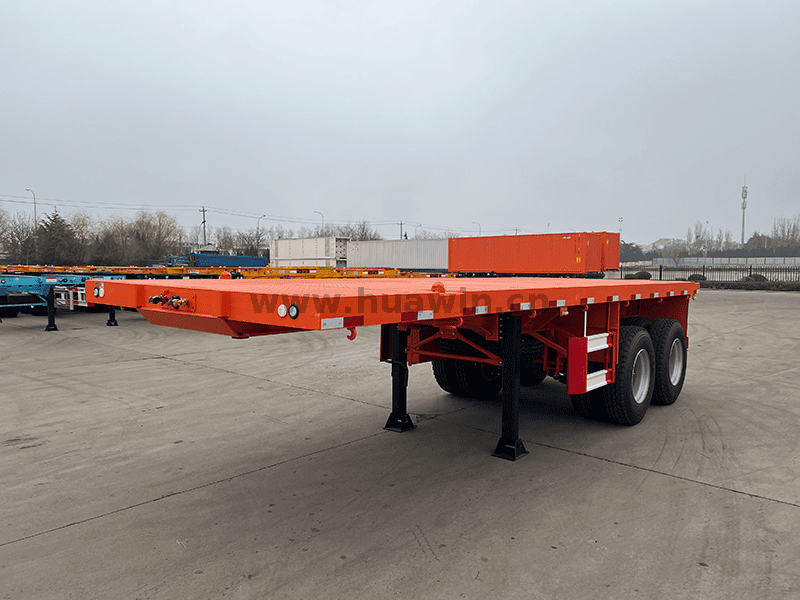

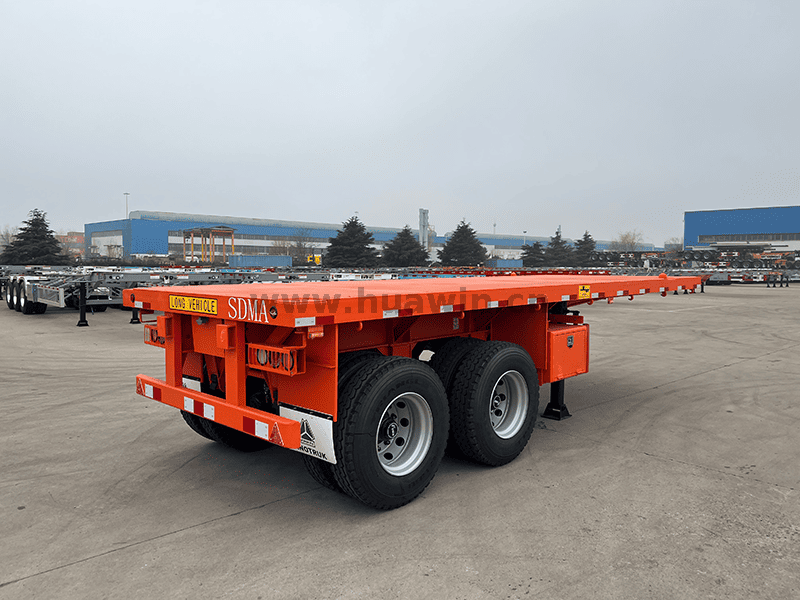

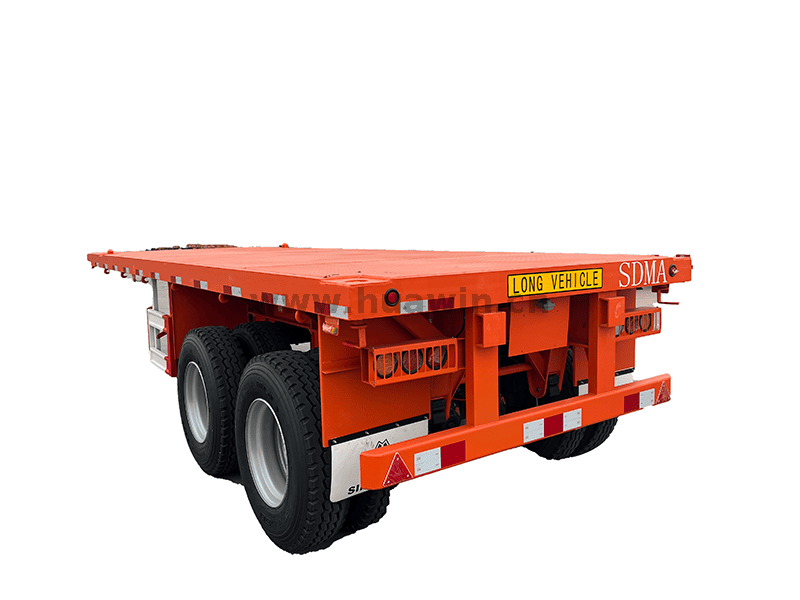

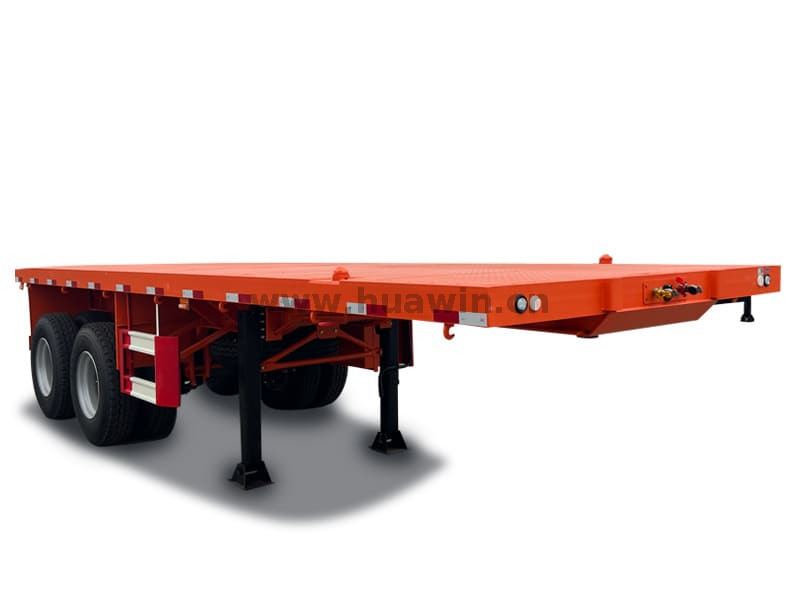

20 FT 2 Axles Flatbed Semi-Trailer

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The 20FT 2 Axles Flatbed Semi-Trailer is designed with a length of 20 feet (approximately 6.1 meters). Its compact and agile body makes it suitable for use in cities and narrow construction sites. It is also suitable for a variety of uses, including container transport, building material transport, and machinery and equipment transfer.

The main beam material of the 20FT 2 Axles Flatbed Semi-Trailer is typically Q345B high-strength steel, which offers strong compressive strength and torsion resistance. The I-beam or box-type main beam structure enhances impact resistance and stability. The platform uses patterned anti-slip steel plates to increase friction and prevent cargo from sliding.

Applications:

20FT 2 Axle Flatbed Semi-Trailer common uses to steel transportation including steel plates, coils, tubes, etc. as the flatbed design is easy to load and fix. It is usually used for medium and long distance transportation between ports, freight stations and logistics parks. Steel transportation includes steel plates, steel coils, steel pipes and so on. Because the flatbed design is easy to load, unload and fix. It can be used in conjunction with reinforcement equipment such as strapping and steel wire rope to ensure safe transportation.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

20 FT 2 Axles Flatbed Semi-Trailer
Configuration	Load capacity	32000
	Beam(mm)	Submerged Arc Welding 14/6/16mm
	Lock	4 container locks
	Paint	Primer + top coat
	Outriggers	Jost E100
	Traction Pins	3.5 assembly jost
	Brake System	Full double cavity
	Suspension	Two axle reinforced mechanical suspension
	Axles	Fuhua axle 13 tons 2pcs
	Tires	12R22.5(9pcs triangle TR668 pattern)
	Rims	22.5*9.0(9pcs)
	Toolboxes	One iron
	Spare Tire Carrier	Two per car
Others	Tail long vehicle markings; two sets of bundled transportation; tractor seat height: 1319mm unloaded; the whole vehicle does not reflect the CIMC logo; gooseneck position reinforcement;

Advantages:

Flat platform, highly adaptable:

The platform uses patterned anti-slip steel plates to enhance friction and prevent goods from sliding.

The platform has an open design, allowing for flexible loading and unloading of various shaped goods and compatibility with forklift operations.

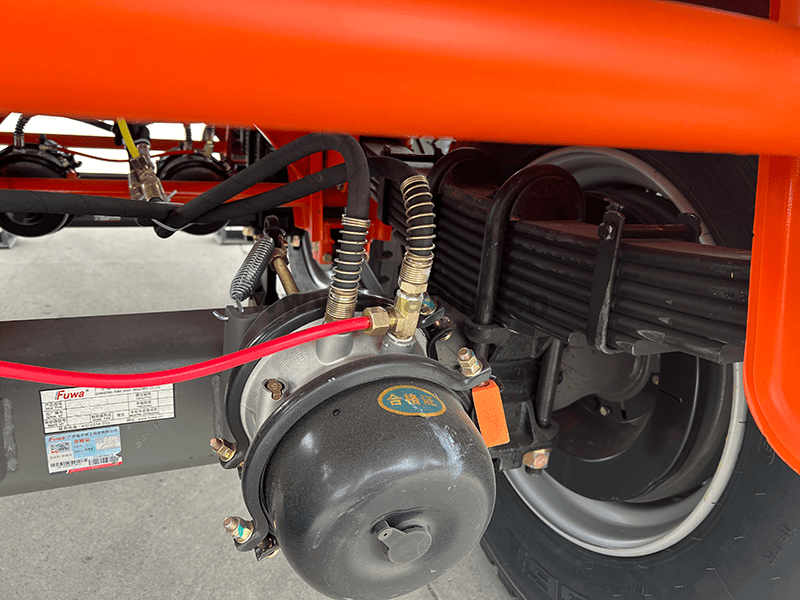

Suspension system:

Standard steel spring suspension, optional air suspension available to suit different road and load requirements;

The suspension system is well designed to reduce tire wear and improve transport stability.

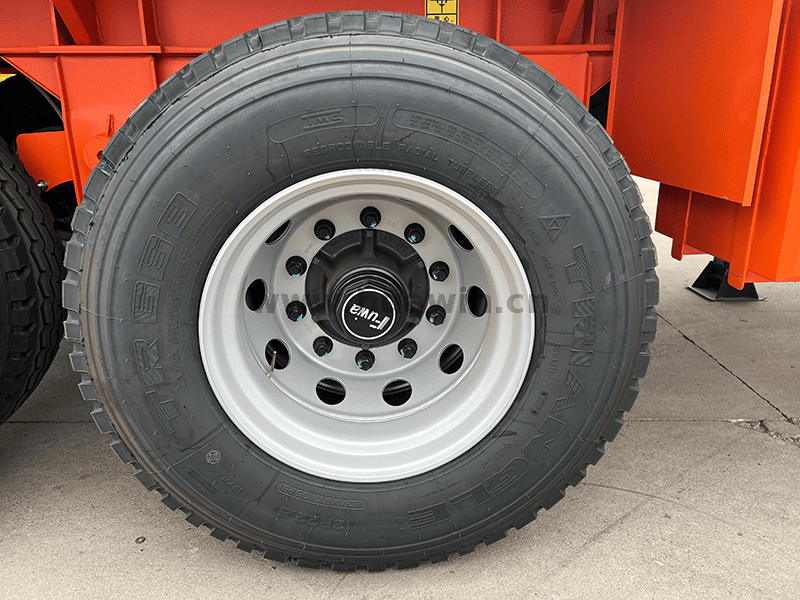

Tire configuration:

12R22.5 Radial tires, suitable for high speeds and complex road conditions;

Equipped with 1 spare tire rack and spare tire.
