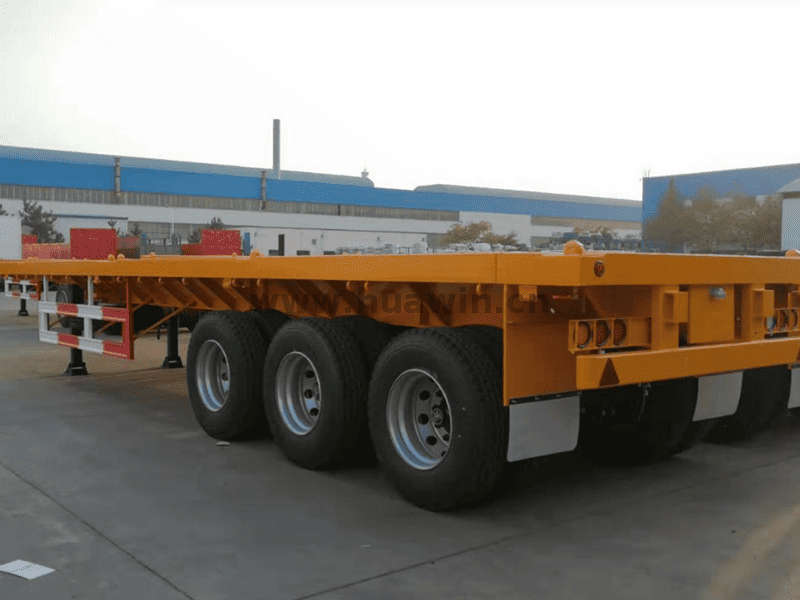

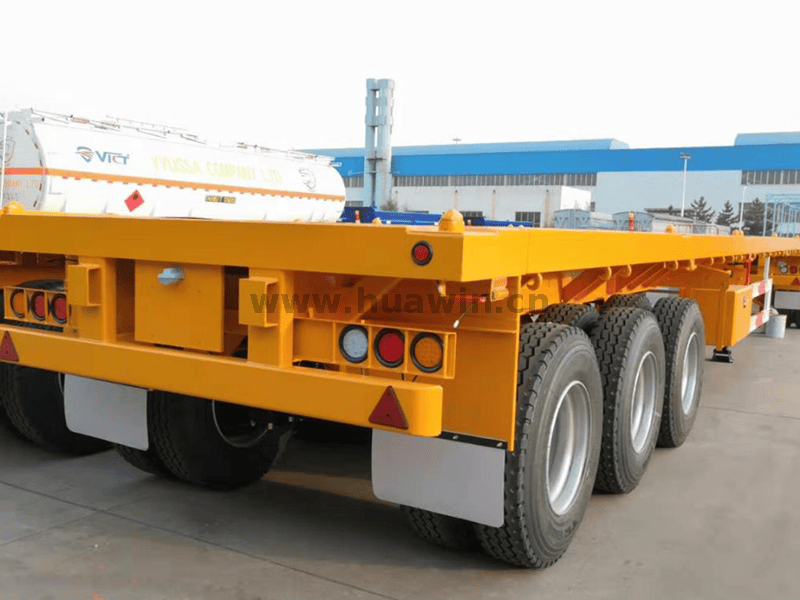

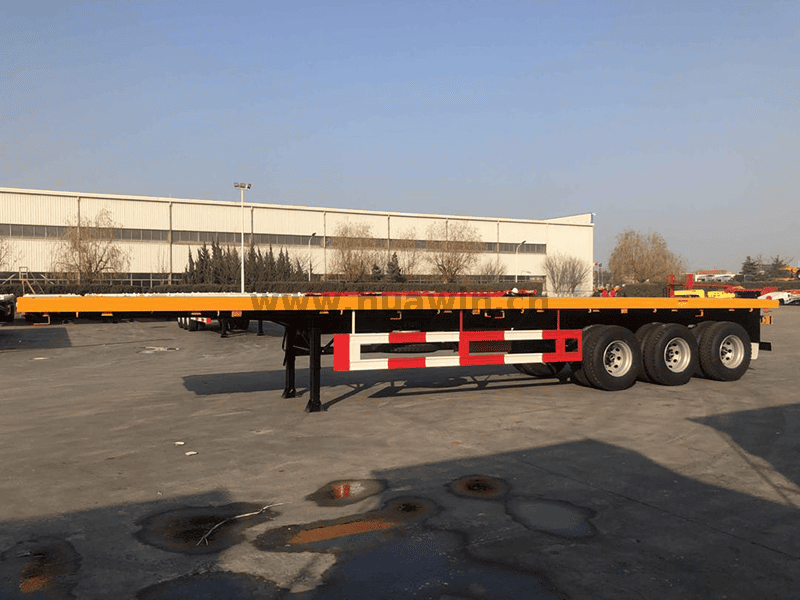

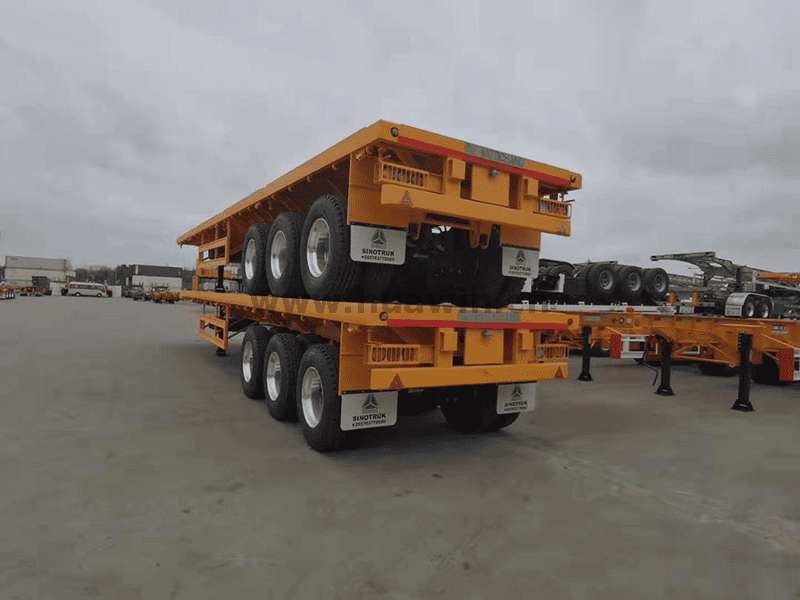

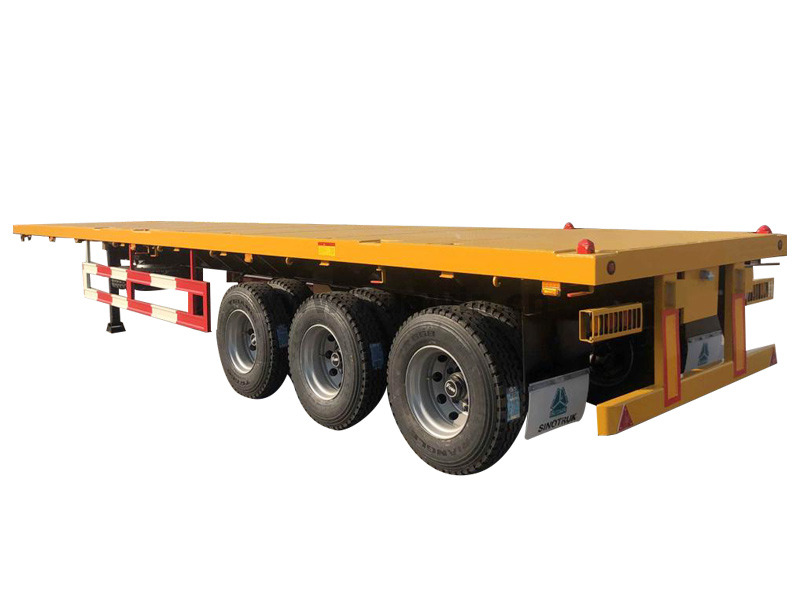

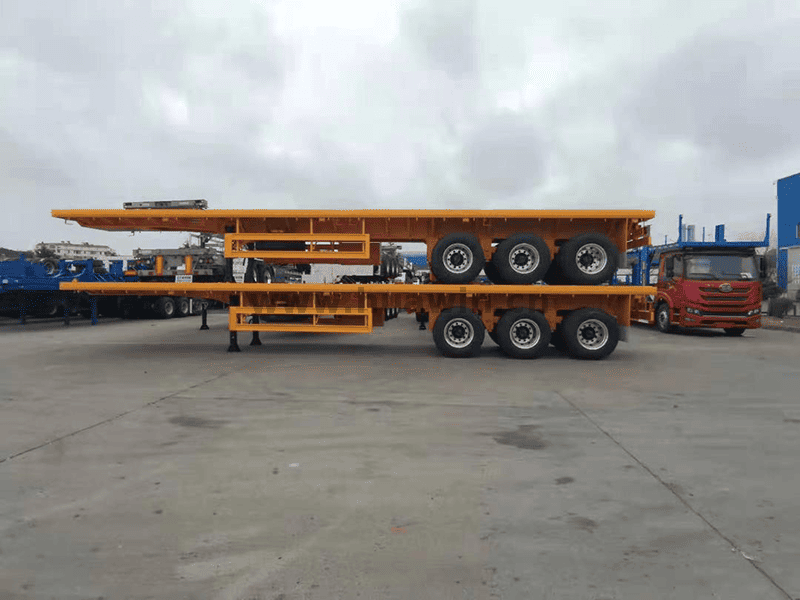

40FT 3 Axle Flatbed Semi-Trailer is a common cargo transportation vehicle, which is widely used in container transportation, steel, machinery and equipment, construction materials and other bulk cargo transportation by road. This model is popular in the logistics industry because of its high carrying capacity, simple structure and strong adaptability.
Produce showcases:
● China's best rear loader truck factory
● 30 years of experience on Fecal Suction Truck
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 24 months long guarantee time assurance
 | |
|  |
Applications:
40FT 3 Axle Flatbed Semi-Trailer common uses are,Container TransportationStandard container sizes are 20 feet and 40 feet, the flatbed truck can load a 40 feet or two 20 feet containers.2.Steel TransportationIncluding steel plate, steel coil, steel pipe, etc., because the flatbed design is easy to load and fix. It is usually used for medium and long distance transportation between ports, freight stations and logistics parks. Steel transportation includes steel plates, steel coils, steel pipes, etc. Because the flatbed design is easy to load and unload and fix. It can be used with reinforcement equipments such as bundling belt and steel wire rope to ensure the transportation safety.
| DIMENSIONS | |||
| Tare Weight | 7700kg | ||
| Overall Length | 12400mm | ||
| Overall Width | 2480mm | ||
| Payload | 45000kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| BPW/ FUWA/HJ/L1 Brand 12 ton | |||
| Suspension | Heavy duty mechanical suspension | ||
| Floor | 3mm checker plate | ||
| Leaf Spring | 13 piece Leaf spring | ||
| King Pin | JOST brand 2” Bolt-in King Pin | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||

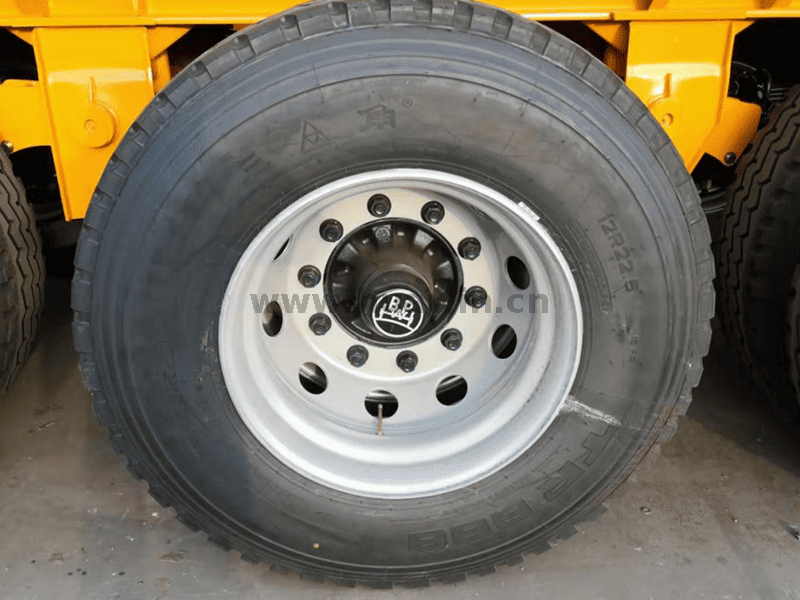

| Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
| Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
| Spare Tire | One set of spare tire including a carrier | ||

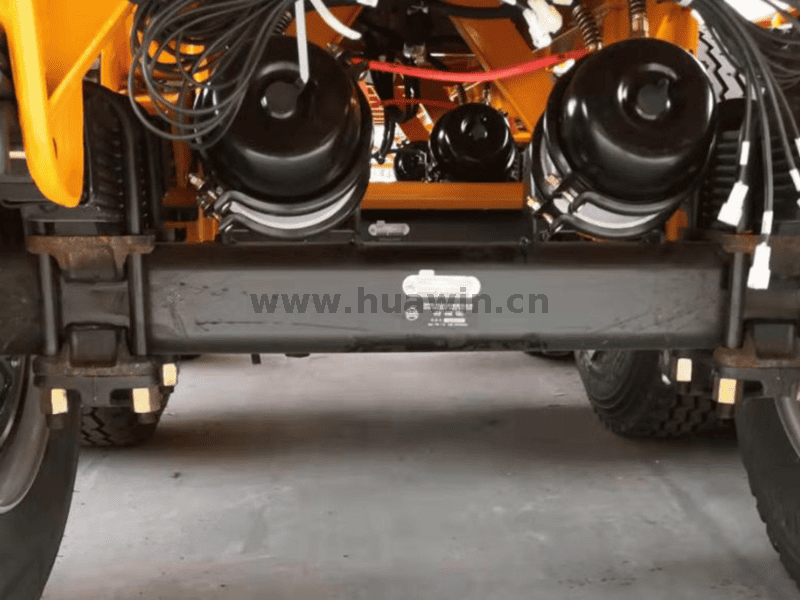

| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
