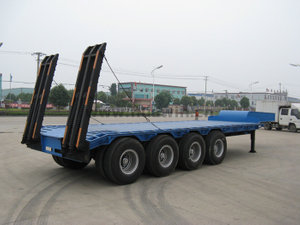

Lowbed Semi Trailer with 3 Axles for Machinery Transport
| DIMENSIONS | |||
| Tare Weight | 9000-13000 kg | ||
| Overall Length | 12000-17000 mm | ||
| Overall Width | 3000-4000 mm | ||
| Payload | 40000-60000 kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm. | ||
| Axle | 3 axles | ||
| BPW/FUWA/HJ 12/13/14/15/16 ton axles | |||
| Suspension | Heavy duty air/mechanical suspension | ||
| Floor | 3-6 mm checker plate | ||
| King Pin | JOST brand 2" or 3.5" Bolt-in King Pin | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 5.5-15,8.25-22.5, 9.0-22.5, wheel rim 12 pieces | ||
| Tire | 8.25R15, 295/80R22.5,11R22.5 tire, 12 pieces | ||
| Ramp | Mechanical /hydraulic ramp | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
Lowbed Semi Trailer with 3 Axles for Machinery Transport
| DIMENSIONS | |||
| Tare Weight | 9000-13000 kg | ||
| Overall Length | 12000-17000 mm | ||
| Overall Width | 3000-4000 mm | ||
| Payload | 40000-60000 kg | ||
| SPECIFICATIONS | |||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18-25 mm; Middle Flange10-14 mm, Bottom Flange 20-25 mm. | ||
| Axle | 3 axles | ||
| BPW/FUWA/HJ 12/13/14/15/16 ton axles | |||
| Suspension | Heavy duty air/mechanical suspension | ||
| Floor | 3-6 mm checker plate | ||
| King Pin | JOST brand 2" or 3.5" Bolt-in King Pin | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 5.5-15,8.25-22.5, 9.0-22.5, wheel rim 12 pieces | ||
| Tire | 8.25R15, 295/80R22.5,11R22.5 tire, 12 pieces | ||
| Ramp | Mechanical /hydraulic ramp | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
