SINOTRUK HOWO 4X2 Fire Truck

The SINOTRUK HOWO 4×2 Fire Truck is a professional emergency rescue vehicle designed for firefighting and rescue operations. Built on a reliable HOWO 4×2 chassis, it is equipped with a high-capacity water tank, fire pump system, and firefighting equipment to provide efficient fire suppression and emergency response capability. The truck offers stable driving performance, strong water supply capability, and flexible maneuverability, making it suitable for urban firefighting, industrial fire protection, municipal emergency rescue, airports, factories, and community safety operations.

Models:


Drive Type	4×2
Cabin	Double row HOWO cabin, with A/C
Passenger Capacity	6 persons
Engine Brand	SINOTRUK
Engine Model	WD615.87
Engine Power	290 HP / 257 KW
Engine Type	6-cylinder in-line, turbocharged and intercooled
Emission Standard	Euro II
Transmission Model	HW15710 / 8-Speed Transmission
Gear Configuration	10 Forward & 2 Reverse
Wheelbase	4600 / 4700 mm

Application

The SINOTRUK HOWO 4×2 Fire Truck features powerful firefighting performance, reliable water supply capability, and stable emergency rescue operation. Equipped with a durable HOWO chassis, high-efficiency fire pump system, large-capacity water tank, and advanced fire monitor, it can quickly respond to firefighting and rescue missions under various emergency conditions. Its stable driving performance, flexible maneuverability, and efficient water spraying system ensure excellent operational efficiency for urban firefighting, industrial fire protection, municipal emergency rescue, and community safety operations.

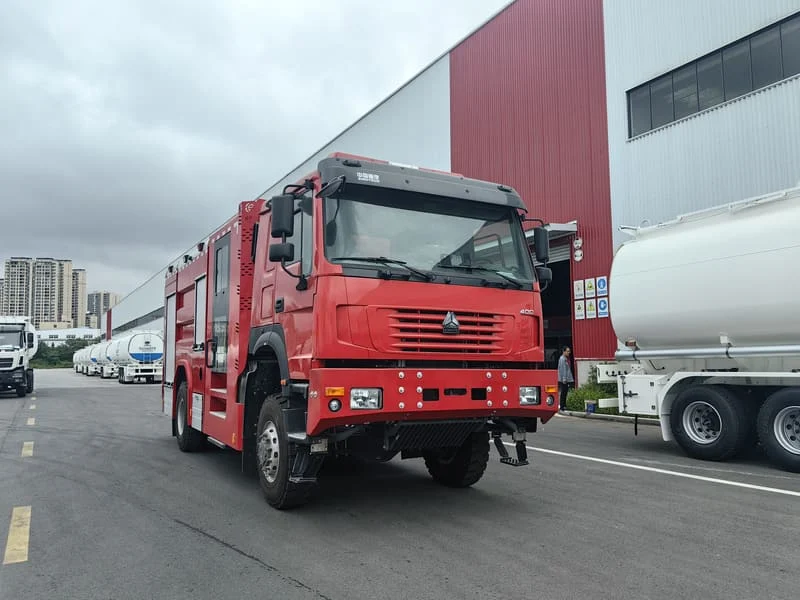

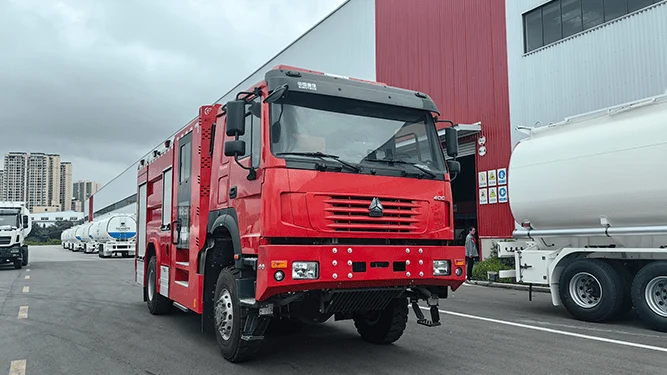

SINOTRUK HOWO 4X2 Fire Truck-2

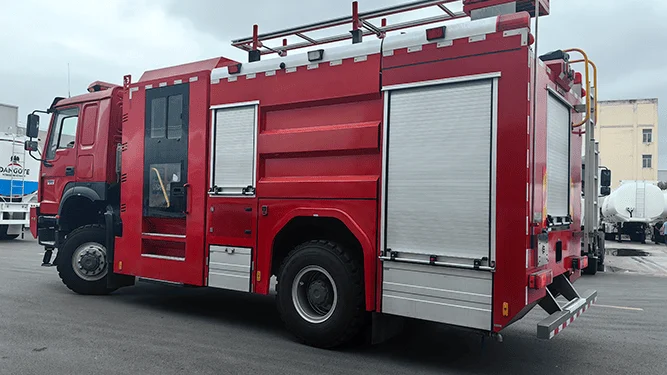

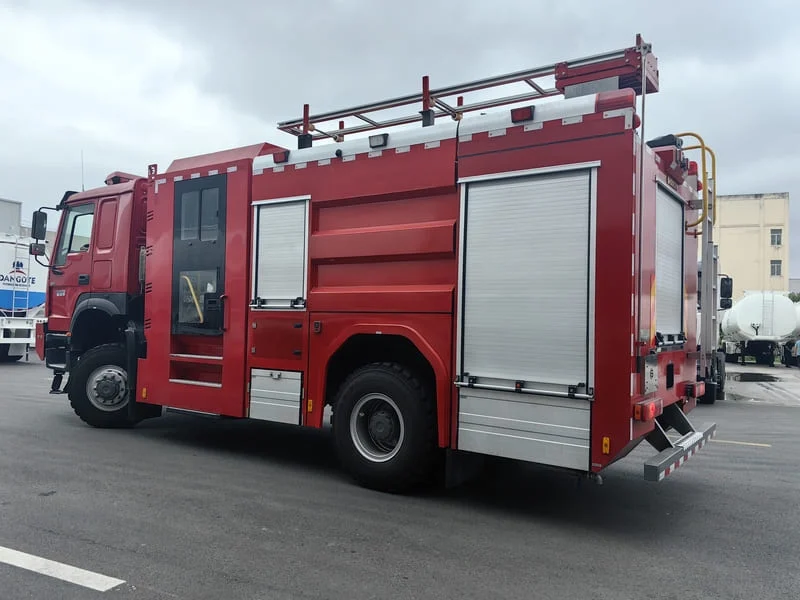

SINOTRUK HOWO 4X2 Fire Truck-4

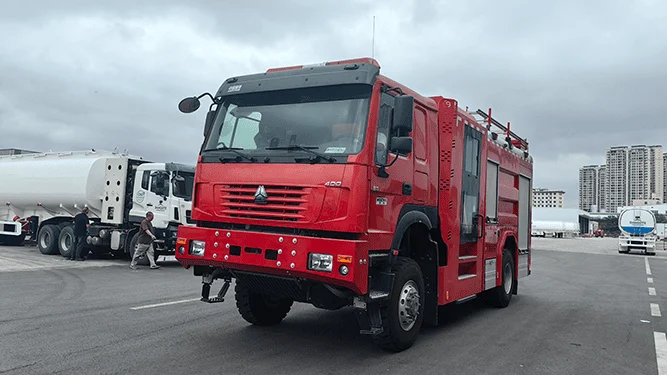

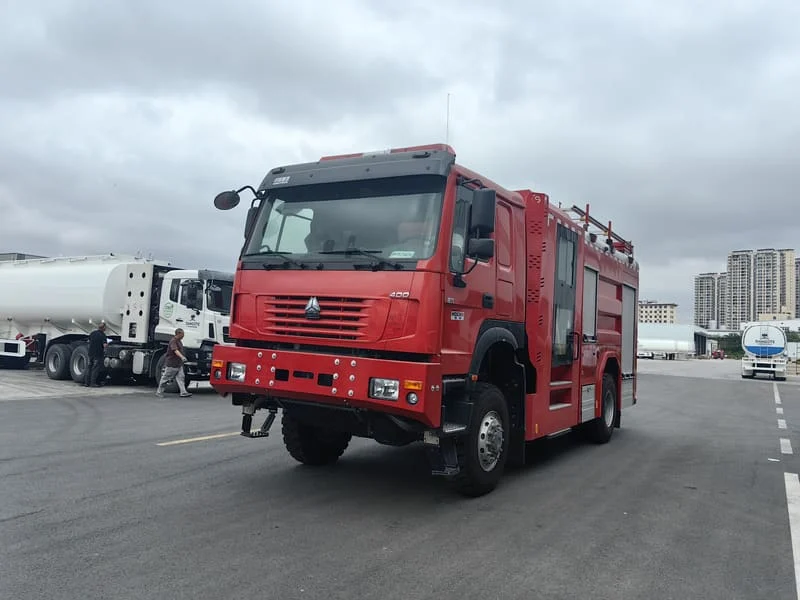

SINOTRUK HOWO 4X2 Fire Truck-3

Specifications:


Item	Specification
Vehicle Type	SINOTRUK HOWO 4×2 Fire Truck
Drive Type	4×2
Cabin	Double row HOWO cabin, with A/C
Passenger Capacity	6 persons
Engine Brand	SINOTRUK
Engine Model	WD615.87
Engine Power	290 HP / 257 KW
Engine Type	6-cylinder in-line, turbocharged and intercooled
Emission Standard	Euro II
Transmission Model	HW15710 / 8-Speed Transmission
Gear Configuration	10 Forward & 2 Reverse
Wheelbase	4600 / 4700 mm
Front Axle Capacity	7000 KG
Rear Axle Capacity	16000 KG
Tire Specification	12R22.5 or 315/80R22.5
Tire Quantity	7 pcs including one spare tire
Fuel Tank Capacity	300 L
Water Tank Capacity	5000–6000 L
Foam Tank Capacity	1000–2000 L
Fire Pump Model	CB10/60 low-pressure fire pump
Fire Pump Flow Rate	60 L/s
Fire Pump Pressure	1.0 MPa
Fire Monitor Model	SP30
Fire Monitor Range	Water ≥55m / Foam ≥40m
Fire Pump Suction Depth	9 m
Fire Pump Diversion Time	≤50 s
Max Speed	102 km/h
Braking System	Air brake
Overall Dimension	Approx. 8400×2500×3425 mm
Application	Urban firefighting, industrial fire protection, emergency rescue operations


Item	Specification
Vehicle Type	SINOTRUK HOWO 4×2 Fire Truck
Drive Type	4×2
Cabin	Double row HOWO cabin, with A/C
Passenger Capacity	6 persons
Engine Brand	SINOTRUK
Engine Model	WD615.87
Engine Power	290 HP / 257 KW
Engine Type	6-cylinder in-line, turbocharged and intercooled
Emission Standard	Euro II
Transmission Model	HW15710 / 8-Speed Transmission
Gear Configuration	10 Forward & 2 Reverse
Wheelbase	4600 / 4700 mm
Front Axle Capacity	7000 KG
Rear Axle Capacity	16000 KG
Tire Specification	12R22.5 or 315/80R22.5
Tire Quantity	7 pcs including one spare tire
Fuel Tank Capacity	300 L
Water Tank Capacity	5000–6000 L
Foam Tank Capacity	1000–2000 L
Fire Pump Model	CB10/60 low-pressure fire pump
Fire Pump Flow Rate	60 L/s
Fire Pump Pressure	1.0 MPa
Fire Monitor Model	SP30
Fire Monitor Range	Water ≥55m / Foam ≥40m
Fire Pump Suction Depth	9 m
Fire Pump Diversion Time	≤50 s
Max Speed	102 km/h
Braking System	Air brake
Overall Dimension	Approx. 8400×2500×3425 mm
Application	Urban firefighting, industrial fire protection, emergency rescue operations

Feature:

1. Powerful Firefighting Performance
Equipped with a high-efficiency fire pump system.
Provides strong water pressure and long spraying distance.
Suitable for rapid firefighting and emergency rescue operations.

SINOTRUK HOWO 4X2 Fire Truck-2

SINOTRUK HOWO 4X2 Fire Truck-4

SINOTRUK HOWO 4X2 Fire Truck-3

2. Reliable Water Supply System
Large-capacity water tank ensures continuous firefighting operation.
Stable water delivery improves rescue efficiency.
Suitable for urban, industrial, and community fire protection.

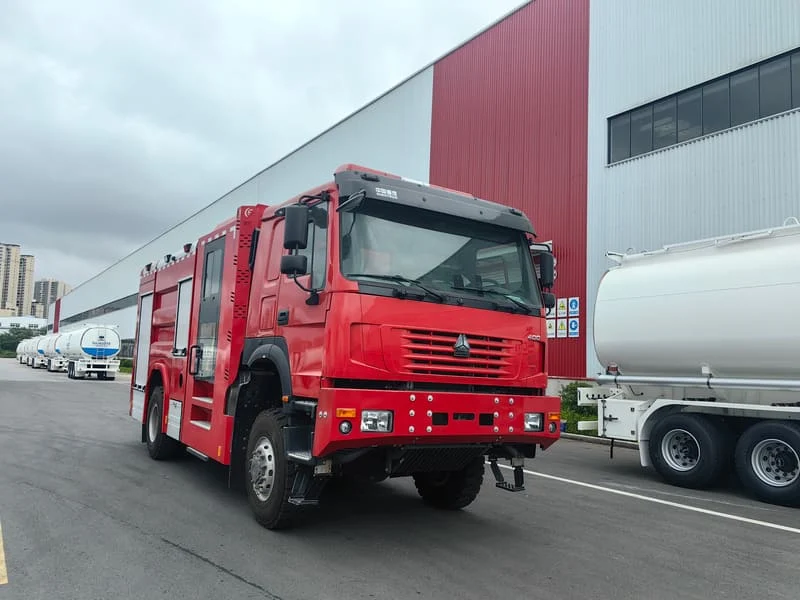

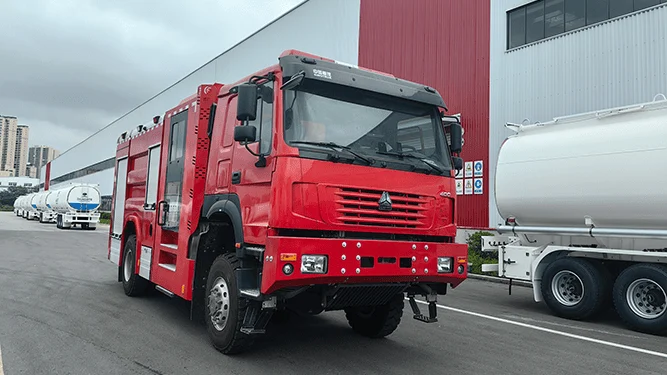

SINOTRUK HOWO 4X2 Fire Truck-1

SINOTRUK HOWO 4X2 Fire Truck-4

SINOTRUK HOWO 4X2 Fire Truck-2

3. Durable HOWO Chassis
Reinforced HOWO 4×2 chassis provides stable driving performance.
Strong carrying capacity for firefighting equipment and water tank.
Reliable operation under emergency working conditions.

SINOTRUK HOWO 4X2 Fire Truck-4

SINOTRUK HOWO 4X2 Fire Truck-3

SINOTRUK HOWO 4X2 Fire Truck-2
