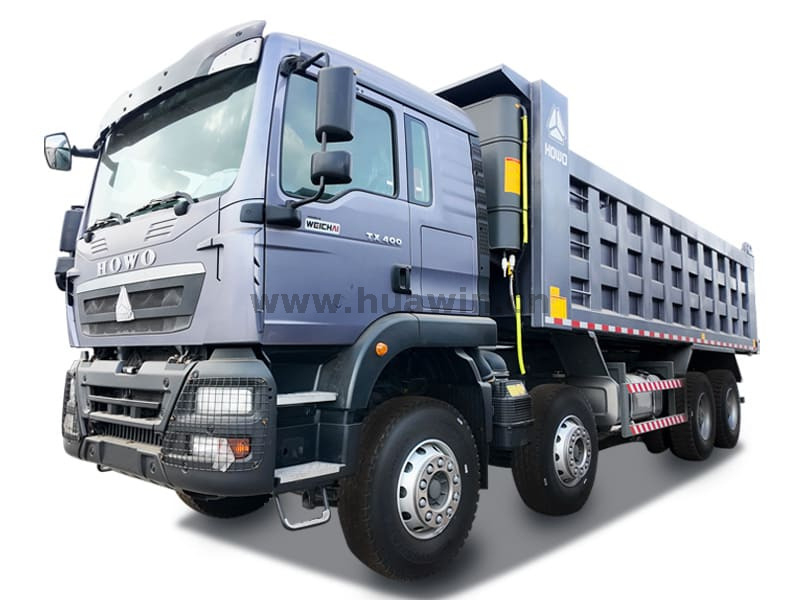

Sinotruk Howo TX 8x4 Dump Truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The Sinotruk Howo Dump Truck-TX-8x4 features a powerful drivetrain system: equipped with the WP10.380E22 engine, delivering 380 HP, with high torque output, making it suitable for complex road conditions such as mountainous areas, mining sites, and heavy-duty applications. Additionally, the 8×4 drive configuration (front dual-axle steering, rear dual-axle drive) provides excellent load-carrying capacity; The chassis structure is made of high-strength steel, offering excellent resistance to twisting and impact.

The Sinotruk Howo Dump Truck-TX-8x4 features a large-capacity cargo box design with dimensions of approximately 8145*2496*3170. It is constructed with wear-resistant steel plates and is suitable for transporting various materials such as sand, gravel, coal, and minerals. The truck is equipped with a powerful hydraulic lifting system, ensuring high unloading efficiency and easy maintenance.

Applications:

Sinotruk Howo Dump Truck-TX-8x4 is commonly used in mining transportation: transporting heavy materials such as ore, coal, sand and gravel; suitable for open-pit mines, metal mines, coal mines and other operating environments; the strong structural frame and high-power engine support long-time, heavy-duty operation. Construction site Transporting concrete, construction waste, masonry, earth, etc.; suitable for urban infrastructure construction, large-scale construction projects; can enter and exit complex terrain and narrow passageways of construction sites.

Cab：

The cab of the Sinotruk Howo Dump Truck-TX-8x4 features a streamlined design with optimized drag coefficient for improved fuel efficiency. The large front windshield provides a wide field of view for enhanced driving safety. The front end features a polygonal grille and “HOWO” lettering for high brand recognition.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk Howo Dump Truck-TX-8x
Core Configuration	Length, width and height(mm)	8145*2496*3170
	Drive Axle	MCX16ZG Dual Rear Axle(Drum)
	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(11/12)
	Transmission	HW19710 gearbox + HW50 direct coupled pickup
	Engine	WP10.380E22 engine
	Cab	TX-F cab
Compulsory	Tires	315/80R22.5 tires(mixed tread/18PR)
	Ratios	5.451
	Bumper	High bumper (all metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle (drum)
	Steering	Right hand steering wheel
Selectable	Air conditioning unit	Heating and cooling air conditioning
	Cabin Overhead Lamps	Single police light on cab roof
	Cabin	Classic version
	Battery	165AH battery
	Fuel tank	300L fuel tank
	Intake system	Engineering air intake system
	Exhaust system (oil filter)	Standard exhaust system
	Wheel option	Reinforced wheels
Upper Garment	Compartment size: 5600x2300x1500mm, bottom 8mm, side 6mm, general board, strengthened T type, with main fuel tank anti-theft, battery protection, the whole car wax spraying.

Tires：

The Sinotruk Howo Dump Truck-TX-8x4 uses 315/80R22.5 tires (mixed tread/18PR). These tires combine lateral and longitudinal tread patterns to balance traction and steering performance. The central tread blocks are widened to enhance stability at high speeds. The open shoulder tread design improves drainage and heat dissipation, enhancing performance on wet and slippery roads.
