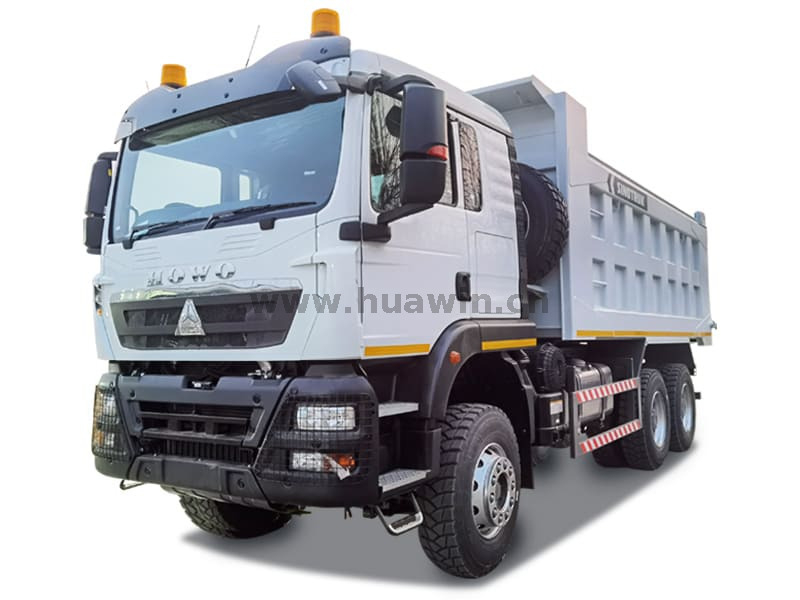

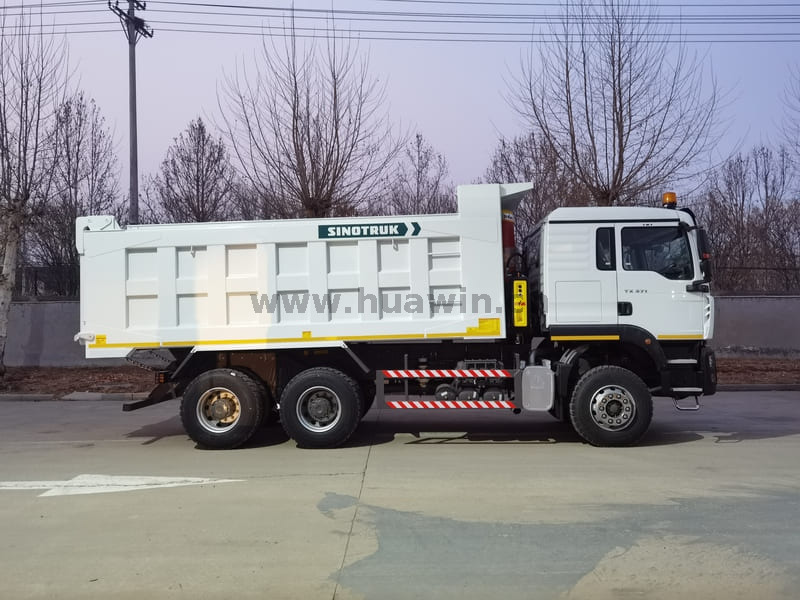

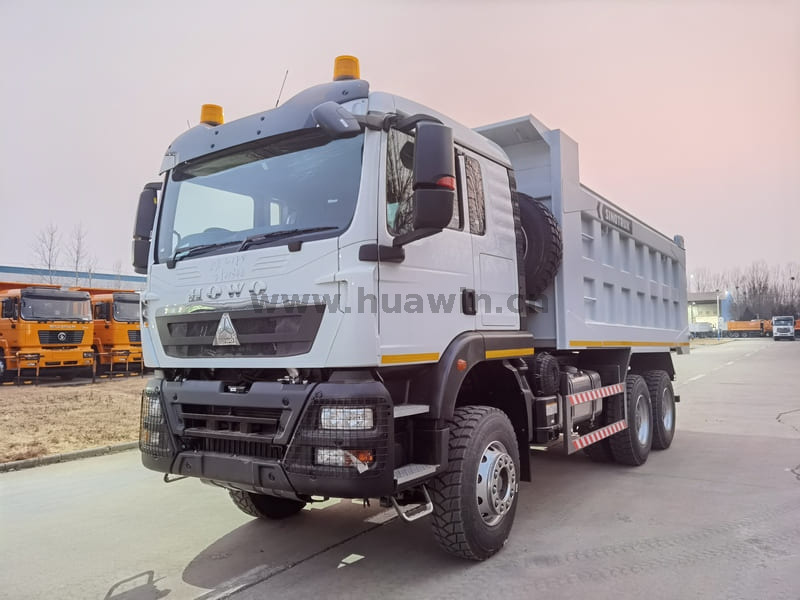

Sinotruk Howo TX 6X4 Dump Truck

Products Showcases:

● One of the best dump truck and tractor factories in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12 months long guarantee time assurance

Features:

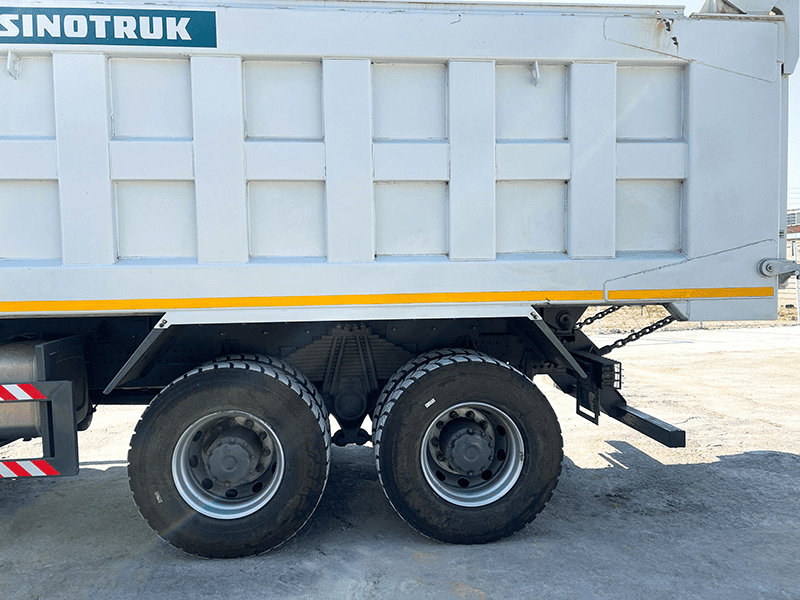

The Sinotruk Howo TX 6X4 Dump Truck is built on the WD technology platform, with a chassis made of high-strength steel stamped into shape for a more robust structure. The vehicle's layout is scientifically designed, offering superior load-bearing capacity and suitability for high-intensity operational conditions. Power output ranges from 371 hp to 430 hp, with high torque output and strong acceleration, making it ideal for heavy-duty hill climbing. It meets Euro II to Euro V emissions standards and is exportable to multiple international markets. Additionally, the 6×4 drive configuration features dual rear axles with heavy-duty 16-ton-class drive axles, providing a robust heavy-duty truck chassis.

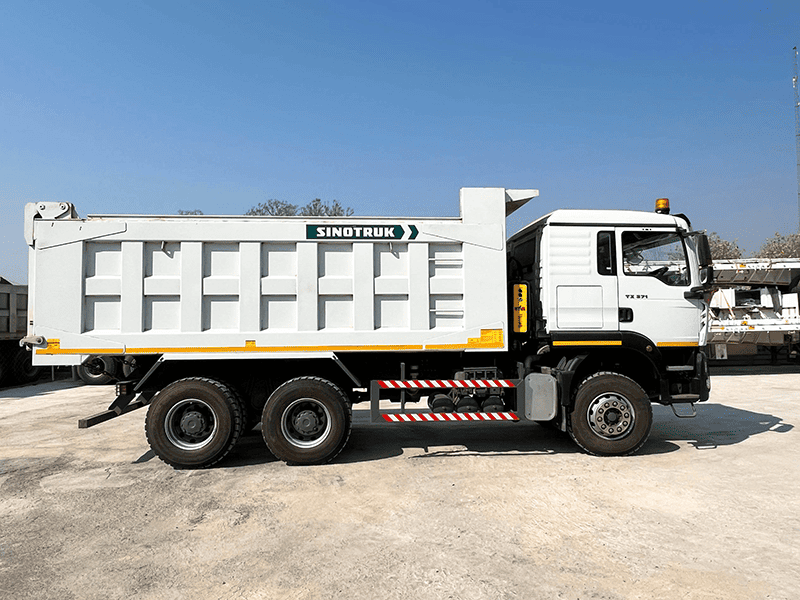

Sinotruk HOWO TX 6X4 dump truck can also be equipped with U-shaped cargo box or special-shaped cargo box according to needs, suitable for transporting sand, gravel, slag, coal and other stacking;

Applications:

Sinotruk Howo TX dump truck is mainly used for short-distance transport of bulk materials such as ore, coal, sand and gravel, etc and used for transporting soil, construction waste, concrete raw materials, etc, in large-scale earthworks, foundation construction, urban infrastructure and other projects.

Interior:

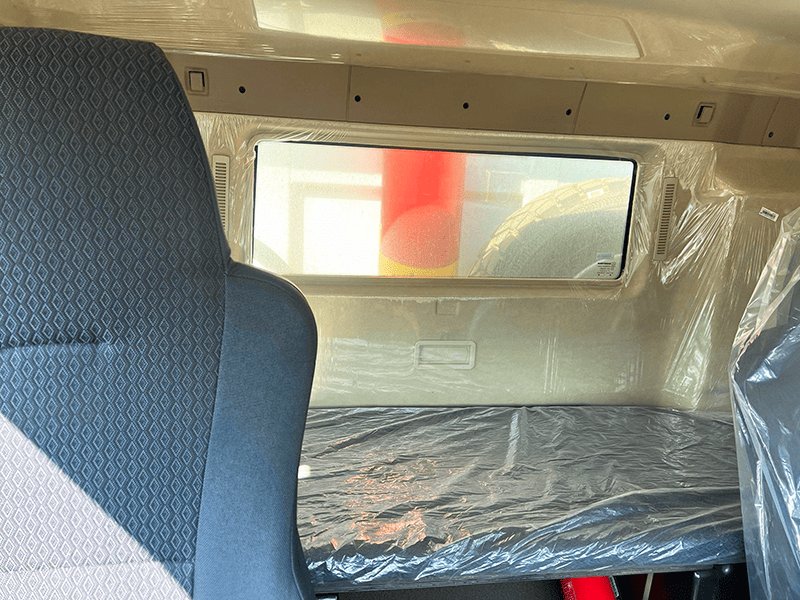

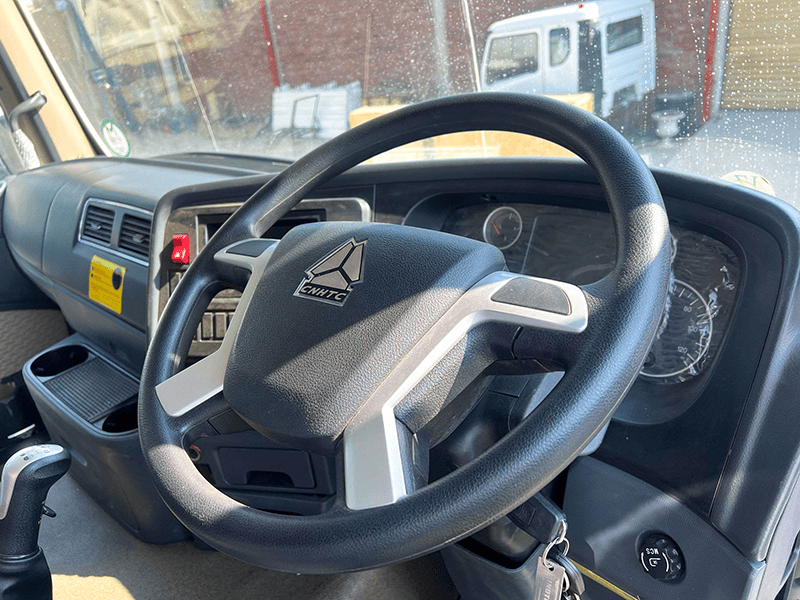

The cab of the Sinotruk Howo TX dump truck features a high-roof or mid-roof design, offering a spacious interior that facilitates easy entry and exit, as well as comfortable movement. The layout is clear and well-organized, with control areas thoughtfully distributed to enable drivers to operate and control the vehicle quickly and efficiently. The driver's seat is equipped with an air-cushioned suspension seat, adjustable for height and backrest angle, reducing fatigue during prolonged driving. The main driver's position offers an unobstructed view, with minimal obstruction from the A-pillars, and is fitted with wide-angle rearview mirrors and lower-view mirrors to enhance safety.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk Howo TX 6X4 dump truck
Basic Configuration	English instrumentation, fire extinguisher, reversing buzzer, front and rear headlamp protectors, metal bumper protection grille (optional bull bar not fitted), anti-theft device for the battery box, and an additional level of Parker coarse filtering
Core Configuration	LWH(mm)	8655*2576*3436

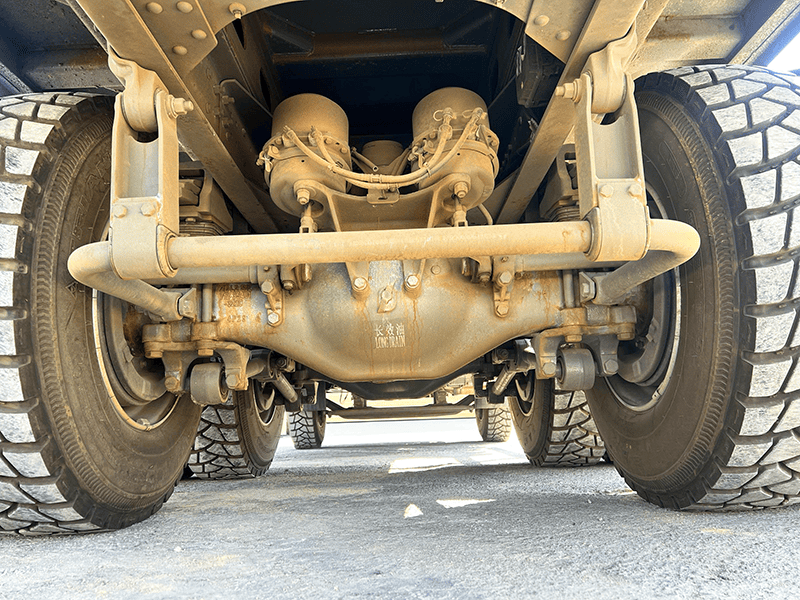

	Drive axle	MCX16ZG Dual Rear Axle (Drum)
	Weight (kg)	17760
	Chassis	Double frame (8+8/300)
	Suspensions	Front and rear reinforced multi-leaf springs (11/12)
	Transmission	HW19710 gearbox + HW50 direct coupled extractor

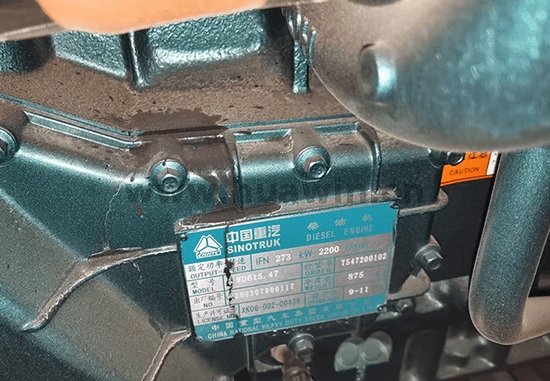

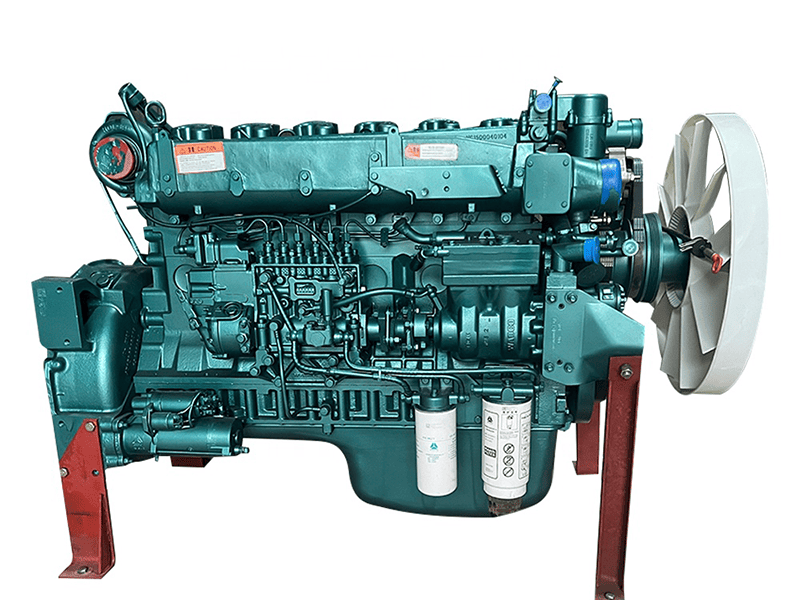

	Engines	WD615.47 Engine
	Cabs	TX-F cab
compulsory	Tyres	315/80R22.5 tyre (mining block pattern/20PR)
	Speed ratio	5.451
	Bumper	High Bumper
	ABS Control System	Without ABS
	Steering Wheel	Right-hand drive
selectable	Optional cab overhead light fixture	None
	Engine Options	EVB and 71 degree thermostat
	Cab Option	Classic Edition
	Battery option	165AH Battery
	Fuel tank option	300L Fuel Tank
	Air intake system options	Engineering air intake system (oil filter)
	Exhaust system	Standard exhaust system
	Wheel Option	Front and rear reinforced wheels

Tires：

The Sinotruk Howo TX 6x4 dump truck is equipped with 315/80R22.5 tires (mining block pattern/20PR), suitable for heavy-duty trucks, construction vehicles, dump trucks, and more. The tire features a deep block pattern design with large blocks and deep grooves, enhancing wear resistance and extending service life. The tread uses a cut-resistant and tear-resistant composite rubber compound, capable of withstanding impacts from sharp debris such as stones and gravel. It offers a long service life and is ideal for harsh conditions such as mines, gravel roads, and construction sites.
