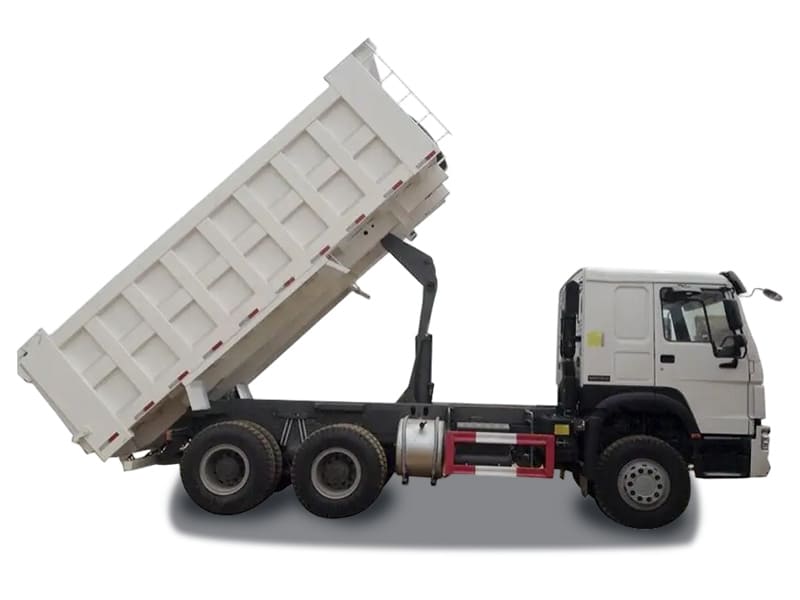

SINOTRUK HOWO 6X4 10 Wheels Middle Tipping Truck

SINOTRUK HOWO 6X4 dump trucks have two types of lifting styles, front tipping and middle tipping for the hydraulic system. If the payload over 30T, front tipping will be better.
Color:
Availability:
Quantity:
  • ZZ3257N3447
  • SINOTRUK HOWO
  • 8704

HOWO Middle Tipping Dump Truck

Specifications

SINOTRUK HOWO 6x4 Dump Truck

Chassis  Model

ZZ3257N3447

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 380HP, 420HP is optional)

Transmission

HW19710, 10 forward gears & 2 reverse gears.

Steering

ZF power steering, hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with doubleT-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing,  central single reduction with hub reduction and with differential locks between  wheels and axles.

Ratio: 4.42, 5.73 is optional

Propeller  Shaft

Double universal joint  propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile  parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all  cold riveted cross members

Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual  circuit compressed air brake

Parking brake (emergency  brake): spring energy, compressed air operating on front shaft and rear  wheels

Auxiliary brake: engine  exhaust brake

Electrics

Operating voltage: 24 V,  negative grounded

Starter: 24 V, 5.4  Kw

Alternator: 3-phase, 28  V, 1500 W

Batteries: 2 x 12 V, 165  Ah

Cigar-lighter, horn,  headlamps, fog lights, brake lights, indicators and reverse  light

Tires

315/80R22.5,  tubeless tires with one spare tire.

Optional: 12.00R20, steel tires.

Fuel  Tank

300 L

Dump box

5400x2300x1500, middle tipping, front tipping is optional

Overall  Dimension

8300x2550x3450  mm
