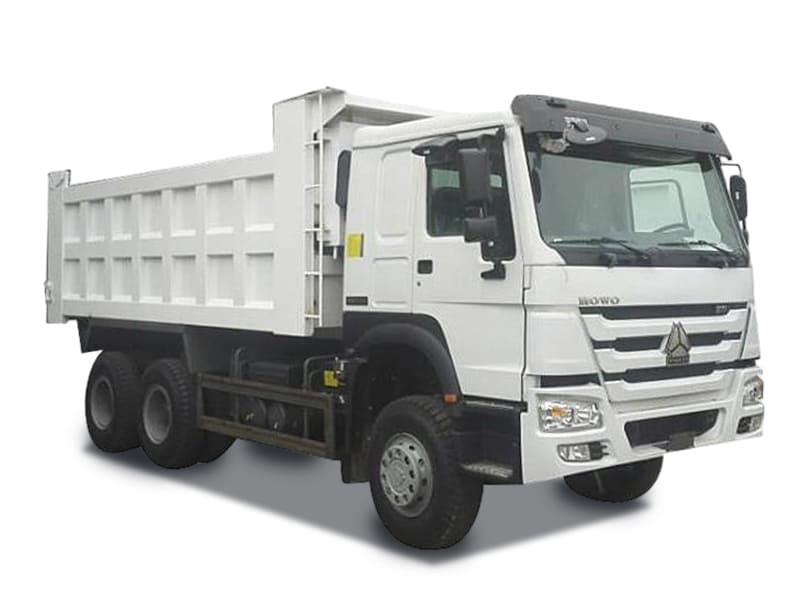

SINOTRUK HOWO 6X4 Front Tipping left hand drive right hand drive Dump Truck

Availability:
Quantity:

_0003_HOWO-6X4-Dump-truck

HOWO 6X4 10 wheels dump truck front tipping


Cabin

Driving type 6x4      LHD

HW70 cab, with A/C and two seats,              70°hydraulically tillable to the front



Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

7500×2496×3300

Wheel base  (mm)

3225+1350

Wheel track  (front/rear) (mm)

2022/1830/1830

Approach/Departure angle(°)

19/30



Weight in KGS

Tare Weight

12400

payload

25000

Front axles loading capacity

1x9000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

75





Engine

Brand

SINOTRUK

Model

WD615.69

Type

4-stroke direct injection ,  6-cylinder in-line  with water cooling, turbo-charging and          inter-cooling

Horse Power(HP)

336

Emission standard

Euro Ⅱ

Gearbox

HW19710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8118,power steering, hydraulic steering with power assistance

Fuel tank (L)

300

Tire

12R22.5 tubeless tyre, 11 pieces including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Bin size

5200*2300*1400 mm, side is 6 mm, front and bottom 8 mm

Hydraulic system

Front tipping
