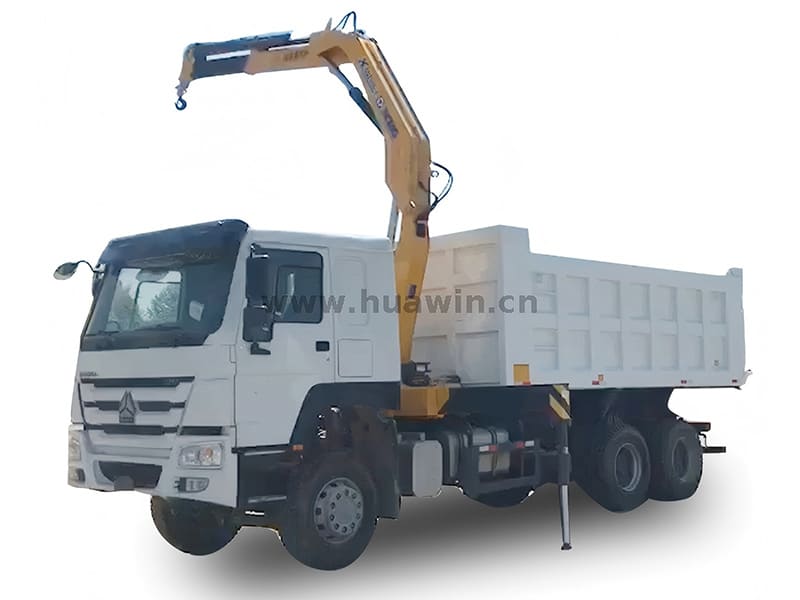

SINOTRUK HOWO 6X4 30T Dump Crane Truck

Name: SINOTRUK HOWO 6X4 30T Dump Crane Truck
Brand: SINOTRUK HOWO
SKU: 551310788
Rating: 5.0 (38 reviews)

HOWO 6X4 10 wheels dump crane truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as stone, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.


Color:	Please select white/red/green/blue/yellow/silver
Availability:



Inquire

Model:
ZZ3257N3647D
Brand:
SINOTRUK HOWO
Code:
8704

dump crane truck crane truck HOWO Truck dump truck 6X4 truck 30T crane

PRODUCT CATEGORY

Product Description

crane truck

HOWO 6x4 Truck with XCMG 8T Crane Specification

Cabin	Driving type 6x4 LHD/RHD
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm	9300×2550×3850
	Dump box (L x W x H) mm	5000x2300x1500
	Wheel base (mm)	4325+1350
	Wheel track (front/rear) (mm)	2022/1830
Weight in KGS	Tare Weight	14750
	payload	30000
	Front axles loading capacity	HF9, 1x9000
	Rear axles loading capacity	HC16, 2x16000
Max. driving speed（km/h）		90
Engine	Brand	Sinotruk
	Model	WD615.47
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	371
	Emission standard	Euro II
Gearbox	HW19710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Steering Gear	ZF power steering, hydraulic steering with power assistance
Tire	12.00R20 tyres, in total 11 pcs including one spare tire
Crane specifications	Brand : XCMG
	Type: Folded
	Max lifting capacity: 8000 kg
	Max lifting height : 11.5m

Specifications of the Crane

Model	SQ8SK3Q	Unit
Max Lifting Capacity	8000	kg
Max Lifting Moment	20	T.M
Recommend Power	27	kw
Stabilizer spread	5700	mm
Width folder	2300	mm
Oil Tank Capacity	160	L
Rotation Angle	All Rotation
Crane Weight	3300	kg
Installation Space	1150	mm
