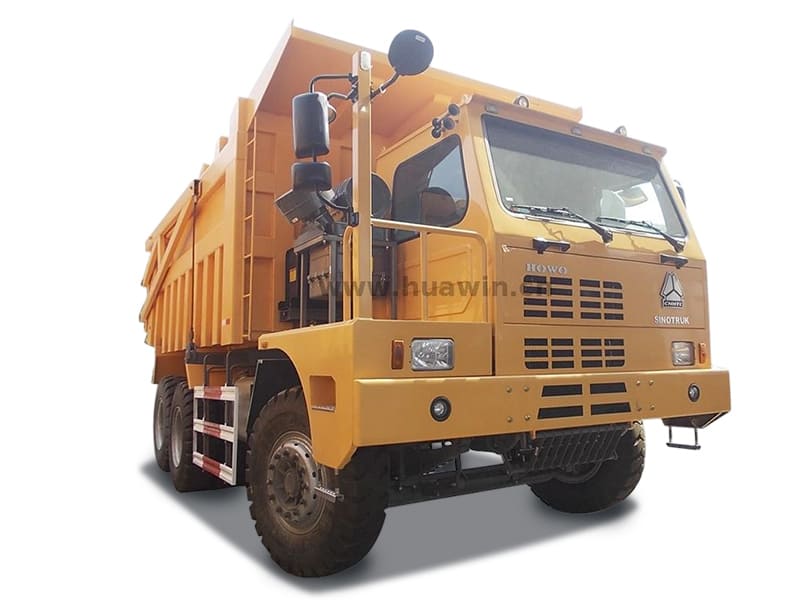

SINOTRUK HOWO 371hp 420hp 6X4 50T Mining Dump Truck

HOWO 6X4 10 wheels mining dump truck front tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 mining dump truck with 50 tons or 70 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Color:
Availability:
Quantity:
  • ZZ5707S3640AJ
  • SINOTRUK HOWO
  • 8704

SINOTRUK 6X4 new Mining Dump Truck

Specifications

Cabin

Driving type 6x4, HW7D cabin

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

8400 x 3350 x 4200


Wheel base  (mm)

3600+1500

Weight in KGS

Tare Weight

29300


payload

50000


Front axles loading capacity

1 x 18000


Rear axles loading capacity

2 x 36000

Max. driving speedkm/h

50

Engine

Brand

Sinotruk


Model

WD615.47T2


Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling


Horse Power(HP)

371HP


Emission standard

Euro Ⅱ

Gearbox

HW21712, 12 Forwards gear & 2 reverse gear, double oil pump

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8118, power steering, hydraulic steering with power assistance

Fuel tank (L)

500L

Tire

14.00-25 tyre, in total 11 pieces with one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Bin size

5500*3100*1800 mm, side is 14 mm, bottom is 16 mm

Hydraulic system

Front position, HYVA cylinder
