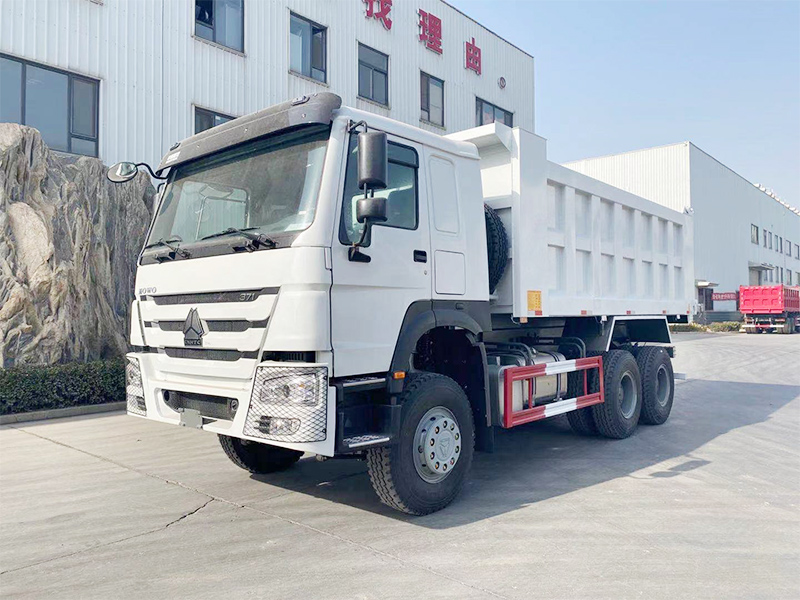

HOWO 6X4 Front Tipping Dump Truck

Availability:
Quantity:

_0004_dump-truck-


Cabin

Driving type 6x4      LHD

HW70 standard cab, with two seats and A/C, 70°hydraulically tillable to the front

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

8200×2500×3300

Wheel base  (mm)

3625+1350

Wheel track  (front/rear) (mm)

2020/1800

Approach/Departure angle(°)

19/23

Weight in KGS

Tare Weight

12440

payload

35000

Front axles loading capacity

1x9000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

85

Engine

Brand

Sinotruk

Model

WD615.69

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

336 @2200 rpm

Emission standard

Euro Ⅱ

Gearbox

HW19710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8118,power steering, hydraulic steering with power assistance

Fuel tank (L)

300

Tire

12R22.5 tubeless tyre 11 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Tipper Body

5600*2300*1500 mm, side is 6 mm, bottom 8 mm

Hydraulic system

HYVA cylinder, front lift
