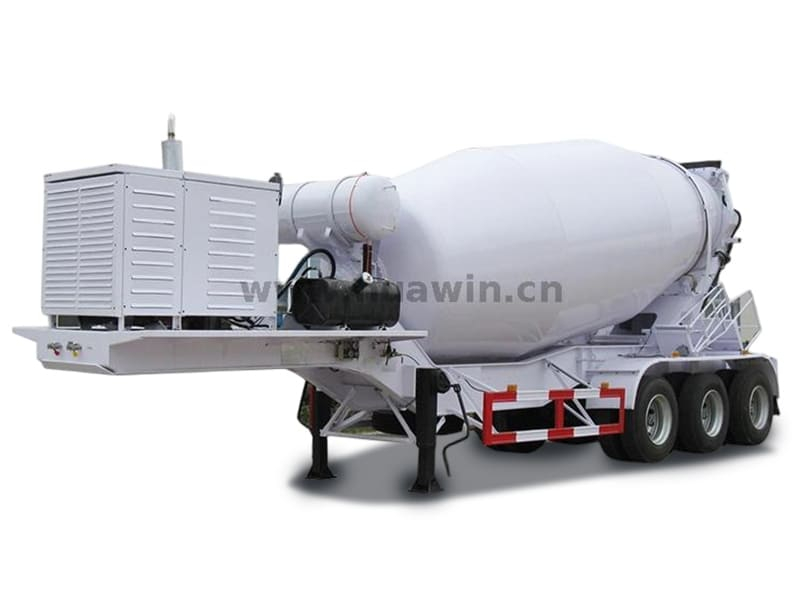

SINOTRUK 3 Axles Concrete 16CBM Mixer Tanker Trailer

3 axles special customized concrete mixer truck tanker transporter or bulk cement semi-trailer is available here. Transporting Media: concrete mixer, dry or wet.
Color:
Availability:
Quantity:
  • SGZ
  • SINOTRUK

3 axle concrete mixer semi trailer


DIMENSIONS

Tare  Weight

12300kg

Overall  Length

11000mm

Overall  Width

2490mm

SPECIFICATION

Chassis

Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm.

Axle

3 axles of Germany design 13 ton


Brand Name: BPW/FUWA

Suspension

Germany design heavy duty mechanical suspension

Leaf Spring

13 pieces leaf spring

King Pin

JOST brand 3.5” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

9.0-22.5 wheel rim

Tyre

12R22.5 tubeless tire, in total 13 PCS including one spare tire; 12.00R20/315/80R22.5 are optional

Spare Tire

One set of spare tire including 1 carriers

Braking System

WABCO RE4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Tank and Key accessary

Capacity

16CBM

Engine

American brand Cummins

Hydraulic Pump

Italian brand or American brand

Hydraulic Motor

Italian brand or American brand

Gear Box

Italian brand or American brand
