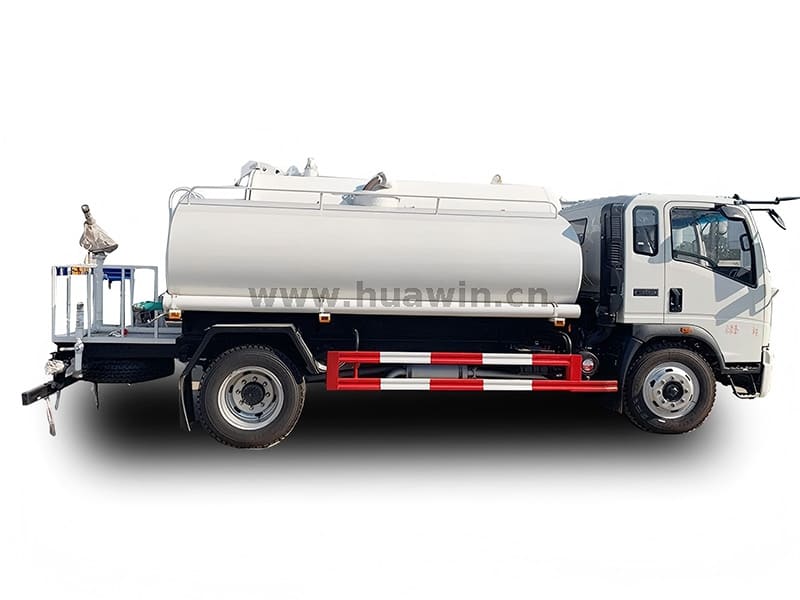

SINOTRUK HOWO 4x2 Water Tanker Truck

SINOTRUK 4x2 water truck , also known as water supply trucks and water tank trucks, have transportation and water supply functions.It can hold hot water and drinking water to meet the needs of different users in different environments. Water tank materials are available in steel, stainless steel, or aluminum. Each water tanker has its own different pump system according to the purpose of the water being transported. The water tank is made of high-performance steel plate. The water tank cover can be opened and closed freely and can be used to add water to the water tank.The control of each function adopts electric control, one-button switch without manual. It is provided with a manhole on the upper end of the water tank,which can be added water directly or used for maintenance personnel to access the tank.

Availability:

Quantity:



Inquire Add to Basket

Model:
ZZ1107D4215
Brand:
SINOTRUK HOWO

Product Description

SINOTRUK HOWO 4x2 Water Tanker Truck

1 (1)

Specifications

Dimensions	Overall dimensions (L x W x H)mm	5995×2250×2350(mm), we have left hand drive and also right hand drive
	Wheel base (mm)	3360mm
	Wheel track (front/rear) (mm)	1160/1475
	Approach/Departure angle(°)	20/15
Weight in KGS	Tare Weight	3500kg
	payload	5000kg
	Front axles loading capacity	1x3000kg
	Rear axles loading capacity	1x5000kg
Max. driving speed(km/h)		95km/h
Engine	Brand	Yunnei brand, Cummins brand is optional for the engine
	Model	YN4102N
	Type	4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	112 HP, if you like bigger horse power, it's also optional
	Emission standard	Euro II, also Euro III, Euro IV is optional
Clutch	Reinforced diaphragm clutch, diameter 430mm
Tire	7.50R16 radial tyre, 7 pcs including one spare tire
Tank specification	5000 liters Material: Q235 High quality carbon steel plate The End plate is 5mm high tensile strength steel; The tank body is 4 mm high tensile strength steel Optional function:Rear work platform and water cannon at the platform For the truck color: White, red, yellow, blue, green or customization
