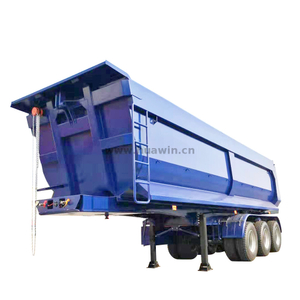

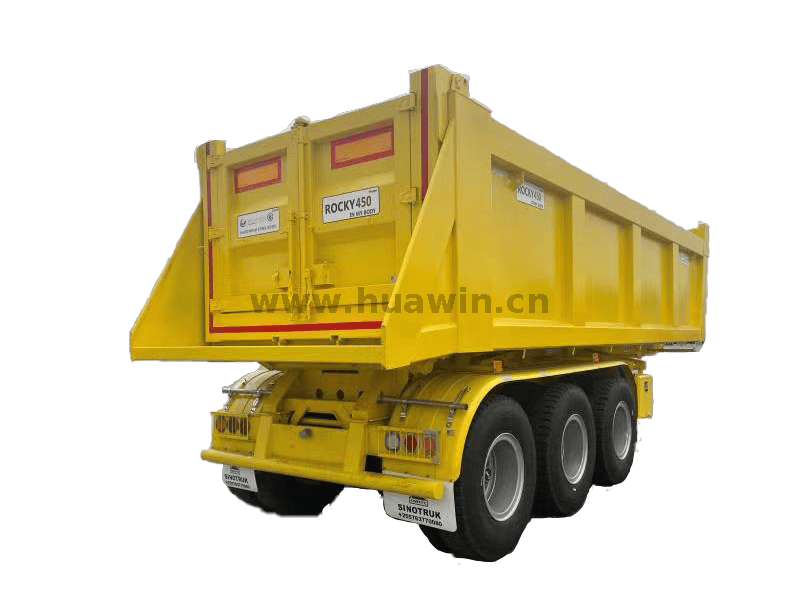

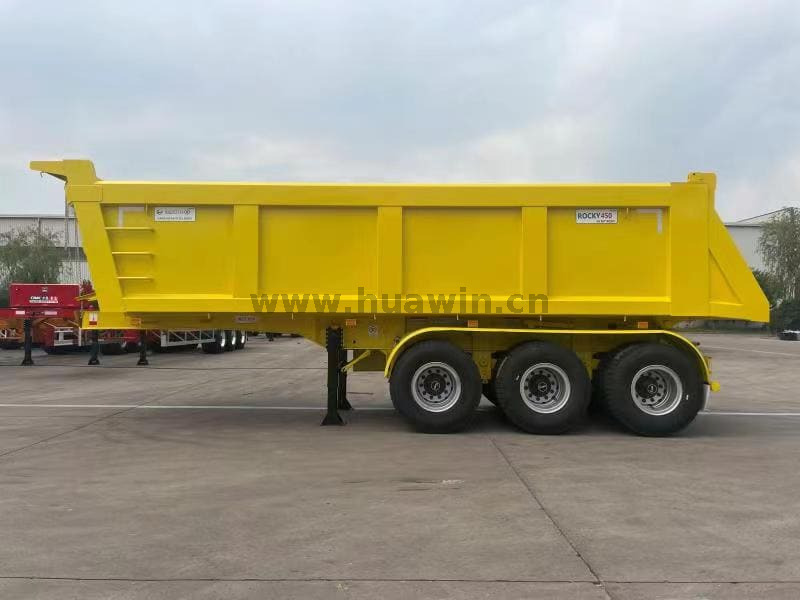

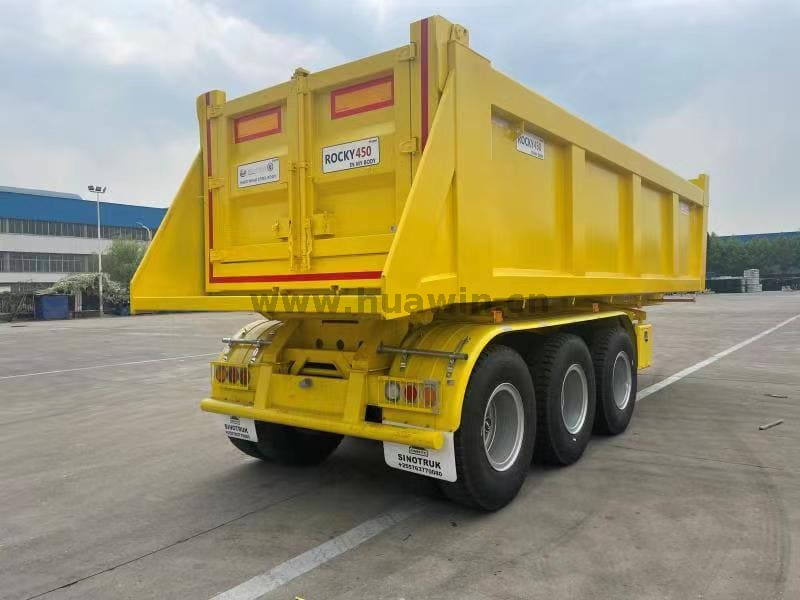

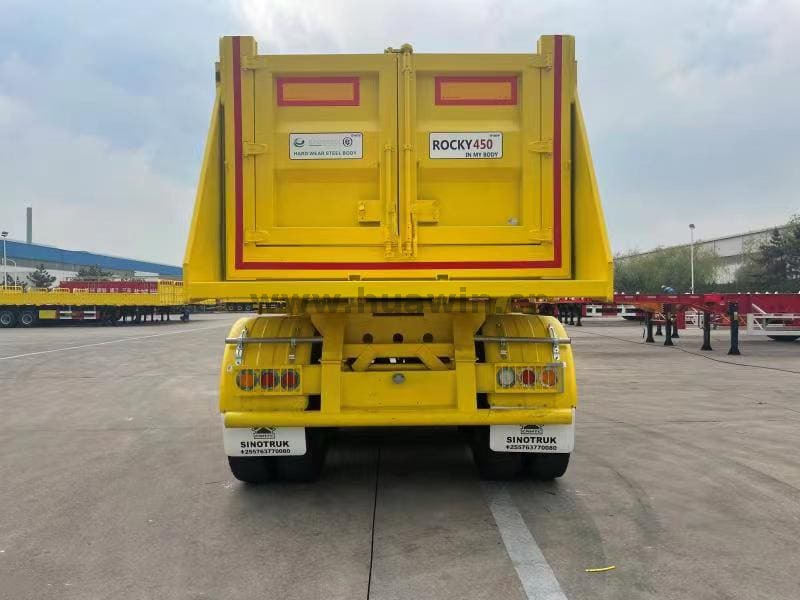

26m3 Rectangular Rear Tipping Semi-Trailer is a kind of heavy-duty transportation vehicle designed for transporting bulk materials (such as sand, coal, ore, construction waste, etc.). Its rectangular compartment design provides more loading space, and the rear tipping unloading method makes the unloading operation more efficient, which is widely used in construction sites, mines, ports and large-scale logistics transportation and other fields.
● China's best rear loader truck factory
● 30 years of experience on Fecal Suction Truck
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 24 months long guarantee time assurance
 | |
| |
Applications:
Our 26m3-Rectangular Rear Tipping Semi-Trailer is commonly used for transportation of materials: sand, gravel, cement, concrete aggregate, construction waste and so on. For example: urban infrastructure construction (roads, bridges, subway projects, etc.); transportation of raw materials at construction sites of housing projects; removal of construction waste at construction sites.
| Main Configurations | Compartment size(mm)(L*W*H). | 7200x2300x1600mm |
| Load | 30 tons | |
| Longitudinal beam | Submerged arc welding | |
| Wing/Web(mm) | 10/6/12,Double web structure,T700L high strength steel | |

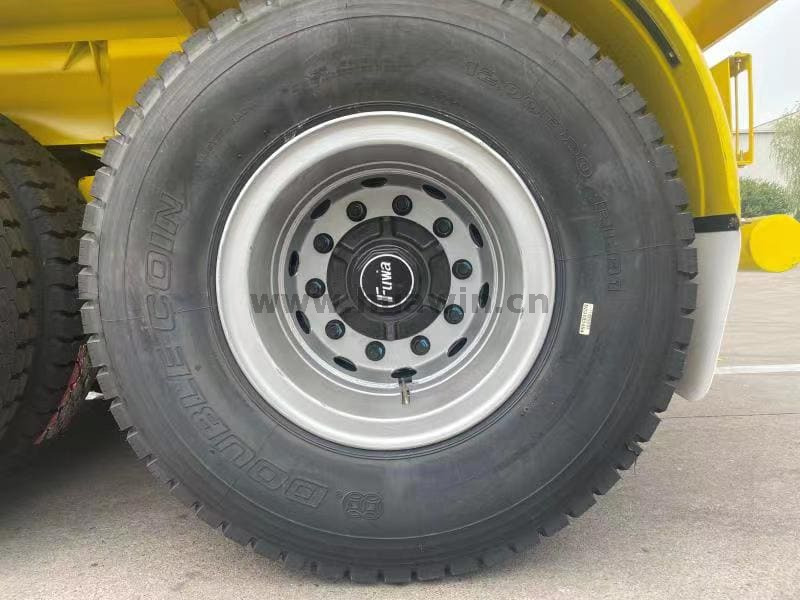

| Tires | 12.00R20 | |
| Steel Rim | Model 8.5-20 | |
| Axle | Guangdong FUWA 13T | |
| Suspension | Tri-axle reinforced mechanical suspension, 60 pins | |
| Hydraulics | Haivo FEA169 complete set | |
| Outriggers | Jost A400 19 inch Linkage | |
| Traction Pins | JOST KZ1012,50#, assembled | |
| Brake systems | Pneumatic Brake, Front Single Rear Dual, WABCO Emergency Brake Valve | |

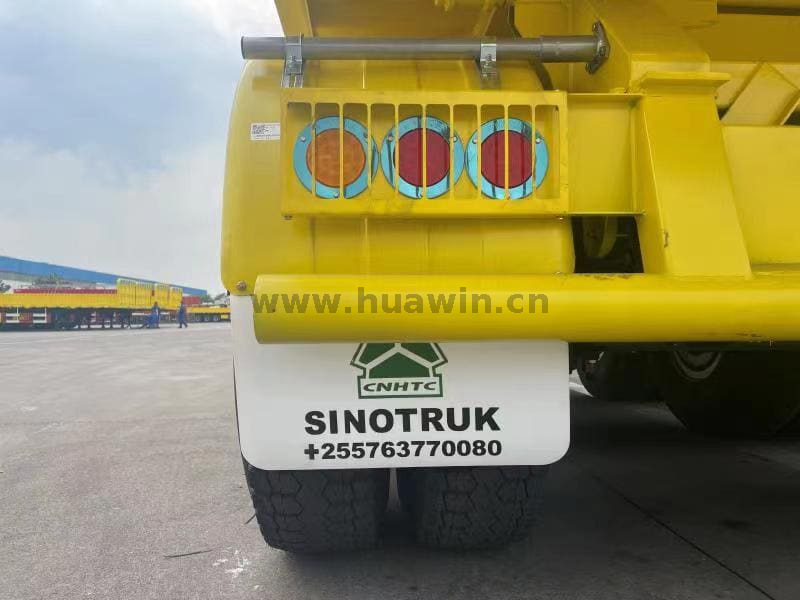

| Electrical Systems | 24V, LED lamps | |

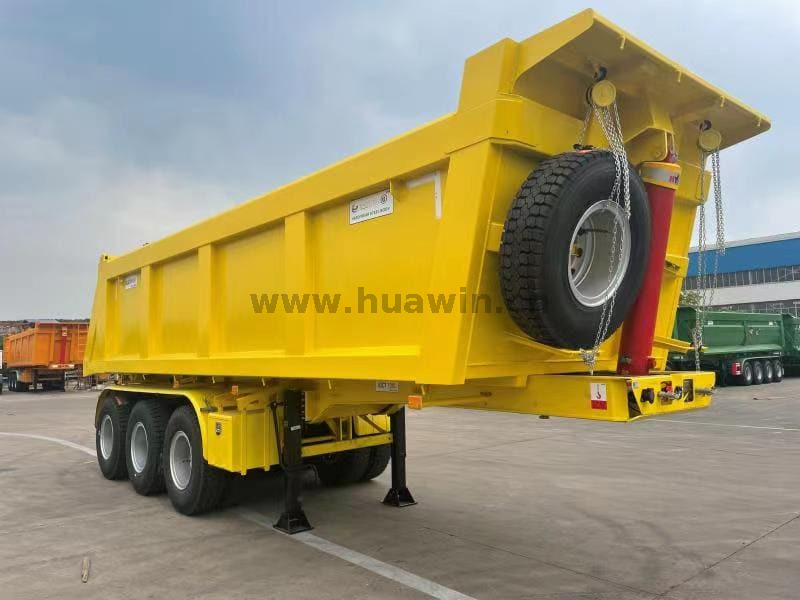

| Spare tire carrier | 1 set per vehicle | |
| Paint | Primer + top coat, polyurethane paint | |
| Others | 1、The whole vehicle does not reflect the logo of Qingdao CIMC and CIMC. 2、Tractor parameters: 3、Rear door is door-in-door structure. 4、Contains 11 tractor-trailer conversion | |
