Sinotruk 3 Axle Front Tipping Dump Semi Trailer

Basic Info:
Color:Optional     Logo:Can be customized as your request
Origin:China        Package:Nude
Factory price with trusted quality
Availability:
Quantity:
  • SGZ
  • Huawin

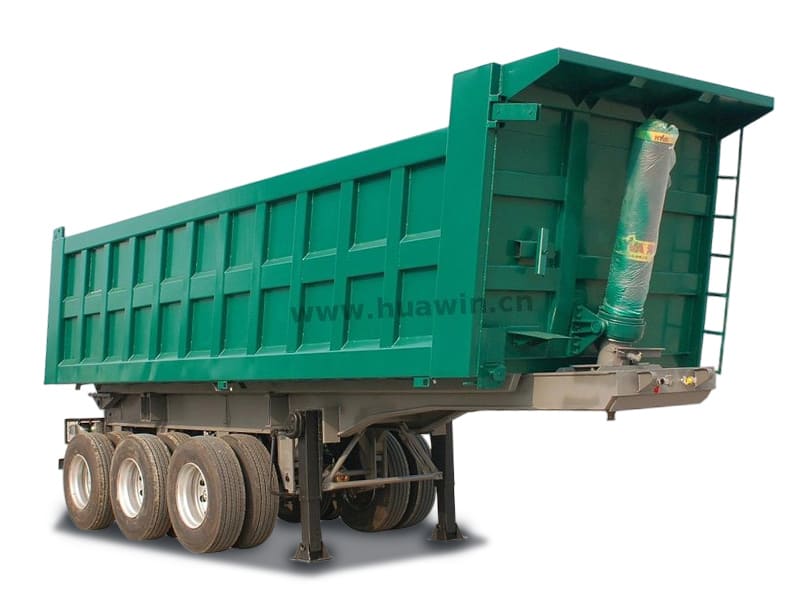

Sinotruk 3 Axle Front Tipping Dump Semi Trailer

tipper-semi-trailer


Specifications:

DIMENSIONS
Tare  Weight 12000kgs
Payload 40000kgs
Overall  Length 8900mm
Overall  Width 2465mm
Dump body size 7000mmx2300mmx1500mm
Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume 24 m3
Side Wall 4mm thickness
Front Wall and Bottom 6mm thickness
SPECIFICATION
Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel T610, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.
Axle 3 axles
HJ Brand 13 ton
Hydraulic System One set of HYVA cylinder
Suspension German design mechanical suspension
Leaf Spring 13-piece leaf spring. 11x100
King Pin JOST brand 2" Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.0R22.5 wheel rim, 13 pieces
Tire 12R22.5 tubeless tire with one spare tire, 13 pieces
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
