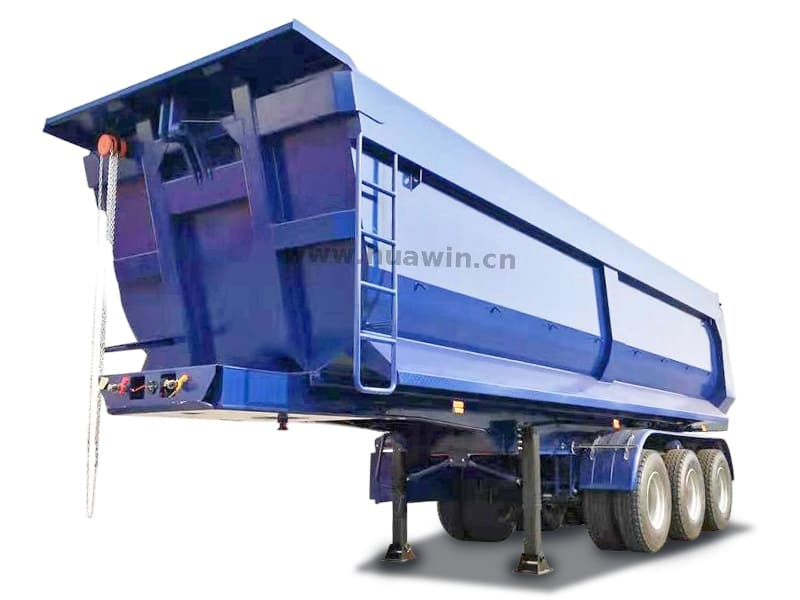

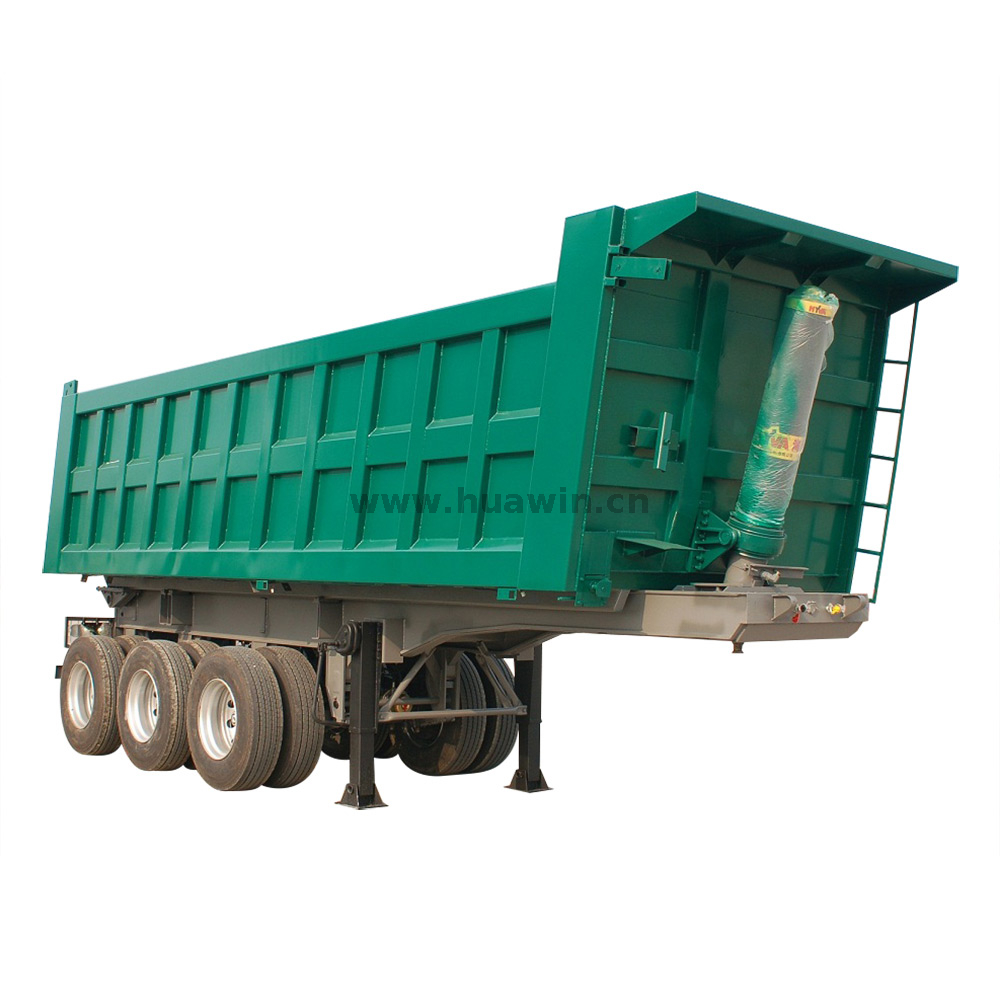

Huawin 3 Axles/4 Axles Dump Semi Trailer with Volume 18cbm-40cbm
Specifications:
| DIMENSIONS | ||||
| Tare Weight | 12000kgs | |||
| Payload | 40000kgs | |||
| Overall Length | 8900mm | |||
| Overall Width | 2465mm | |||
| Dump body size | 7000mmx2300mmx1500mm | |||
| Photo for reference, final produce can be made according to exact requirements | ||||
| DUMPER BODY | ||||
| Volume | 24 m3 | |||
| Side Wall | 4mm thickness | |||
| Front Wall and Bottom | 6mm thickness | |||
| SPECIFICATION | ||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel T610, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | |||
| Axle | 3 axles | |||
| HJ Brand 13 ton | ||||
| Hydraulic System | One set of HYVA cylinder | |||
| Suspension | German design mechanical suspension | |||
| Leaf Spring | 13-piece leaf spring. 11x100 | |||
| King Pin | JOST brand 2" Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 9.0R22.5 wheel rim, 13 pieces | |||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
