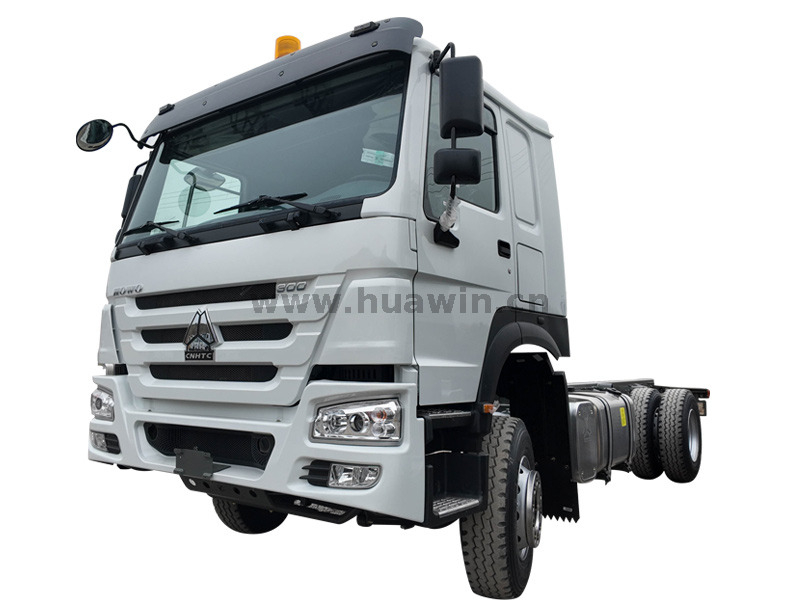

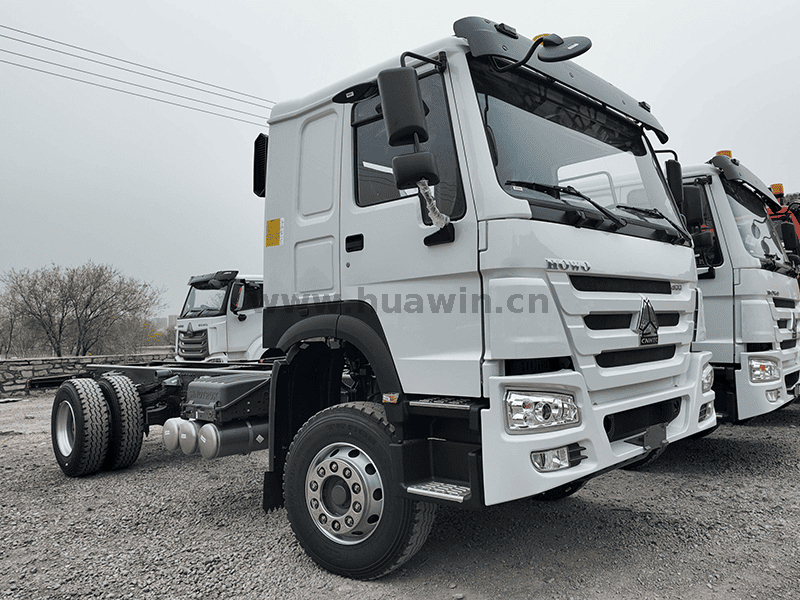

Sinotruk HOWO7 Chassis

Produce showcases:

● China's best  rear loader truck factory

● 30 years of experience on Fecal Suction Truck

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 24 months long guarantee time assurance

Applications:

Sinotruk Howo7 Chassis is commonly used in the field of construction vehicles, such as dump trucks and dump trucks in the field of mining, construction sites, etc., with strong off-road ability and load-bearing capacity. Concrete mixer truck (Mixer Truck): widely used in urban construction sites, HOWO7 Chassis stability is suitable for installing concrete tanks, to ensure the quality of concrete during transportation. Truck Crane: suitable for loading and unloading large equipment or materials.

Basic Configuration	English Instrumentation
Core Configuration	Drive Axle	MCX16ZG Dual Rear Axle(Drum)

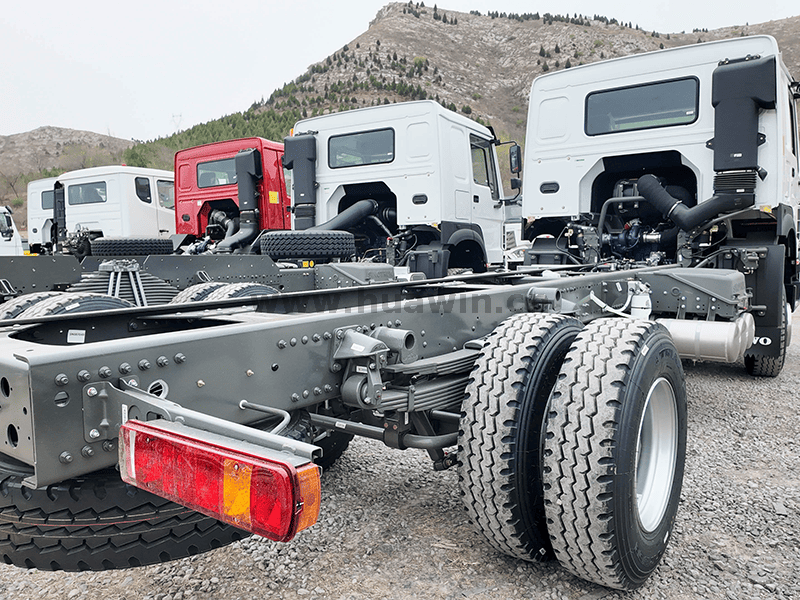

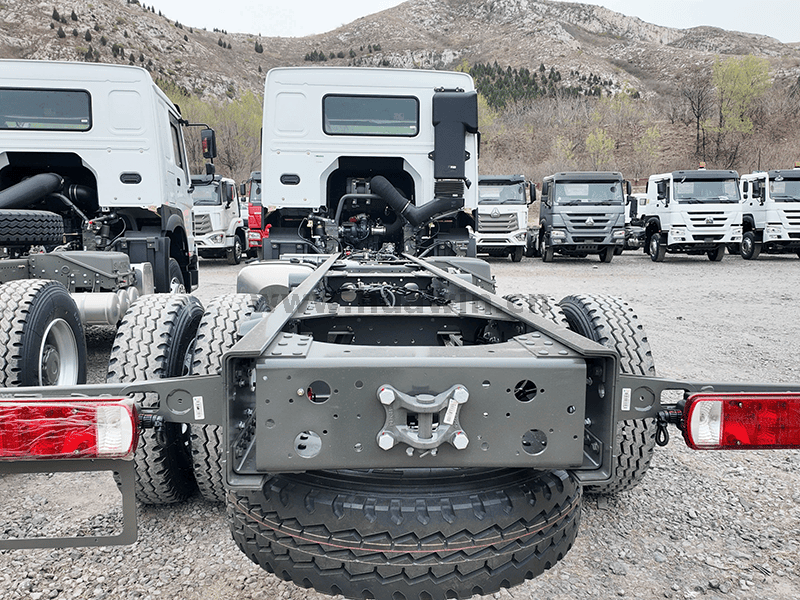

	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW70 flange pickup

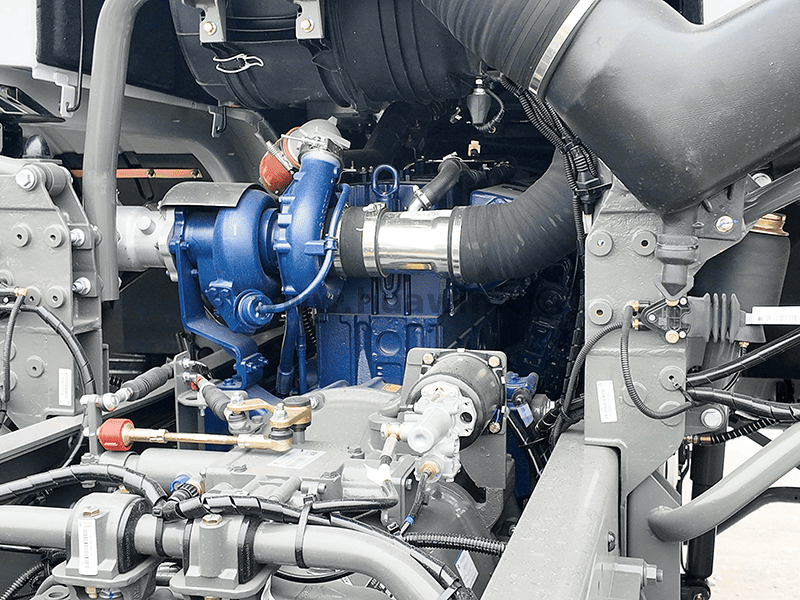

	Engine	WD615.47

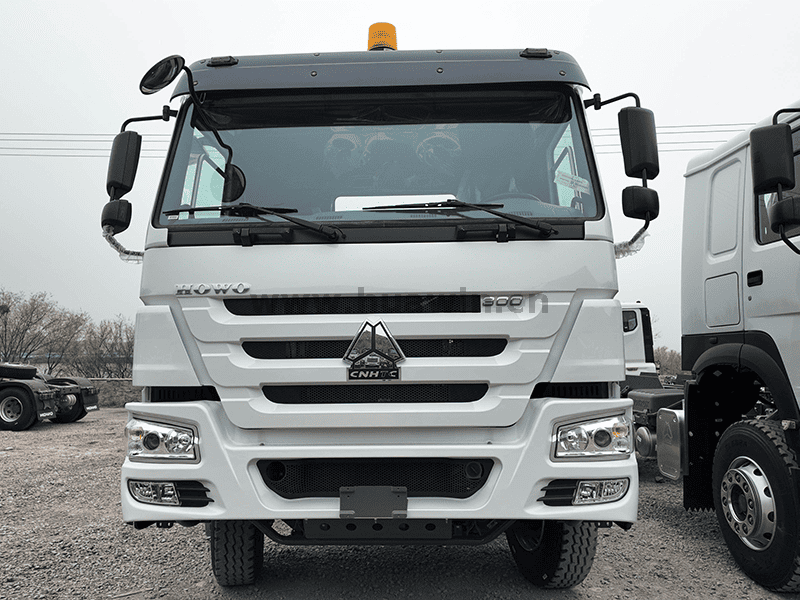

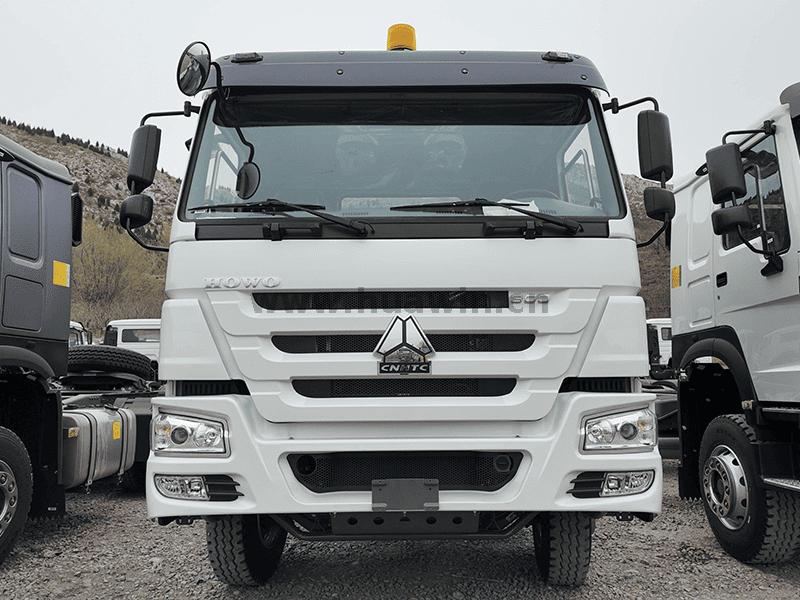

	Cab	HW76 new front cab
Compulsory	Tires	315/80R22.5 tires(mixed tread/18PR)
	Ratios	4.803
	Bumper	High bumper(all metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle(drum)
	Steering	Bosch steering wheel
Selectable	Cabin Seats	Primary airbag + secondary lightweight seat
	Air intake system	Road version air intake system
	Headlamp guards	Metal bumpers (with front and rear light protectors)
	Air Conditioning Unit	Heating and cooling air conditioning
	Intercooler protection	Intercooler protection
	Rear Tow Hook	Optional rear towing hitch
	Exhaust system	Standard exhaust system
	Reversing buzzer	Optional reverse buzzer
	Engine	EVB and 71 degree thermostat
	Fuel tank	400L fuel tank
	Start-stop switch	Optional under-vehicle start/stop switch
	Wheels	Front and rear reinforced wheels
