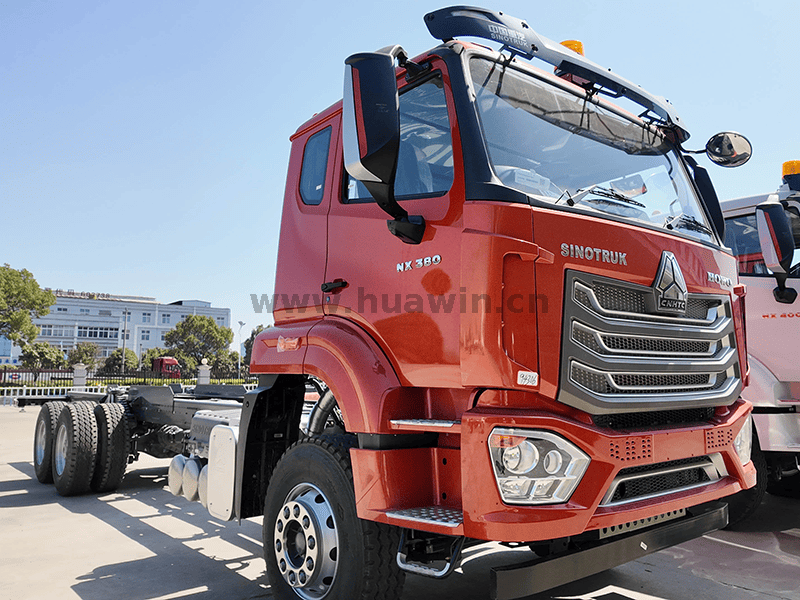

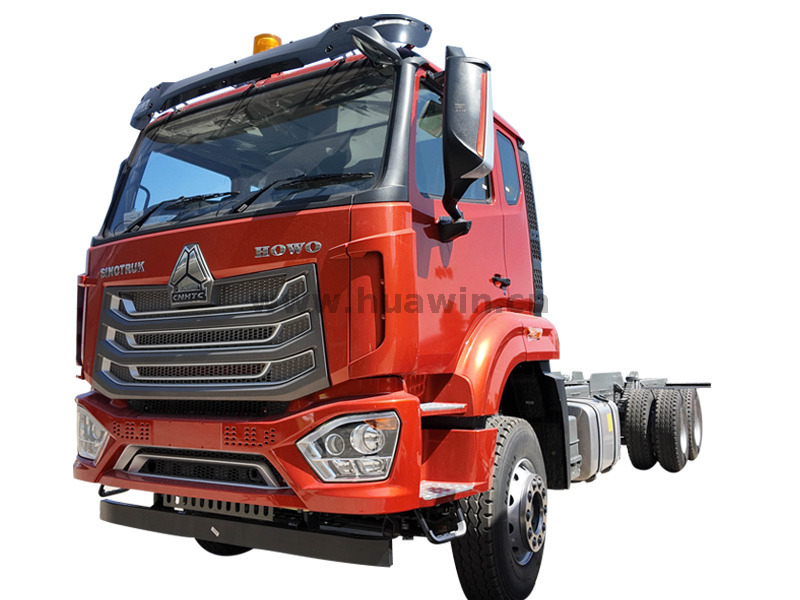

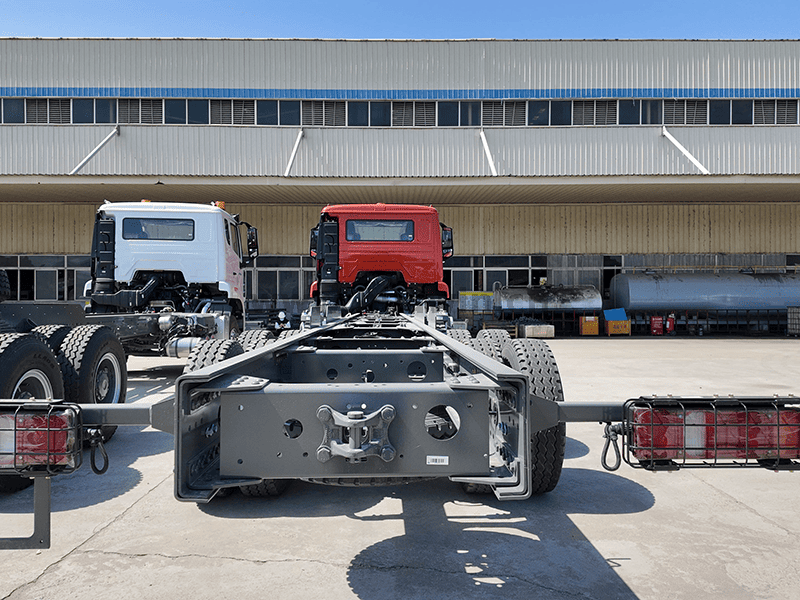

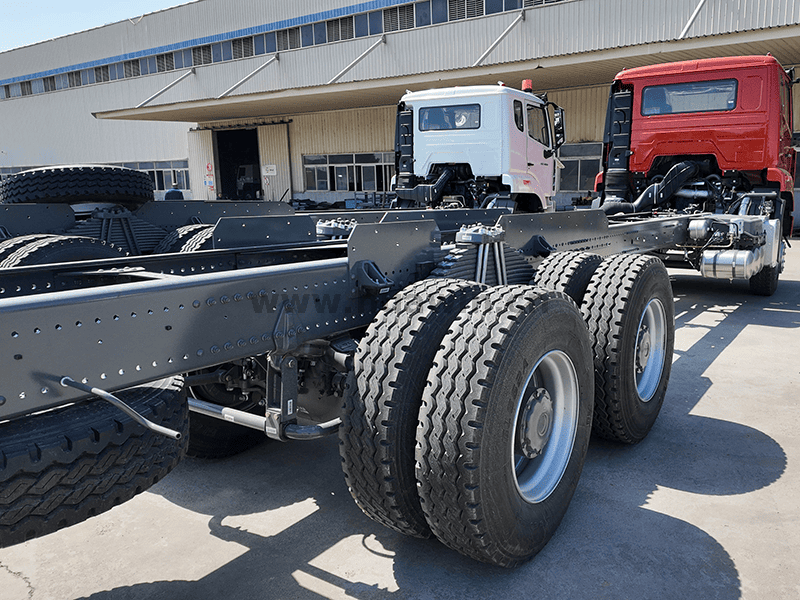

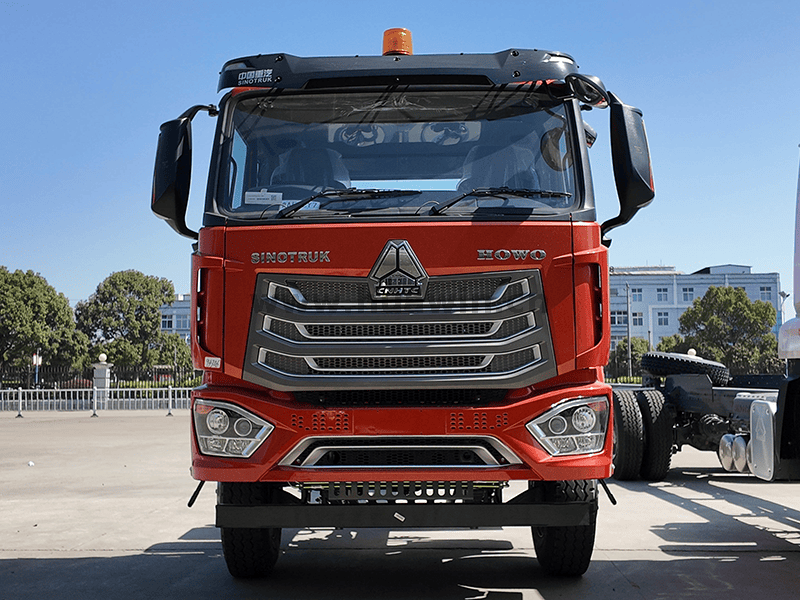

Sinotruk HOWO Chassis-NX is a medium and heavy-duty truck platform launched by Sinotruk, which is widely used in tractor, dump truck, truck and other models. The chassis combines the research and development achievements of MAN and Sinotruk to provide excellent power performance, reliable load-carrying capacity and good driving comfort.
Produce Showcases:
● China's best rear loader truck factor
● 30 years of experience on Fecal Suction Truck
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 24 months long guarantee time assurance
| |
| |
Applications:
Sinotruk Howo Chassis Commonly used chassis for heavy-duty tractor head: HOWO NX is widely used in the field of 6×4, 6×2 tractor, ideal for long-distance and high-speed transportation (e.g., e-commerce, courier, cold chain, express transportation). It is suitable for matching with large trailers (such as van, refrigerated, barn-type, etc.).
| Core Configuration | Drive Axles | MCX16ZG Dual Rear Axle(Drum) |
| Chassis | Double-layer frame(8+8/300) | |
| Suspension | Front and rear reinforced multi-leaf springs(10/12) | |
| Transmission | HW19710 gearbox + HW50 direct coupled pickup | |
| Engine | WD615.47 engine | |
| Cab | HOWO H77L-R | |
| Compulsory | Tires | 315/80R22.5 Tires(Mixed Tread/18PR) |
| Ratios | 4.803 | |
| Bumper | High Bumper(Full Metal) | |
| ABS | Without ABS | |
| Front Axle | VGD95 front axle(drum) | |
| Steering | Right-hand Bosch steering wheel | |
| Selectable | Intake system | Engineered air intake system |
| Oil filter)Intercooler protection device | Intercooler protection | |
| Electric cab lift | Cab Manual Lift | |
| Center control panel | MP3 | |
| Glass Lifter | Electric Glass Lifter | |
| Fuel tank | 400L Fuel Tank | |
| Rearview mirror | Manual | |
| Driver's seat | Main airbag+Sub easy seat | |
| Air conditioning unit | Heating and cooling air conditioning | |
| Cabin overhead light fixtures | Cab overhead single warning light | |
| Engine | EVB and 71 degree thermostat | |
| NANO electrical system | NANO electrical system | |
| Exhaust system | Standard exhaust system | |
| Rear tail light | Seven-function halogen taillights | |
| Cab | Classic Edition | |
| Wheel Option | Regular wheels |
