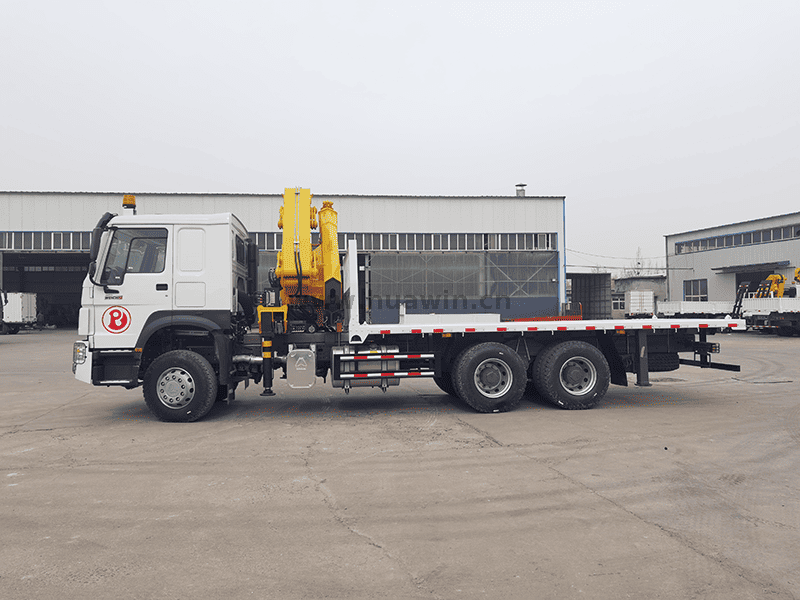

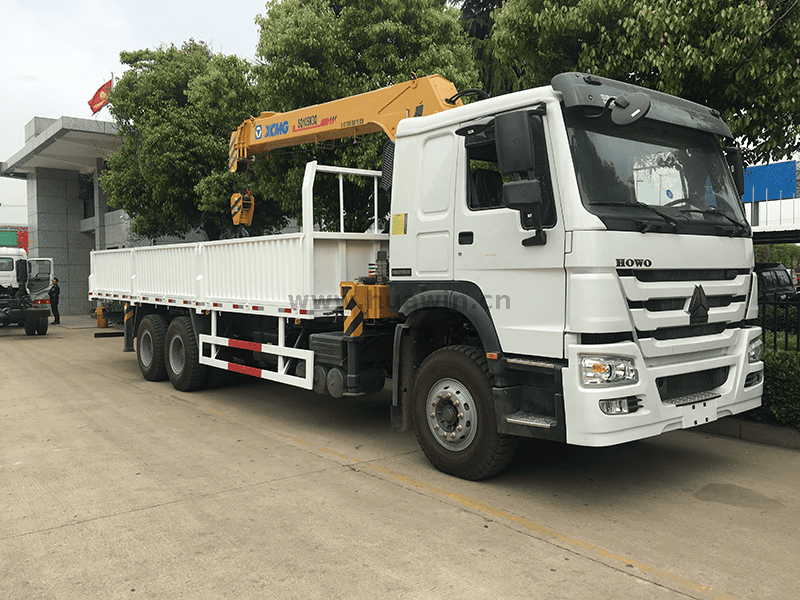

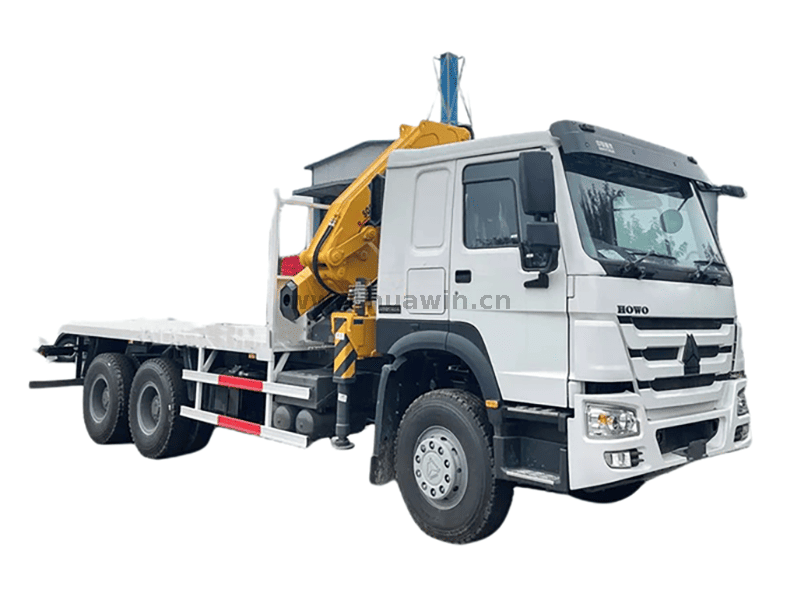

The SINOTRUK HOWO 6X4 Crane Truck with 8T Folded Arm Crane is a high-performance heavy-duty lifting and transport vehicle engineered for versatile industrial and construction applications. Equipped with a powerful 6×4 drivetrain and an 8-ton foldable boom crane, this model integrates efficient cargo transportation with professional lifting capabilities, making it ideal for complex operation environments.
Engine Type: WP10.300E22, Euro II emission standard
Products Showcases:
● With China top 1 crane brand XCMG
● Wide range tonnage option
● Build a strict QC team to guarantee the quality
● Fast delivery time
● 12-24 months long guarantee time assurance
Applications:
Crane truck, or truck-mounted crane, integrates hoisting and transport in one mobile unit for fast lifting and moving of loads on job sites, warehouses, docks, or rescue spots.
 |  |
Specification:
We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.
| SINOTRUK HOWO 6X4 Crane Truck with 8T Folded Arm Crane | ||
| Cabin | Driving type 6X4 Left-hand drive | |
| HW 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10350x2500x3700 |
| Suitable cargo size (L x W x H) mm | 6800x2300x600 | |
| Wheel base (mm) | 4600+1350 | |
| Weight in KGS | Tare Weight | 14000 |
| Payload | 25000 | |
| Front axles loading capacity | VGD71, 1x7000 kgs | |
| Rear axles loading capacity | ST16, 2x16000 kgs | |
| Engine | Brand | WEICHAI |
| Model | WP10.300E22, Euro II emission standard | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power（HP) | 300HP | |
| Emission standard | Euro 2 | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Steering | ZF power steering | |
| Tire | 295/80R22.5 Tubeless tires with one spare tire, total 11pcs | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Rear landing gear | Hydraulic landing gear | |

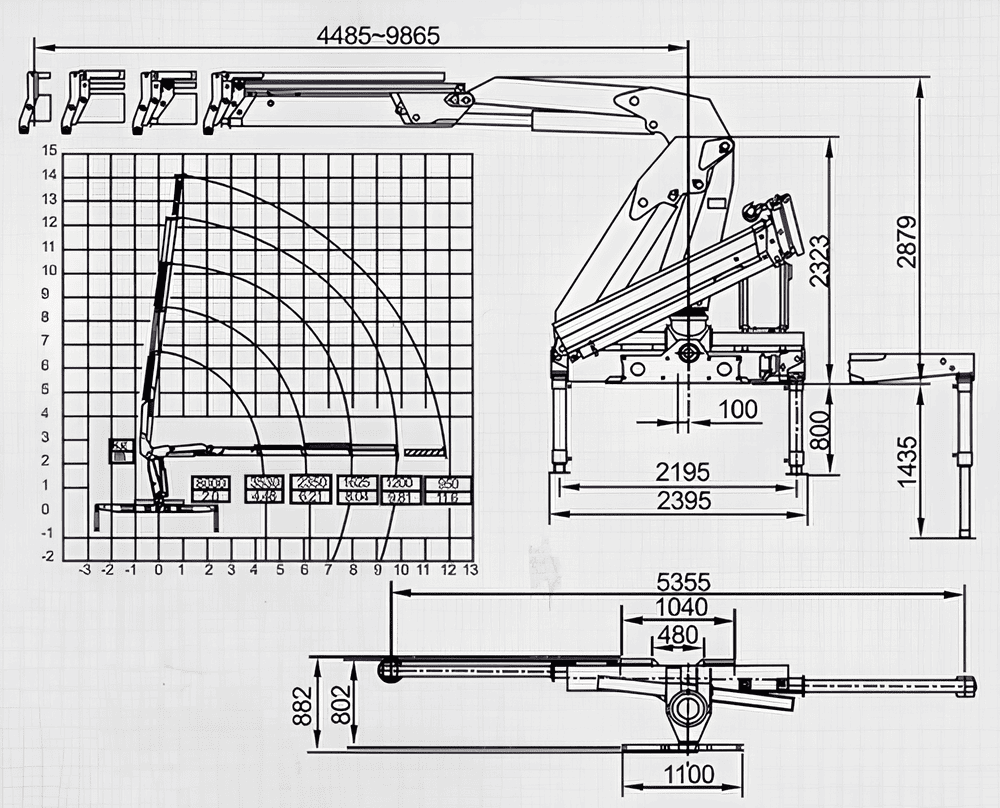

| Crane specifications | Brand : XCMG | |
| Type: Folded arm, hydraulic | ||
| Max lift capacity: 8,000 kg | ||
| Arm section: 4 sections | ||
| Model NO. | Max Lifting Capacity | Max Lifting Moment | Recommend Power | Max Oil Flow of Hydraulic System | Max Pressure of Hydraulic System | Oil Tank Capacity | Rotation Angle | Crane Weight | Installation Space |
| SQ8ZK3Q | 8000KG | 16T.M | 22 KW | 45 L/MIN | 26MPA | 130L | 370°All Rotation | 2500KG | 1150MM |
Crane type:
Based on different working condition, crane consist of 2 types:
l Knuckle Boom/Folded Crane
l Telescopic /straight crane
| Category | Straight Boom Crane | Knuckle Boom/Folded Crane |
| Operation | Simple operation | difficult to precisely control the vertical lifting |
| Working Radius | Larger working radius | Limited working radius |
| Working Space | Requires more space | Requires less space, suitable for narrow environments like factories and warehouses |
| Efficiency | Lower efficiency due to wire rope operation | Higher efficiency due to hydraulic cylinder control |
| Price | Relatively cheaper | Relatively expensive |
| Pics |
|
|
Tool-up option:

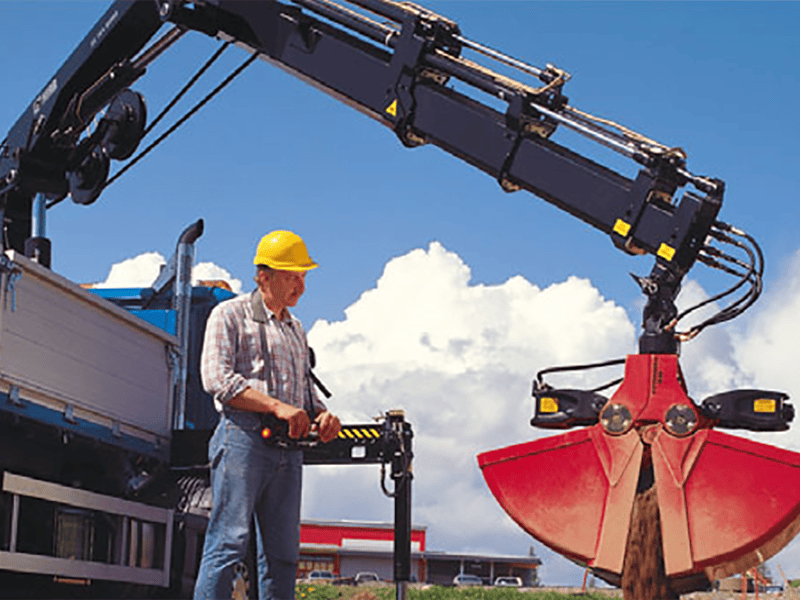

Various attachment for option:
One crane, endless job tickets—spec your combo and cash-in on every site.

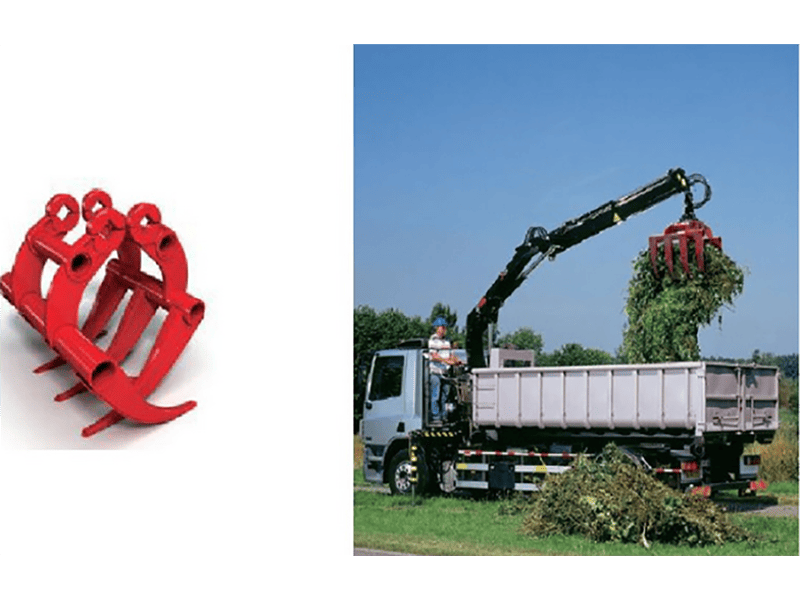

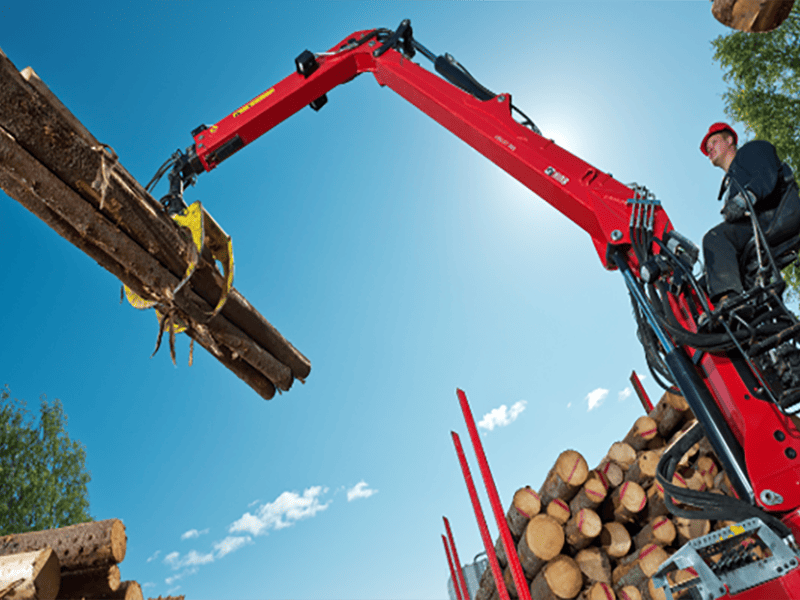

l Log/Scrap Grab
l Earth Auger (200–800 mm)
 |  |

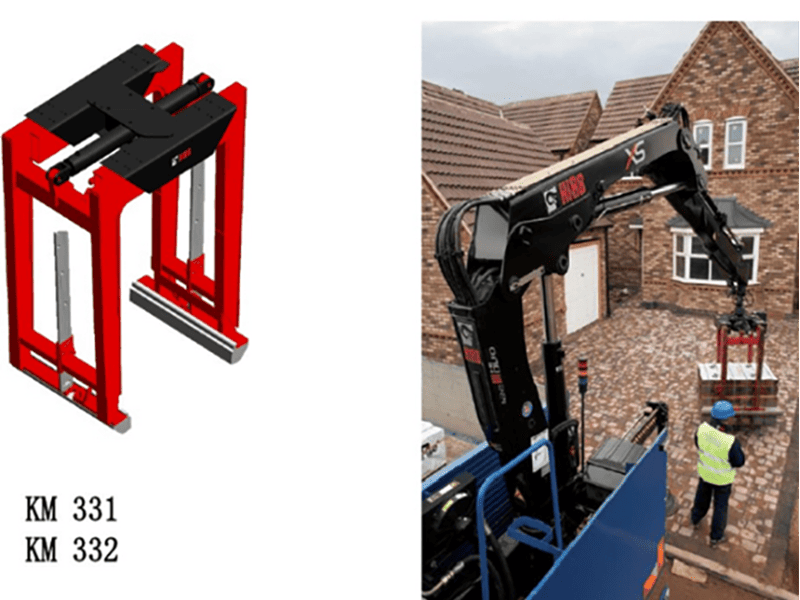

l Brick Bale Clamp
l OSHA-rated Man Basket (500 kg)
l Pile Driver & Core Driller
 |  |  |
