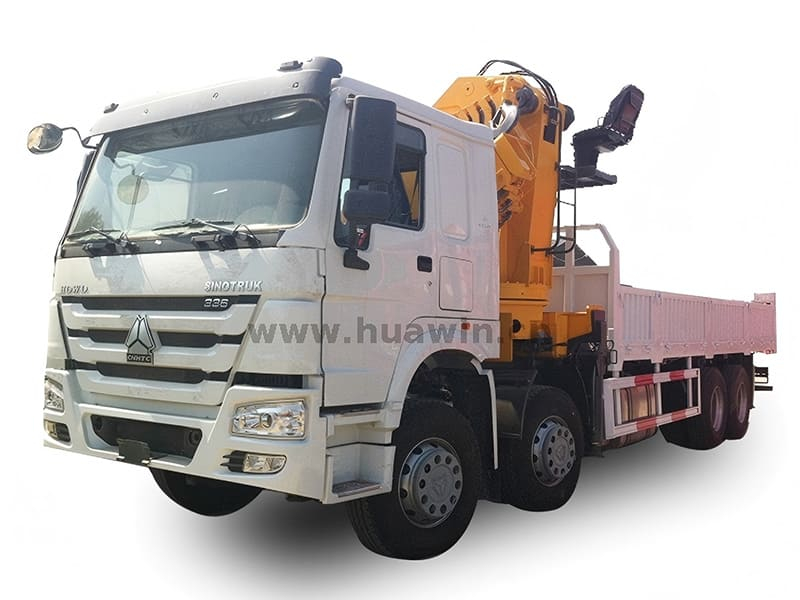

SINOTRUK HOWO 8x4 Crane Truck - 16Ton XCMG Knuckle Boom

Crane truck is widely used at port, workshop, site ect. It's used to lift cargo, equipment, rescue.
Availability:
Quantity:
  • ZZ1317N4667W
  • SINOTRUK A7

名称SINOTRUK HOWO 8x4 Crane Truck - 16Ton XCMG Knuckle Boom


详情


Specifications

SINOTRUK HOWO 8x4 Crane Truck - 16Ton XCMG Knuckle Boom

Chassis  Model

ZZ1317N4667W

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 2x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between  wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Crane

Brand : XCMG Type: knuckle arm, hydraulic Max lifting capacity: 16000 kg

Cargo Box

8000x2500x600mm

Overall  Dimension

12000x2600x3950mm
