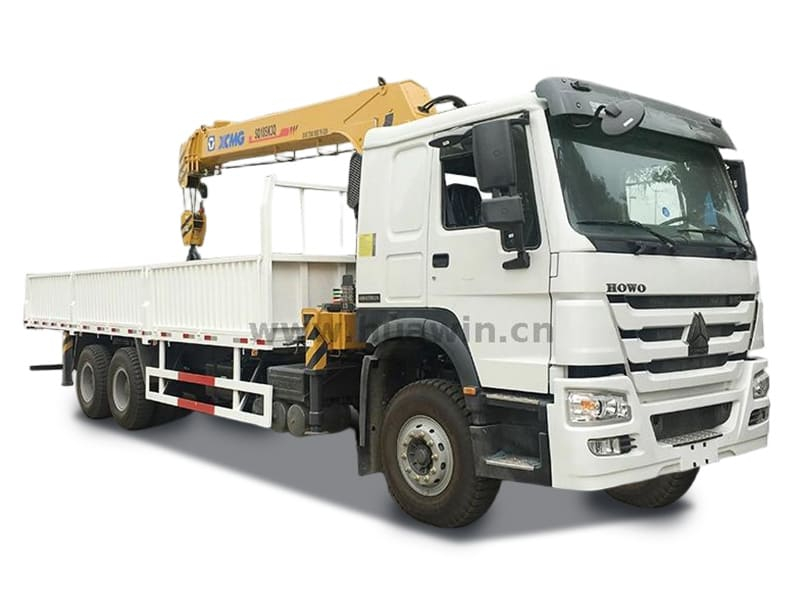

SINOTRUK HOWO 6x4 Crane Truck - 10Ton XCMG Telescopic Boom

Chassis  Model

ZZ1257N4647W

Driving  Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 420HP are optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

Hydraulic steering with power assistance

Front  Axle

HF9, 1x9000  KGS

Steering with double T-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between  wheels and axles.

Electrics

Operating voltage: 24 V

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5, tubeless tires with one spare tire.

Fuel  Tank

400L

Crane

Brand : XCMG Type: telescopic arm, hydraulic Max lifting capacity: 10000 kg

Cargo Box

6200x2300x600mm

Overall  Dimension

10400x2600x3950mm
