ZZ1257N4341

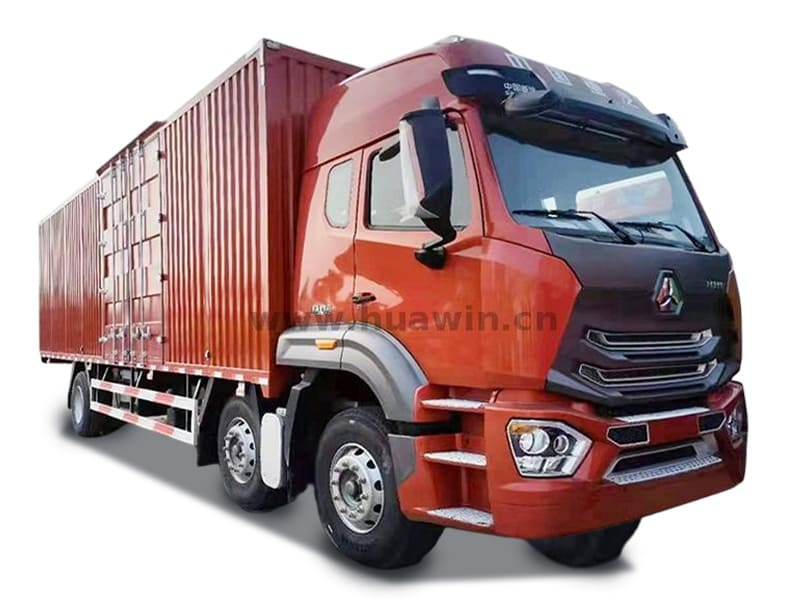

SINOTRUK E7 6x4 Van Cargo Truck
Specifications
| SINOTRUK E7 6x4 Van Truck For Sale | ||
Cabin | Driving type 6x4 LHD | |
| HW77L cab, with A/C and one bed, 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10300×2500×3670 |
| Wheel base (mm) | 4625+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 19/21 | |
| Weight in KGS | Tare Weight | 13000 |
| payload | 25000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 85 | |
Engine | Brand | Sinotruk |
| Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power (HP) | 336 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | |
| Box size | 7700*2300*2000 mm, made of corrugated iron, side and rear door openable. | |
