ZZ1107G451CD

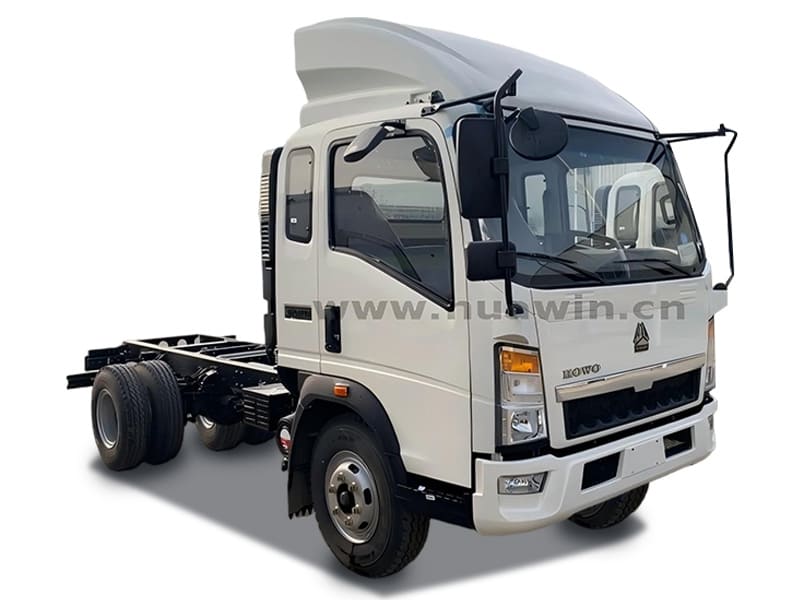

SINOTRUK HOWO 4×2 Cargo Chassis
Specifications
Cabin | Driving type 4x2 LHD |
|
2080 cab, with two seats and a small bed and A/C, with air deflector, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7600x2500x3600 |
Wheel base (mm) | 4200 | |
Wheel track (front/rear) (mm) | 1845/1796 | |
Approach/Departure angle(°) | 27/20 | |
Weight in KGS | Tare Weight | 4775 |
payload | 10000 | |
Front axles loading capacity | 1x3200 | |
Rear axles loading capacity | 1x8000 | |
Max. driving speed（km/h） | 95 | |
Engine | Brand | Cummins |
Model | ISF3.8s4168 | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 168 | |
Emission standard | Euro Ⅱ | |
Gearbox | DC6J65TC, 6 Forwards gear & 1 reverse gear | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 120 | |
Tire | 8.25R20 tire, 7 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Box size suggested | 5200x2300x550mm | |
