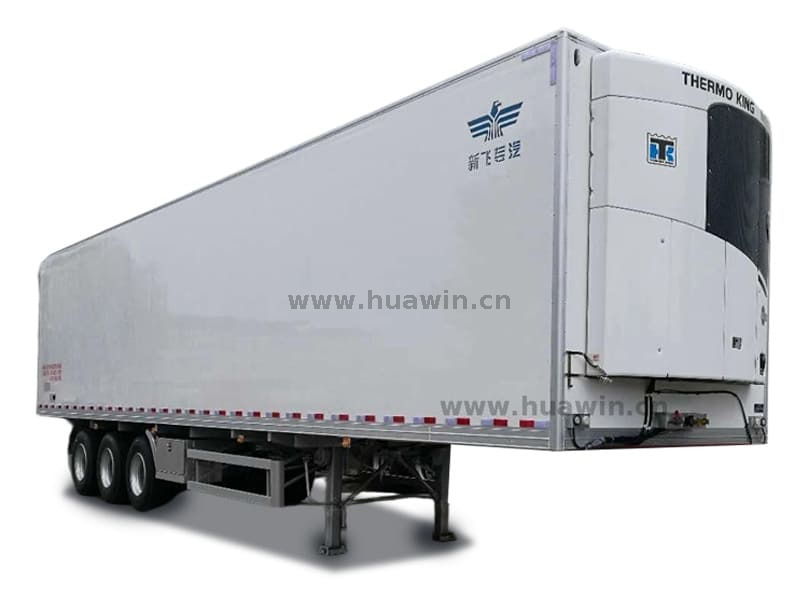

SINOTRUK 3 Axles Chill Food Transportation Trailer

Refrigerator trailer with independent power pack is a kind of semi-trailer with refrigerating device . Independent refrigeration unit means that the refrigeration unit has an independent power source. The middle layer is made of thermal insulation material, mainly using polyurethane foam material. Use high-strength glue on the four sides to glue the glass steel plate and the polyurethane foam material together to form a closed plate. Good heat preservation performance, beautiful appearance, light overall weight, high strength, no leakage, long service life, reaching the national A-level standard; customers can follow the actual use, the temperature can reach minus 18 degrees to minus 28 degrees,
The refrigerated semi-trailer can improve the comprehensive economic benefits of road transportation due to its large load capacity.
Color:
Availability:
Quantity:
  • SGZ
  • SINOTRUK

refrigerated trailer


DIMENSIONS

Tare Weight

9630 kg



Overall Length

12500 mm

Overall Width

2650 mm

Overall height

4000 mm

Payload

30000 kgs

SPECIFICATIONS


I Beam & chassis

Heavy duty and extra durability designed I beam; welded by automatic Submerged-Arc processes.

Axle

3 axles. FUWA brand, 13 ton loading capacity.

Suspension

Mechanical suspension

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Tire

315/80R22.5, including one spare tire  in total 13 pieces

Spare Tire

One set of spare tire including a carrier

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Box

Ø Outer Size (length*width*height): 12100*2400*2400mm,

Ø High density polyurethane for insulation

Ø Thickness of 95mm

Ø Without side door

Ø With Aluminum rails

Accessories

One standard tool box

Cooling system

Ø America brand Carrier Vector 1550  independent cooling system  with backup electric power system.

Ø Road Refrigerating capacity: 14995W at 0℃~30℃, 8285W at

-20℃~30℃

Ø Backup electrial refrigerating capacity: 13200W at 0℃~30℃, 7360W at -20℃~30℃

Ø Working temperature: - 20℃ ~ +30℃

Ø Compressor: ZF19VE-164,

Ø Refrigerating fluid volume: 5kg

Ø Air volume: 5700m³/h
