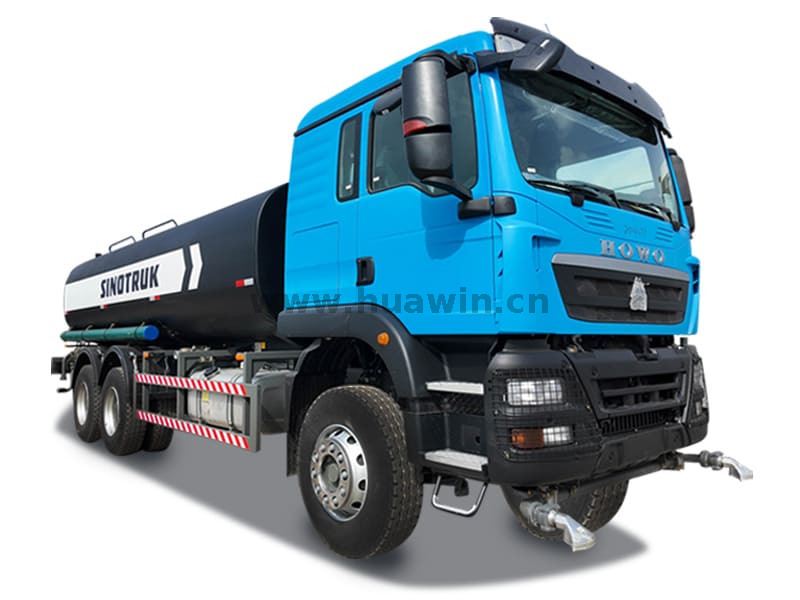

HOWO Water Sprinkler TX 6X4 Truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

Sinotruk HOWO Water Sprinkler Truck TX 6×4 is based on the chassis of HOWO TX series 6×4 heavy-duty trucks, which has strong carrying capacity and good stability; it adopts three-axle design (6×4 drive), which has good passability and adapts to a variety of road conditions; and it is suitable for heavy-duty sprinkler operation because of the sturdy structure of the large beam and strong torsion-resistant performance. Large-capacity water tanks are commonly available in the volume range of 15,000 to 25,000 liters;

The Sinotruk HOWO Water Sprinkler Truck TX 6×4 has a multifunctional sprinkler unit with front and rear spray: for road cleaning; side spray: for watering landscaping; high level shower/rear platform lance: hand-held operation for washing trees, guardrails; high-pressure water cannons: rotatable through 360° with a range of ≥28 meters; adjustable spray or column water flow, and simple firefighting. Function.

Applications:

HOWO Water Sprinkler Truck-TX-6×4 is commonly used for road cleaning: mainly used for sprinkling water to clean and reduce dust on roads such as city main roads and highways. Spraying to reduce temperature: Sprinkle water to reduce temperature for roads and squares in the hot season. Greening maintenance: daily watering of urban green belts, flower beds and lawns. Dust reduction at construction sites: effectively suppressing dust at construction sites and improving air quality.

Ceb：

HOWO Water Sprinkler TX 6X4 Truck The cab features a high-roof, wide design, providing ample space and a wide field of view to ensure comfort and fatigue relief during long-distance driving. It is equipped with a four-point fully floating suspension and air-suspension seats, significantly improving driving smoothness and reducing the impact of road vibrations on the driver. The central control area integrates devices such as a radio, air conditioning, and in-vehicle multimedia, offering convenient operation and meeting the needs of modern truck driving.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

HOWO Water Sprinkler  TX 6X4 Truck
Basic Configuration	English gauges, fire extinguisher, reverse buzzer, front and rear headlight protectors, metal bumper protection grille, one additional stage of Parker Coarse Filter
Core Configuration	Drive Axle	MCX16ZG Dual Rear Axle(Drum)
	Frame	Double-layer frame(8+8/300)
	Suspension	Front and rear reinforced multi-leaf springs(10/12)
	Transmission	HW19710 gearbox + HW70 flange pickup
	Engine	WD615.47 engine
	Cab	TX-F cab
Compulsory	Tires	315/80R22.5 tires(mixed tread/18PR)
	Ratios	5.451
	Bumper	High Bumper(all metal)
	ABS	Without ABS
	Front Axle	VGD95 front axle (drum)
	Steering	Right hand steering
Selectable	Air intake system	Engineering air intake system (oil filter)
	Cabin	Classic Edition
	Fuel tank	300L Fuel Tank
	Cabin Seat	Primary Airbag + Secondary Lightweight Seat
	Air conditioning unit	Heating and cooling air conditioning
	Engine	EVB and 71 degree thermostat
	Battery	165AH battery
	Exhaust system	Standard exhaust system
	Wheel Option	Front and rear reinforced wheels
Upper Garment	20 square sprinkler: carbon steel Q235 material, simplified body 6mm, head 6mm, bulkhead 4mm, through the warehouse, two upper tank mouth, Weilong 60/90 water pump, with front spray, rear sprinkler, rear platform cannon, the rest of the standard equipment

Features of sprinkler systems：

High-efficiency multi-functional sprinkler system

Equipped with front spray, rear spray, side spray, and high-pressure water cannon, it can be used for road washing, landscaping watering, dust suppression, and other purposes, and is suitable for use in a variety of scenarios.

Large capacity water tank design

The water tank capacity is typically 10,000 to 20,000 liters (depending on the specific configuration), which meets the needs of long-term watering operations and reduces the frequency of refilling.

Manual + electronic control dual system

The sprinkler system supports dual control via electronic control inside the cab and manual operation outside the vehicle, offering flexible and convenient use and improving work efficiency.
