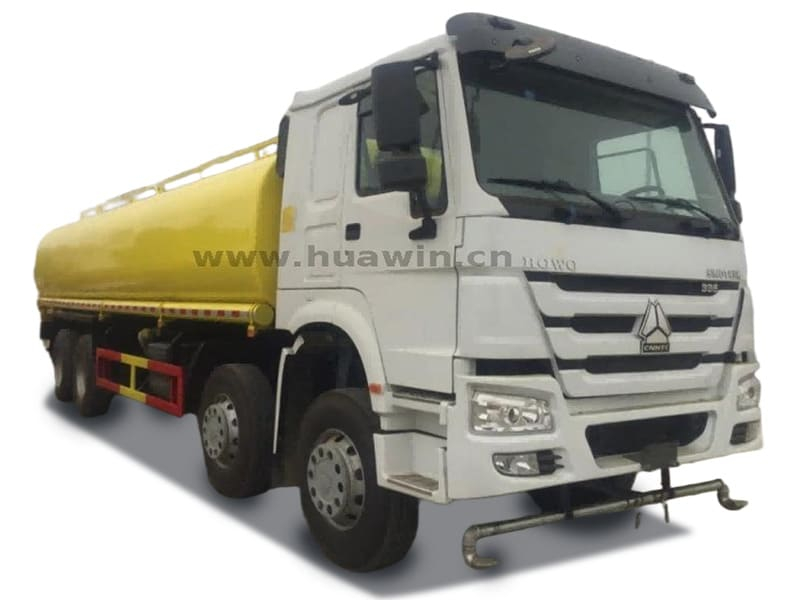

HOWO 6x4 Sprinkler Spray Water Tank Bowser Truck

SINOTRUK 6x4 water truck , also known as water supply trucks and water tank trucks, have transportation and water supply functions.It can hold hot water and drinking water to meet the needs of different users in different environments. Water tank materials are available in steel, stainless steel, or aluminum. Each water tanker has its own different pump system according to the purpose of the water being transported. The water tank is made of high-performance steel plate. The water tank cover can be opened and closed freely and can be used to add water to the water tank.The control of each function adopts electric control, one-button switch without manual. It is provided with a manhole on the upper end of the water tank,which can be added water directly or used for maintenance personnel to access the tank.
Availability:
Quantity:
  • ZZ1257N4647

  • SINOTRUK HOWO

SINOTRUK HOWO 6X4 Water Tanker Truck



Specifications


SINOTRUK HOWO 6x4 Water Truck 20 cbm

Driving  Type

Left Hand Driving (Right  Hand Driving is optional)

Cabin

HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Emission Standard: Euro 2 (Euro 3-Euro 6 is optional)

6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse power: 371HP (336HP, 380HP, 420HP is optional)

Transmission

HW19710, 10 forward gears and 2 reverse gears.

Steering

ZF power steering, hydraulic steering with power assitance

Front  Axle

HF9, 1x9000  KGS

Steering with doubleT-cross section beam

Rear  Axle

HC16, 2x16000  KGS

Pressed axle housing,  central single reduction with hub reduction and with differential locks between  wheels and axles.

Ratio: 4.42

Propeller  Shaft

Double universal joint  propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile  parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all  cold riveted cross members

Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual  circuit compressed air brake

Parking brake (emergency  brake): spring energy, compressed air operating on front shaft and rear  wheels

Auxiliary brake: engine  exhaust brake

Electrics

Operating voltage: 24 V,  negative grounded

Starter: 24 V, 5.4  Kw

Alternator: 3-phase, 28  V, 1500 W

Batteries: 2 x 12 V, 165  Ah

Cigar-lighter, horn,  headlamps, fog lights, brake lights, indicators and reverse  light

Tires

315/80R22.5,  tubeless tires with one spare tire.

Optional: 12.00R20, radial tires.

Tank capacity

20,000L, compartments optional

Body steel Material

Q235. End plate thickness:6mm, tanker body thickness:5mm

Accessories

2 nos of duck-billed sprinklers(in front),2 nos of sprinklers(at rear),2 nos of 2.5" pressure water discharge,1 nos of 3" water sucking mouth,1 nos of high shooting spray rod,2 nos of 3" 3m pipe,
