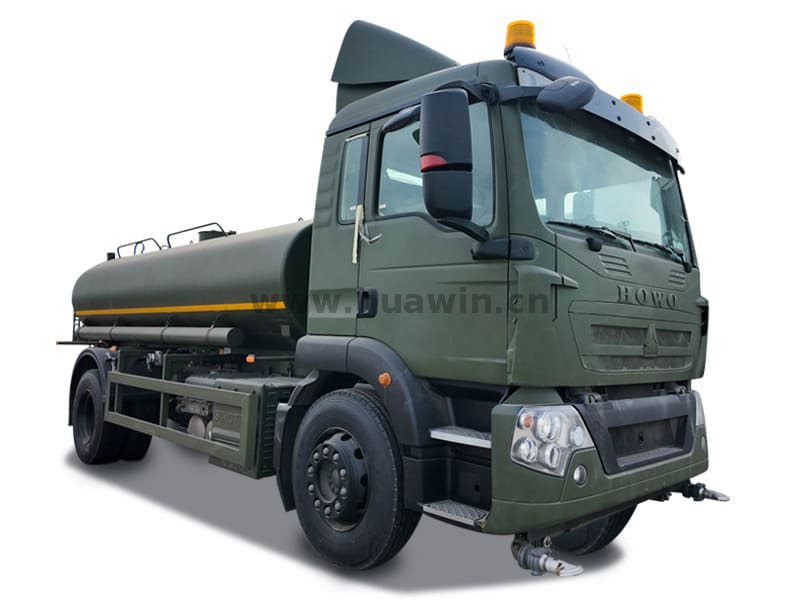

Sinotruk Howo Water Sprinkler TX 4×2 truck

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The Sinotruk Howo Water Sprinkler TX 4×2 truck features a compact design and excellent maneuverability, thanks to its 4×2 drive configuration, short wheelbase, and small turning radius, making it particularly suitable for operations in narrow areas such as urban streets, industrial parks, and residential communities. Based on the mature HOWO TX series chassis platform, it offers robust load-bearing capacity and a stable chassis, making it ideal for medium-to-short-distance, high-frequency water sprinkling tasks.

、

The Sinotruk Howo Water Sprinkler TX 4×2 truck has a powerful drive system, as it is equipped with a high-performance diesel engine manufactured by Weichai or China National Heavy Duty Truck Group. It delivers stable power output and low fuel consumption, and meets national emission standards. It is easy to operate and supports both in-cab electronic control and manual control outside the cab, making it suitable for different working conditions.

Applications:

HOWO Water Sprinkler-TX-4×2 is commonly used in municipal sanitation operations, sprinkling, dust reduction, cleaning and rinsing of city roads, main roads and sidewalks; effectively alleviating the dust problem in the hot and dry environment in summer.

ceb:

The cab of the Sinotruk Howo Water Sprinkler TX 4×2 truck features a streamlined design with low wind resistance, a modern appearance, and a combination of practicality and visual appeal. The cab offers a wide field of view, equipped with a large windshield and rearview mirror system, significantly improving driving safety and blind spot control.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

Sinotruk Howo Water Sprinkler TX 4×2 truck
Basic Configuration	French instrumentation, DTCO1381 drive recorder, E-mark certification general requirements, the entire vehicle under the front protection, cruise control (Europe II), the main and secondary seat belt alarm, front and rear headlamps protective cover, metal bumper protection grille, speed limit of 90km / h, self-adjusting arm + wear and tear alarm, the gas tank three straps, the battery box anti-theft device, split fuel tank anti-theft
Core Configuration	Drive Axles	MCX16ZG self-aligning arm single rear axle(drum)
	Chassis	Double-layer frame(8+5/300)
	Suspension	Front and rear standard version multi-leaf springs(10/9+6)
	Transmission	HW19709XST gearbox + HW70 flange pickup
	Engine	WP10.300E22
	Cab	TX-F cab
Compulsory	Tires	315/80R22.5 tires(front longitudinal tread/rear block tread/18PR/spare rear tire)
	Ratios	4.803
	Bumper	High Bumper(Full Metal)
	ABS	ABS(4S/4M)
	Front Axle	VGD71S self-aligning arm front axle(drum)
	Steering	Bosch steering wheel
Selectable	Air conditioning unit	Heating and cooling air conditioning
	Manual electric lift	Manual lift
	Intercooler protection device	Intercooler protection device
	Electric Battery	165AH Battery
	Air intake system	Road version air intake system
	Driver's cab	Classic
	Fuel tank option	400L Fuel Tank
	Exhaust system	Standard Edition
	Wheels	Normal Wheels
Upper Garment	10 square sprinkler: carbon steel Q235 material, simplified body 6mm, head 6mm, partition 4mm, through the warehouse, two upper tank mouth, Weilong 60/90 water pump, with front spray, rear sprinkler, rear platform cannon, the rest of the standard equipment

Key features of the sprinkler system：

Multifunctional spraying structure

Equipped with front spray, rear spray, side spray, and high-pressure water cannon, it offers multiple functions such as road washing, landscaping watering, dust suppression, and emergency firefighting, and is suitable for a variety of working environments.

Water cannon has long range and flexible rotation

The high-position water cannon can rotate 360° and can be adjusted to produce a column or mist. It has a maximum range of 20 to 30 meters and can be used for high-altitude water sprinkling or firefighting assistance.

Even watering, wide coverage

The spray width can reach 10 to 15 meters, with uniform water flow and a large coverage area, making it suitable for cleaning urban roads or factory areas.
