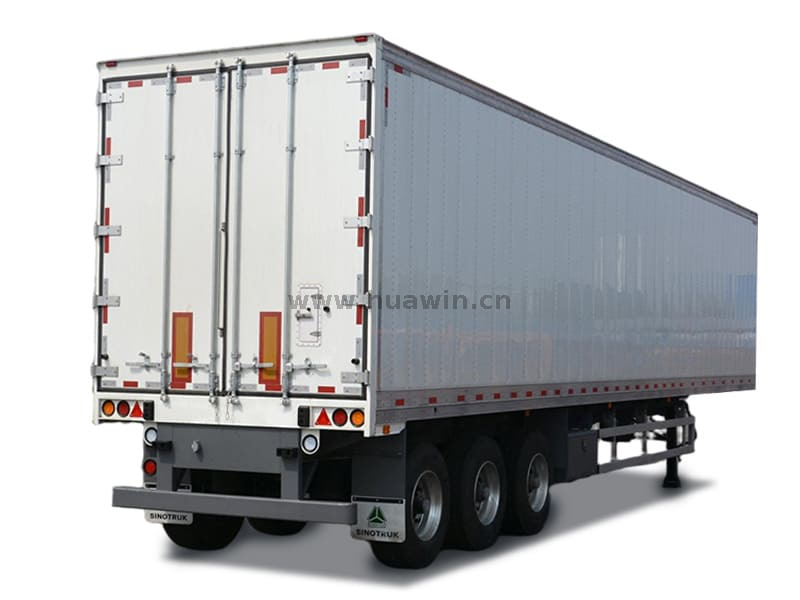

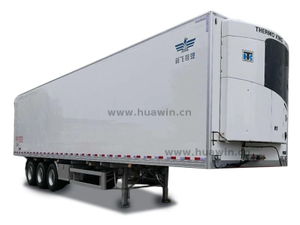

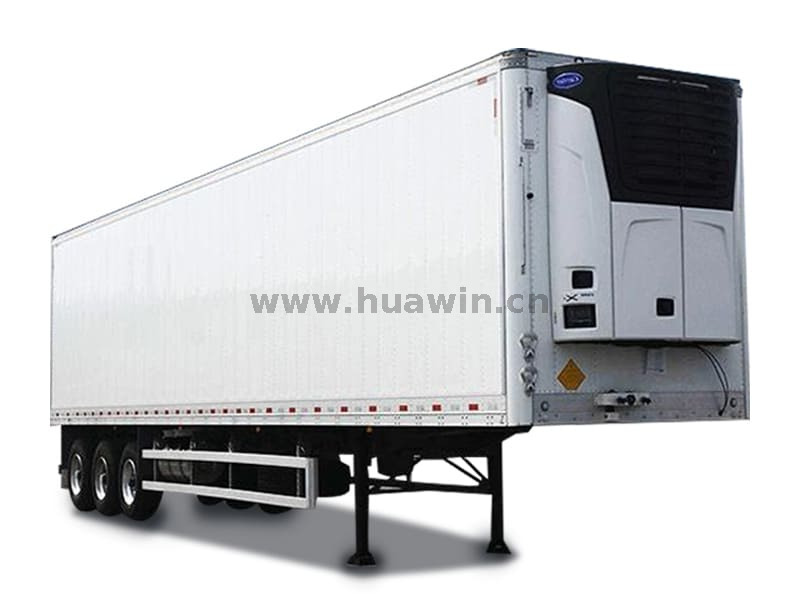

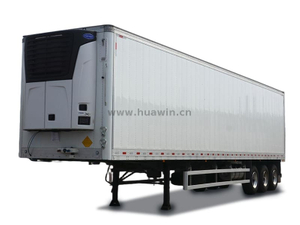

3 Axles Refrigerated Semi Trailer

Products Showcases:

● One of the biggest and best truck and trailer manufacturer in China

● 30 years of experience in Special Vehicle

● Build a strict QC team to guarantee the quality

● Fast delivery time

● 12-24 months long guarantee time assurance

Features:

The 3-axle 40-foot refrigerated semi-trailer features an efficient insulation structure: the body is constructed with a high-density polyurethane insulation layer, providing excellent thermal performance; the body panels are made of a multi-layer composite structure combining fiberglass and aluminum sheets, effectively blocking heat transfer; it can maintain an internal temperature range of -20°C to +20°C (depending on the refrigeration unit's power).re range of -20°C to +20°C (depending on the refrigeration unit's power).

3-Axle 40FT Refrigerated Semi Trailer also features strong load-bearing capacity and structural stability: the main beams are welded from high-strength steel (such as Q345) for high rigidity and fatigue resistance; the three-axle design ensures balanced load distribution, making it suitable for heavy cargo cold chain transportation (such as meat, seafood, vegetables, etc.); it comes standard with air suspension or mechanical suspension to adapt to different road conditions;

Applications:

The Refrigerated semi-trailer is commonly used for fresh food transportation: fruits, vegetables, meat, poultry, dairy products, eggs, etc. The Refrigerated semi-trailer is also used for the transportation of foodstuffs. Transportation of pharmaceuticals: vaccines, plasma, insulin, biological products, etc.; Transportation of chemical and industrial raw materials: some temperature-sensitive chemicals, resins, inks, glues, etc.

Specification:

We are a professional manufacturer of various types of vehicles, including tractor trucks, dump trucks, semi-trailers, and special-purpose vehicles. Our trucks are very popular in Southeast Asia, the Middle East, Africa, and South America, thanks to their high quality and low prices.

3 Axles  40FT Refrigerated Semi Trailer
Configuration	Deadweight	8,800 (+/- 5%)
	Front wall	101.6mm
	Roof	100mm
	Floor	63.5 mm
	Longitudinal beams	Submerged arc welding beam reinforcement, sub beam reinforcement
	Box insulation	BASF polyurethane foam
	Side panels	76.2 mm
	Tire	type: 385/65R22.5
	Aluminum Rims	Type: 11.75-22.5
	Axles	12T*3 sets
	Suspension	Triple Axis BPW Air Suspension
	Outriggers	jost e100 jost e100
	Traction Pins	2 JOST ,exchangeable JOST
	Brake System	Pneumatic Brake, Dual Chambers, Wilburco Brake Valve
	Cold engine	carrier Vector 1550 with power backup
	Operating temperature	Temperatures down to -18°C
	Electrical system	24V, LED lamps
	Paint	Frame, primer + top coat, polyurethane paint
	Spare tire carrier	2 sets per vehicle
	Toolboxes	1 piece
Others	No warranty for cold engine, Heavy Duty Truck logo on the tail,without phone, without any CIMC logo,LED light with metal anti-theft lampshade,rear door hinge and bolt mounting reinforcement,cold engine fuel tank mounting bracket reinforcement,fuel tank cover with lock

Refrigeration System:

3-Axle 40FT Refrigerated Semi-Trailer Optional imported refrigeration units (e.g., Thermo King), featuring precise temperature control and high durability; can also be customized for multi-temperature zones (front refrigeration, rear freezing) according to customer requirements; Supports a dual-energy system (electricity + diesel), suitable for various operational scenarios (such as ports, urban delivery, etc.); features ergonomic and safety designs: internal LED lighting for nighttime loading/unloading; rear doors with seals and locking mechanisms to prevent cold air leakage; equipped with a temperature recorder for real-time monitoring and recording of interior temperature data;
